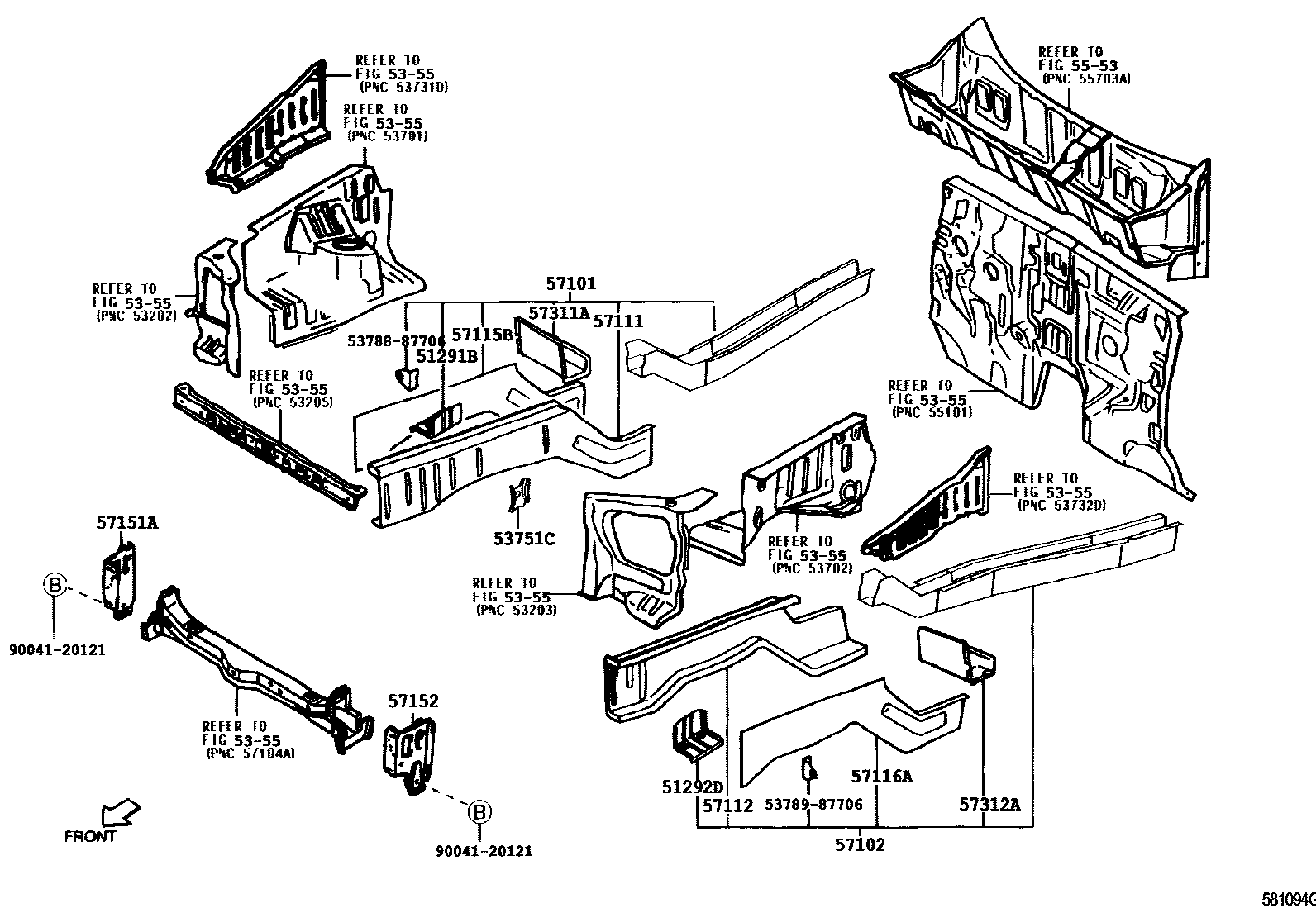

Toyota CAMI — FRONT FLOOR PANEL & FRONT FLOOR MEMBER

0001 1 0002 1 0003 1 0004 1

51291BBRACKET, SUSPENSION MEMBER SUPPORT, RH

main51291-87401iJ100199905-200005

51292DBRACKET, SUSPENSION MEMBER SUPPORT, LH

main51291-87401iJ100199905-200005

5355

53751CBRACKET, CHARCOAL CANISTER MOUNTING

main53751-87401iJ102,122200005

main53751-87703iJ100199905-200005

5553

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-87402iJ100199905-199912

main57101-87404iJ100200001-200005

sub57101-87409

main57101-87405iJ102,122..5F200005

main57101-87406iJ102,122..4AT200005

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-87402iJ100199905-200005

sub57102-87406

main57102-87404iJ102,122200005

57111MEMBER, FRONT SIDE, RH

main57027-87401iJ102,122200005

main57111-87402iJ100199905-199912

main57111-87403iJ100200001-200005

sub57111-87405

57112MEMBER, FRONT SIDE, LH

main57028-87401iJ102,122200005

main57112-87402iJ100199905-200005

sub57112-87404

57115BPLATE, FRONT SIDE MEMBER, NO.1 RH

main57113-87402iJ10#,122199905

57116APLATE, FRONT SIDE MEMBER, OUTER LH

main57114-87402iJ10#,122199905

57151AREINFORCEMENT, FRONT SIDE MEMBER, NO.1 RH

main57016-87401iJ100199905-199912

main57016-87403iJ10#,122200001

57152REINFORCEMENT, FRONT SIDE MEMBER, NO.1 LH

main57017-87401iJ100199905-199912

main57017-87403iJ10#,122200001

57311AOUTRIGGER, FRONT, NO.1 RH

main57311-87403iJ10#,122199905

57312AOUTRIGER, FRONT, NO.1 LH

main57312-87402iJ10#,122199905

5378887706BRACKET, AIR CLEANER INLET, NO.6

main53788-87706

5378987706SPACER, JACK CARRIER

main53789-87706

9004120121

main90041-20121

18 parts on this diagram · 4 diagrams in section
