Toyota CAMI — FRONT FENDER APRON & DASH PANEL

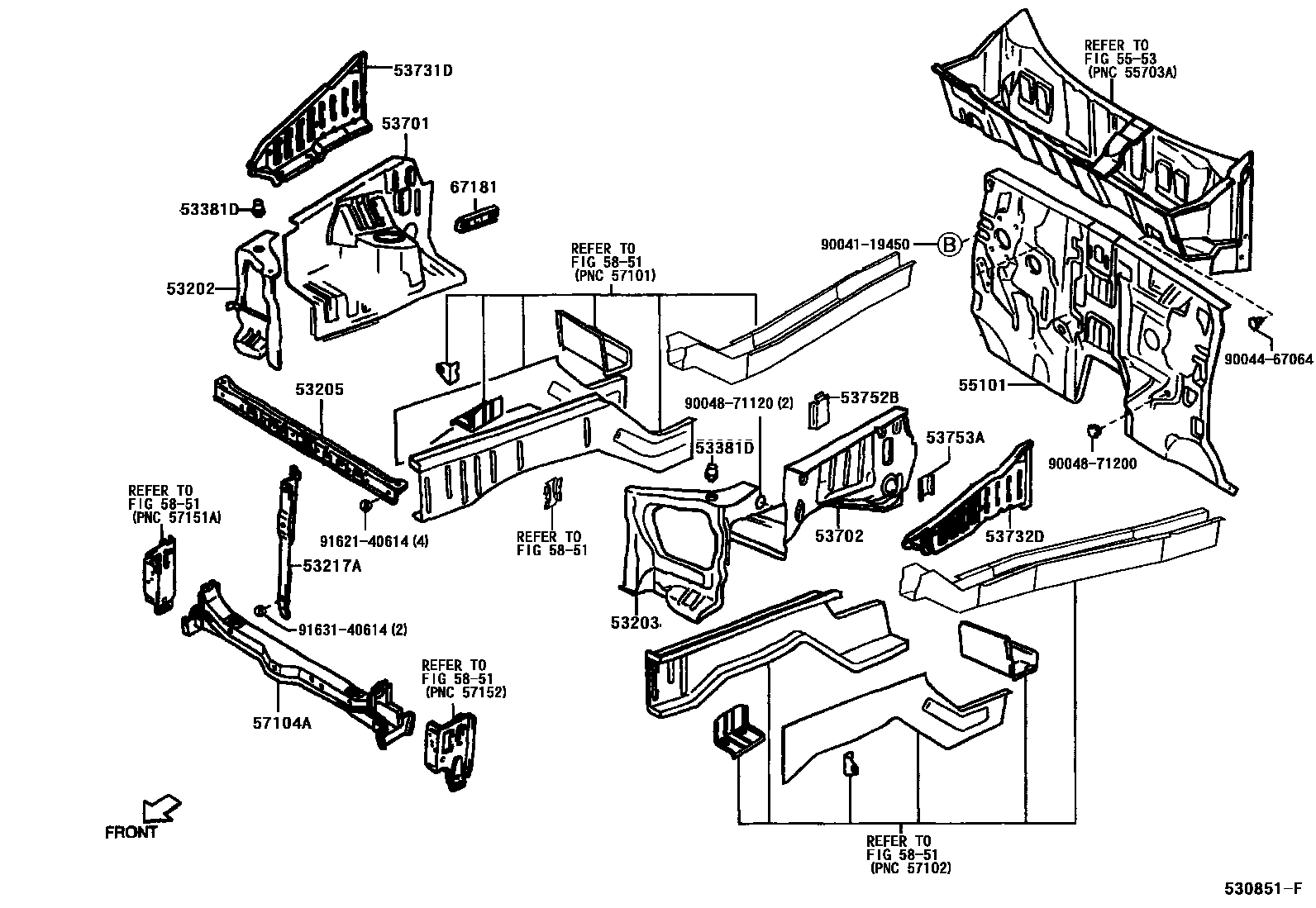

Parts diagram

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-87401i199905-200005

main53202-87402i200005-200110

main53202-87403i200111

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-87401i199905-200005

main53203-87402i200005

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-87403i199905

53217ABRACE, HOOD LOCK SUPPORT

main53215-87401i199905-200110

main53215-87402i200111

53381DBUMPER, HOOD TO FRONT SHROUD

main53381-87701×2i199905

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-87408i199905

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-87405i199905-200005

main53702-87411i200005

53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH

main53731-87401i199905

53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH

main53732-87401i199905

53752BBRACKET, WASHER TANK MOUNTING

main53752-87209i199905

53753ARETAINR, WASHER TANK

main53753-87401i199905

55101PANEL SUB-ASSY, DASH

main55101-87417i199905-200005

main55101-87418i199905-200005

main55101-87427i200005-200108

main55101-87428i200005-200108

main55101-87449i200109

main55101-87450i200109

5553COWL PANEL & WINDSHIELD GLASS

→ Go to FIG 55-53

57104AMEMBER SUB-ASSY, FRONT CROSS

main57104-87402i199905

5851FRONT FLOOR PANEL & FRONT FLOOR MEMBER

→ Go to FIG 58-51

67181RETAINER, DOOR HINGE

main67181-87201i199905

9004119450

main90041-19450

9004467064

main90044-67064

9004871120

main90048-71120

9004871200

main90048-71200

9162140614

main91621-40614

9163140614

main91631-40614

22 parts on this diagram · 3 diagrams in section

FRONT FENDER APRON & DASH PANEL for Toyota CAMI

This section contains 28 genuine Toyota parts for the FRONT FENDER APRON & DASH PANEL system of the Toyota CAMI. Key components include: SUPPORT SUB-ASSY, RADIATOR, RH, SUPPORT SUB-ASSY, RADIATOR, LH, SUPPORT SUB-ASSY, RADIATOR, UPPER, BRACE, HOOD LOCK SUPPORT, SEAL, RADIATOR SUPPORT.
