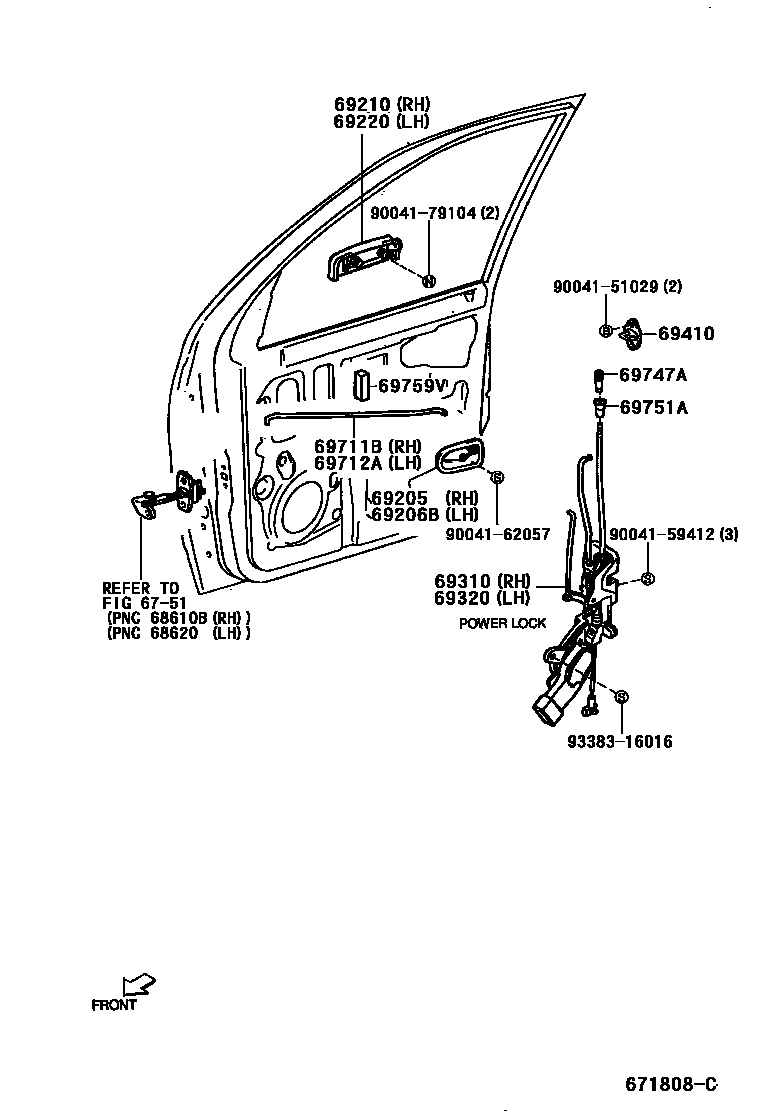

Toyota CAMI — FRONT DOOR LOCK & HANDLE
6751FRONT DOOR PANEL & GLASS
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
GRAY,TRIMS
GRAY,TRIMS
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
GRAY,TRIMS
GRAY,TRIMS
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69310LOCK ASSY, FRONT DOOR, RH
69320LOCK ASSY, FRONT DOOR, LH
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH
69712ALINK, FRONT DOOR LOCK REMOTE CONTROL, LH
69747ABUTTON, DOOR LOCKING(FOR FRONT DOOR)
GRAY,TRIMS
69751AHOLDER, DOOR LOCKING(FOR FRONT DOOR)
GRAY,TRIMS
GRAY,TRIMS
69759VSILENCER, FRONT DOOR LOCK LINK
9004151029
main90041-51029
9004159412
main90041-59412
9004162057
main90041-62057
9004179104
main90041-79104
9338316016
main93383-16016
18 parts on this diagram · 1 diagram in section
FRONT DOOR LOCK & HANDLE for Toyota CAMI
This section contains 18 genuine Toyota parts for the FRONT DOOR LOCK & HANDLE system of the Toyota CAMI. Key components include: FRONT DOOR PANEL & GLASS, HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH, HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH, HANDLE ASSY, FRONT DOOR, OUTSIDE RH, HANDLE ASSY, FRONT DOOR OUTSIDE, LH.
