Toyota CAMI — FRONT AXLE HUB

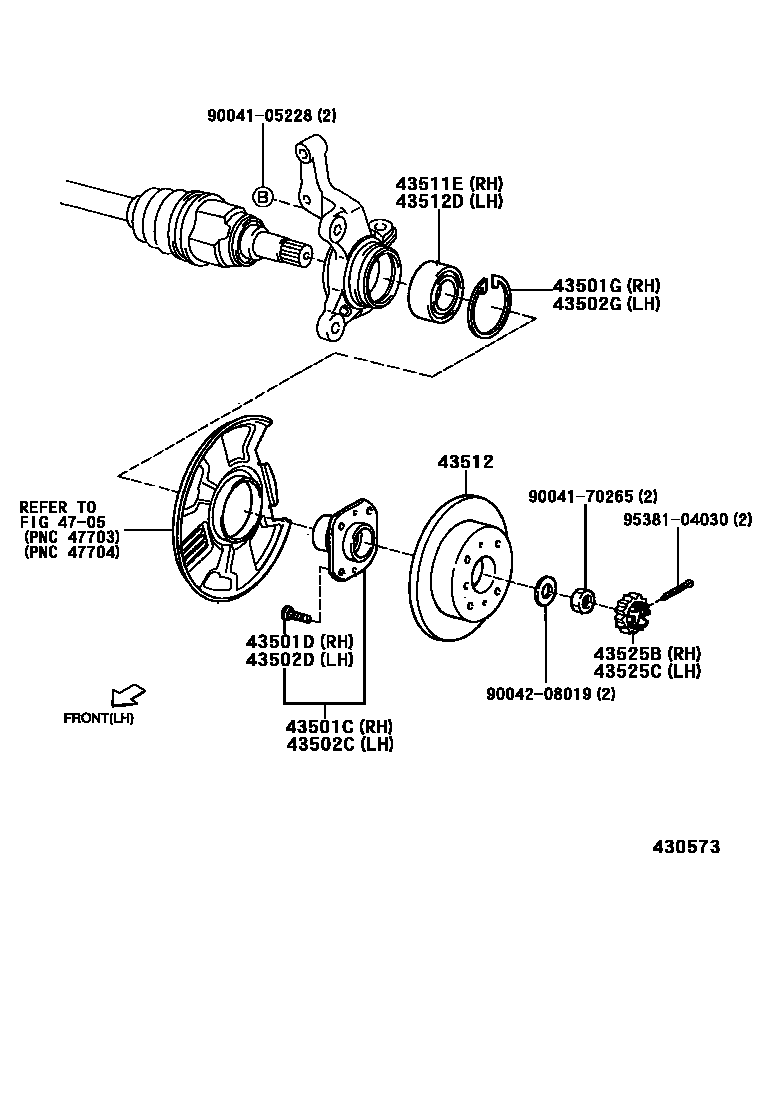

Parts diagram

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-87401i199905

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90049-12055×5i199905

43501GRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90045-21111i199905

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-87401i199905

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90049-12055×5i199905

43502GRING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90045-21111i199905

43511EBEARING (FOR FRONT AXLE HUB RH)

main90043-63213i199905

main90043-63214i199905

43512DISC, FRONT

main43512-87402×2i199905

43512DBEARING (FOR FRONT AXLE HUB LH)

main90043-63213i199905

main90043-63214i199905

43525BCAP, FRONT WHEEL ADJUSTING LOCK, RH

main43525-87703i199905

43525CCAP, FRONT WHEEL ADJUSTING LOCK, LH

main43525-87703i199905

4705FRONT DISC BRAKE CALIPER & DUST COVER

→ Go to FIG 47-05

9004105228

main90041-05228

9004170265

main90041-70265

9004208019

main90042-08019

9538104030

main95381-04030

16 parts on this diagram · 2 diagrams in section

FRONT AXLE HUB for Toyota CAMI

This section contains 17 genuine Toyota parts for the FRONT AXLE HUB system of the Toyota CAMI. Key components include: SPINDLE SUB-ASSY, STEERING KNUCKLE, HUB SUB-ASSY, FRONT AXLE, RH, BOLT, HUB (FOR FRONT AXLE RH), RING, HOLE SNAP (FOR FRONT AXLE HUB RH), HUB SUB-ASSY, FRONT AXLE, LH.
