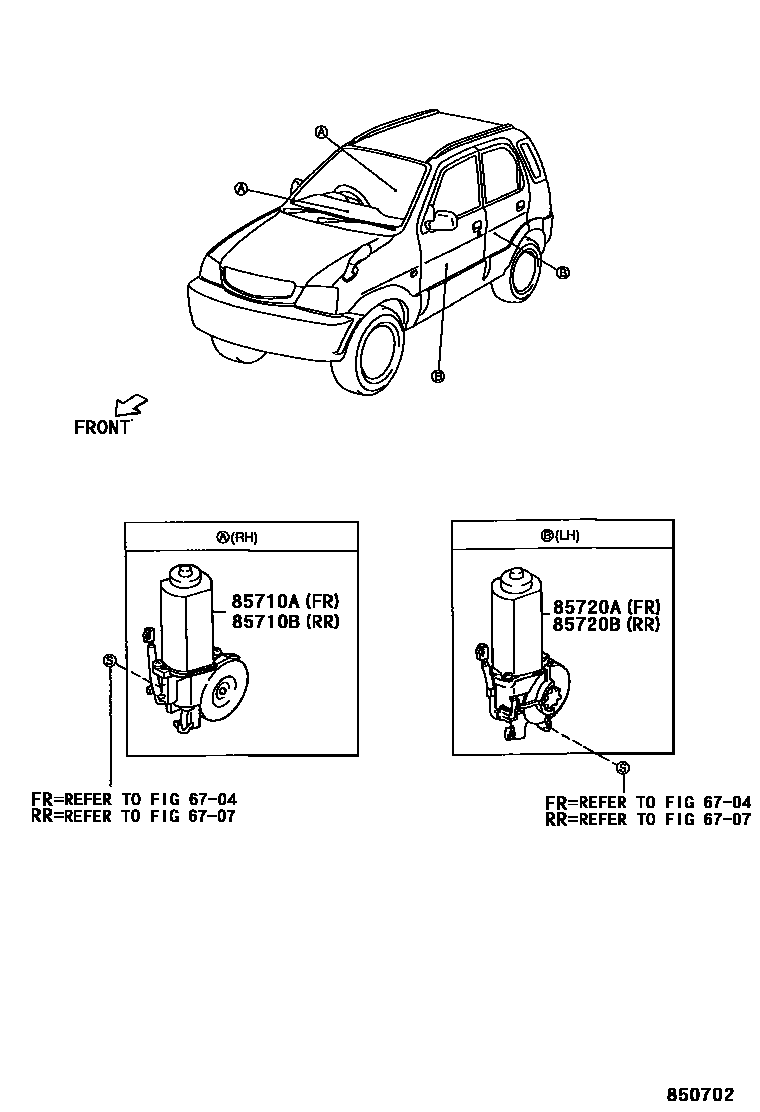

Toyota CAMI — DOOR MOTOR & DOOR SOLENOID

6704FRONT DOOR WINDOW REGULATOR & HINGE

→ Go to FIG 67-04

6707REAR DOOR WINDOW REGULATOR & HINGE

→ Go to FIG 67-07

85710AMOTOR ASSY, POWER WINDOW REGULATOR, FRONT RH

main85710-87401i199905-200112

main85710-87402i200112

85710BMOTOR ASSY, POWER WINDOW REGULATOR, REAR RH

main85730-87402i199905

85720AMOTOR ASSY, POWER WINDOW REGULATOR, FRONT LH

main85720-87401i199905

85720BMOTOR ASSY, POWER WINDOW REGULATOR, REAR LH

main85740-87402i199905

6 parts on this diagram · 1 diagram in section

DOOR MOTOR & DOOR SOLENOID for Toyota CAMI

This section contains 6 genuine Toyota parts for the DOOR MOTOR & DOOR SOLENOID system of the Toyota CAMI. Key components include: FRONT DOOR WINDOW REGULATOR & HINGE, REAR DOOR WINDOW REGULATOR & HINGE, MOTOR ASSY, POWER WINDOW REGULATOR, FRONT RH, MOTOR ASSY, POWER WINDOW REGULATOR, REAR RH, MOTOR ASSY, POWER WINDOW REGULATOR, FRONT LH.
