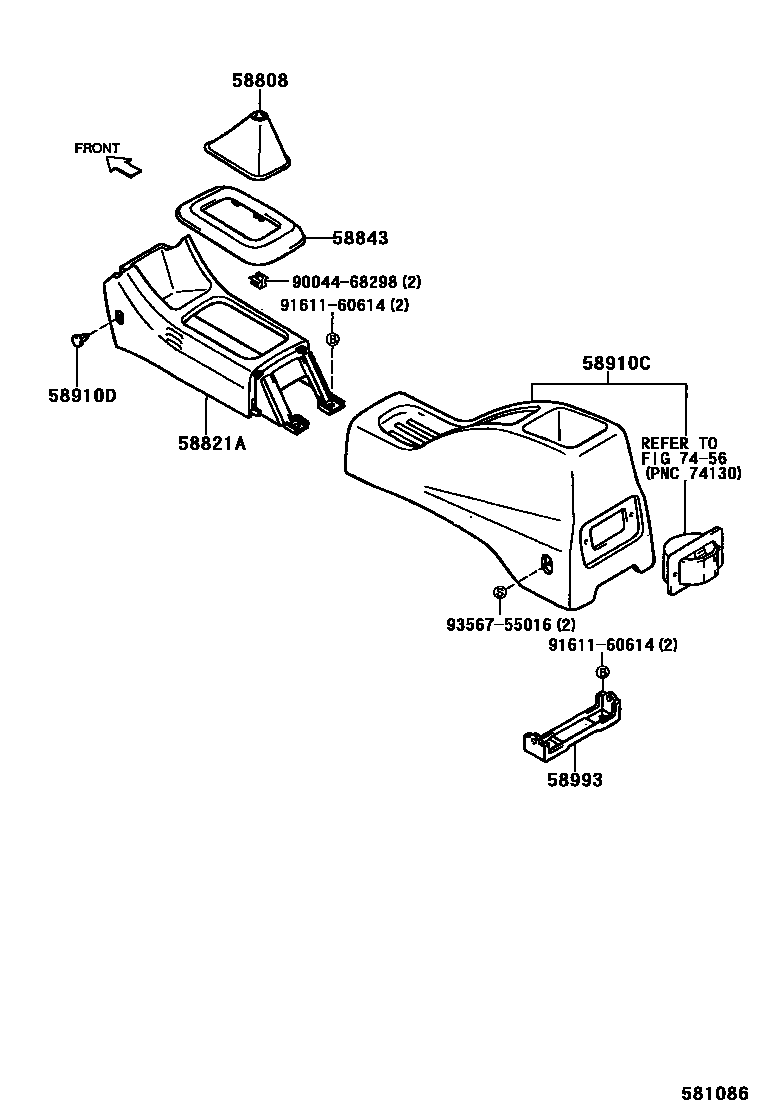

Toyota CAMI — CONSOLE BOX & BRACKET

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-87401-01iJ10#,122..5F199905

BLACK,TRIMS

58821APANEL, CONSOLE

main58821-87401-03iJ100199905-200005

GRAY,TRIMS

main58821-87401-13iJ102,122200005

GRAY,TRIMS

58843BEZEL, SHIFTING HOLE

main58843-87401-03iJ100..4AT199905-200005

GRAY,TRIMS

main58843-87401-13iJ102,122..4AT..EFI200005

GRAY,TRIMS

main58843-87402-03iJ102..TBO200008

SILVER,TRIMS

58910CBOX ASSY, CONSOLE, REAR

main58910-87401-03iJ100199905-200005

GRAY,TRIMS

main58910-87401-13iJ102,122200005

GRAY,TRIMS

58910DCLIP(FOR CONSOLE BOX)

main90044-68291-03×2iJ100199905-200005

GRAY,TRIMS

main90044-68291-13×2iJ102,122200005

GRAY,TRIMS

58993BRACKET, CONSOLE BOX MOUNTING, REAR

main58993-87401iJ102,122200011

main58993-87705iJ10#,122199905-200011

7456

9004468298

main90044-68298

9161160614

main91611-60614

9356755016

main93567-55016

10 parts on this diagram · 1 diagram in section
