Toyota CAMI — ARMREST & VISOR

6452ROOF HEADLINING & SILENCER PAD

→ Go to FIG 64-52

74310VISOR ASSY, RH

main74310-87410-03i199905-200005

GRAY,TRIMS

main74310-87413-03i200005

GRAY,TRIMS

74320VISOR ASSY, LH

main74320-87404-03i199905

GRAY,TRIMS

main74320-87408-03i199905

74348HOLDER, VISOR

main74348-87103-23×2i199905

GRAY,TRIMS

74603GRIP SUB-ASSY, ASSIST, FRONT

main74603-44010-03×2i200005

GRAY,TRIMS

74610AGRIP SUB-ASSY, ASSIST

main74611-87205-03×3i199905

GRAY,TRIMS

74617BPLUG, DOOR ASSIST GRIP

main74617-28080-03×2i200005

GRAY,TRIMS

74811DHANDLE, DOOR PULL

main74811-87704-03×4i199905-200005

GRAY,TRIMS

main74813-97201-23×2i200005

main74814-97201-23×2i200005

9004159401

main90041-59401

9004168070

main90041-68070

9004168071

main90041-68071

9354055012

main93540-55012

12 parts on this diagram · 1 diagram in section

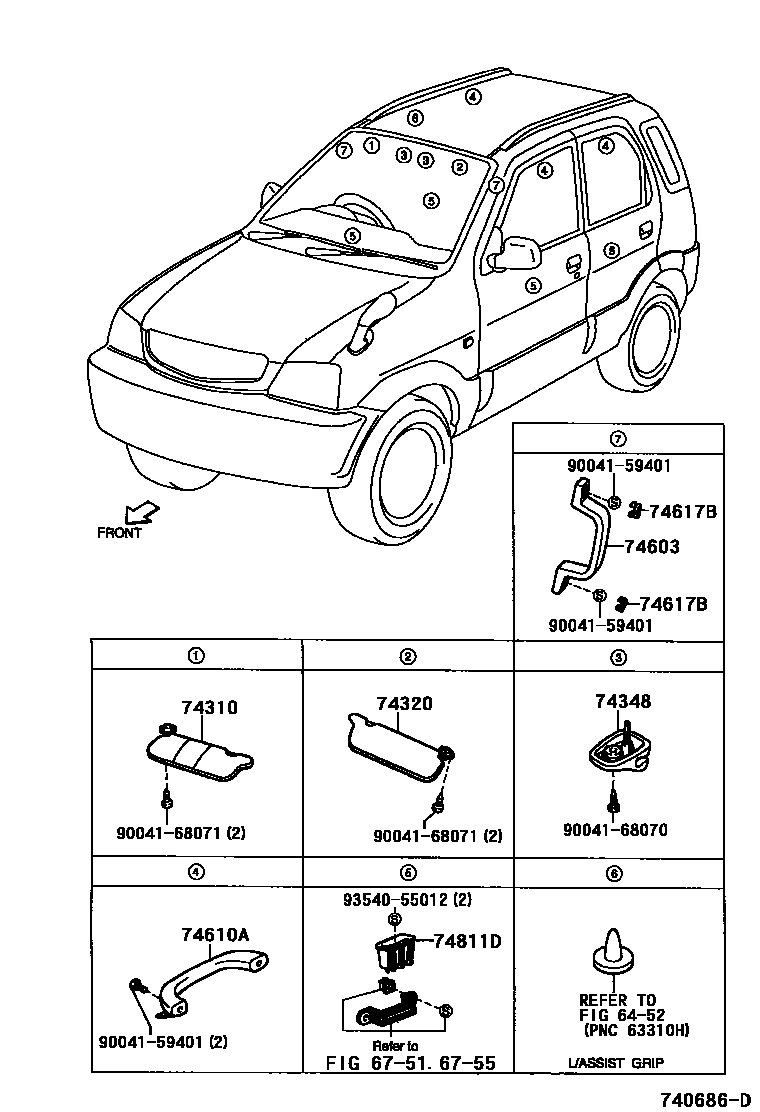

ARMREST & VISOR for Toyota CAMI

This section contains 12 genuine Toyota parts for the ARMREST & VISOR system of the Toyota CAMI. Key components include: ROOF HEADLINING & SILENCER PAD, VISOR ASSY, RH, VISOR ASSY, LH, HOLDER, VISOR, GRIP SUB-ASSY, ASSIST, FRONT.
