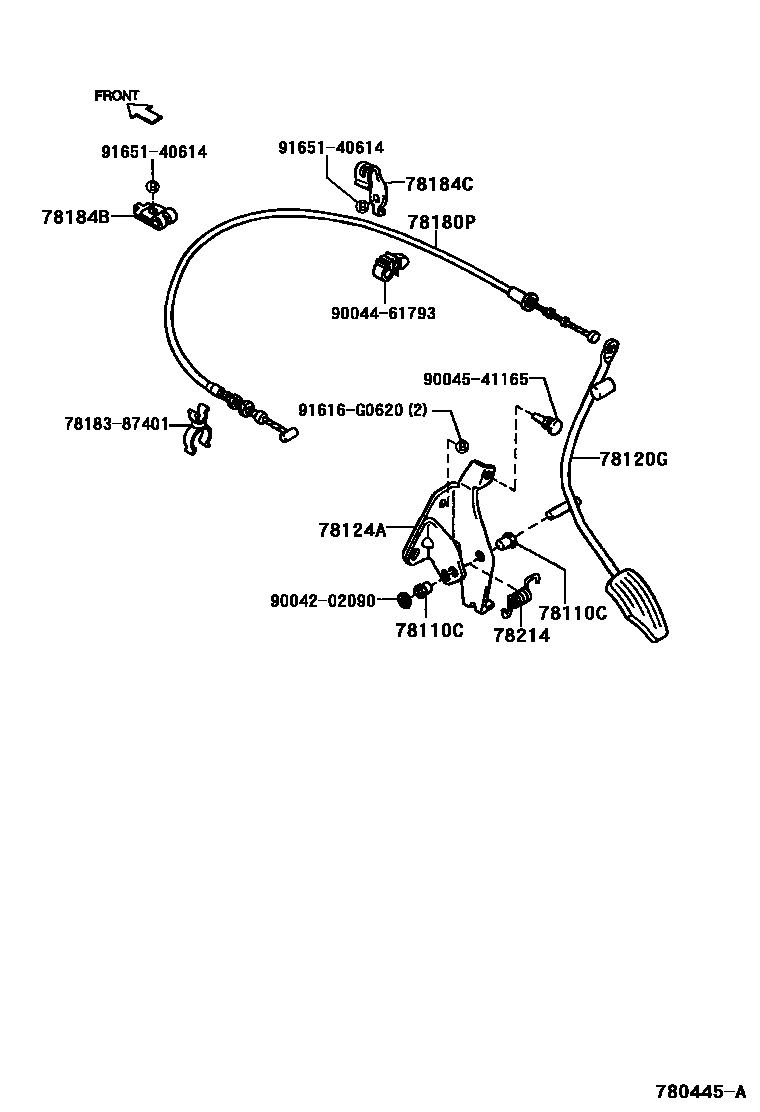

Toyota CAMI — ACCELERATOR LINK

78110CBUSH (FOR ACCELERATOR PEDAL ROD)

main90043-86080×2iJ10#,122199905

78120GROD ASSY, ACCELERATOR PEDAL

main78101-87401iJ100199905-200005

main78101-87404iJ102,122200005

78124ABRACKET, ACCELERATOR PEDAL ROD

main78124-87401iJ100199905-200005

main78124-87403iJ102,122200005

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-87402iJ100199905-200005

main78180-87407iJ102,122..EFI200005-200211

main78180-87410iJ102,122..EFI200212

sub78180-B4030

main78180-87411iJ102..TBO200212

78184BBRACKET, ACCELERATOR CONTROL CABLE

main78184-87402iJ10#,122199905

78184CBRACKET, ACCELERATOR CONTROL CABLE

main78184-87401iJ10#,122199905

78214SPRING, ACCELERATOR LINK ROD RETURN

main78214-87401iJ100..5F199905-200005

main78214-87402iJ100..4AT199905-200005

main78214-87405iJ102,122200005

7818387401BRACKET, ACCELERATOR LINK ROD

main78183-87401

9004202090

main90042-02090

9004461793

main90044-61793

9004541165

main90045-41165

91616G0620

main91616-G0620

9165140614

main91651-40614

13 parts on this diagram · 1 diagram in section
