Toyota CAMI — ABS & VSC

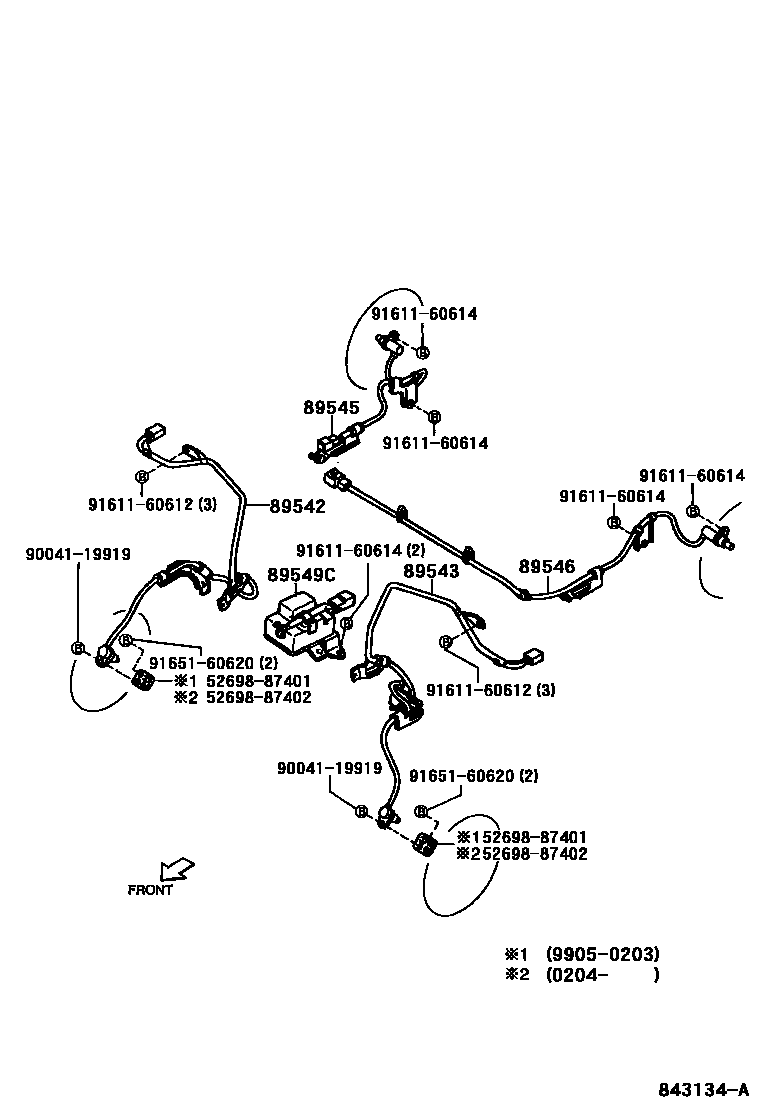

Parts diagram

89542SENSOR, SPEED, FRONT RH

main89544-87401i199905-200005

main89544-87403i200005

89543SENSOR, SPEED, FRONT LH

main89545-87401i199905-200005

main89545-87403i200005

89545SENSOR, SPEED, REAR RH

main89544-87402i199905-200005

main89544-87404i200005

89546SENSOR, SPEED, REAR LH

main89545-87402i199905-200005

main89545-87404i200005

89549CSENSOR, GRAVITY, REAR

main89501-87401i200005

main89549-87401i199905-200005

5269887401

main52698-87401

5269887402

main52698-87402

9004119919

main90041-19919

9161160612

main91611-60612

9161160614

main91611-60614

9165160620

main91651-60620

11 parts on this diagram · 1 diagram in section

ABS & VSC for Toyota CAMI

This section contains 11 genuine Toyota parts for the ABS & VSC system of the Toyota CAMI. Key components include: SENSOR, SPEED, FRONT RH, SENSOR, SPEED, FRONT LH, SENSOR, SPEED, REAR RH, SENSOR, SPEED, REAR LH, SENSOR, GRAVITY, REAR.
