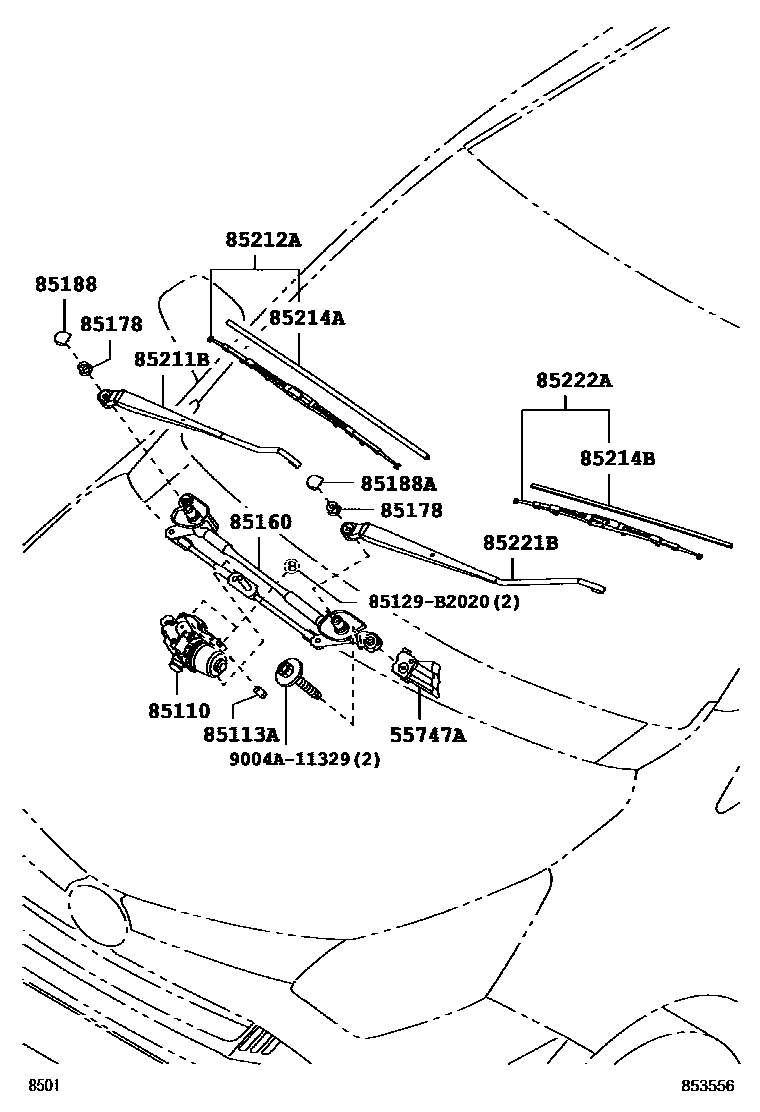

Toyota CALYA — WINDSHIELD WIPER
55747ABRACKET, WIPER MOTOR MOUNTING, NO,1
85110MOTOR ASSY, WINDSHIELD WIPER
85113ANUT, FR WIPER
85160LINK ASSY, WINDSHIELD WIPER
85178NUT (FOR FRONT WIPER ARM SETTING)
85188CAP, WINDSHIELD WIPER PIVOT, NO.1
RH
RH
85188ACAP, WINDSHIELD WIPER PIVOT, NO.2
LH
LH
85211BARM, FRONT WIPER, RH
85212ABLADE, FR WIPER, RH
85214ARUBBER, WIPER, RH
85214BRUBBER, WIPER, LH
85221BARM, FRONT WIPER, LH
85222ABLADE, FR WIPER, LH
85129B2020COIL, WINDSHIELD WIPER MOTOR FIELD
main85129-B2020
9004A11329
main9004A-11329
15 parts on this diagram · 1 diagram in section
WINDSHIELD WIPER for Toyota CALYA
This section contains 15 genuine Toyota parts for the WINDSHIELD WIPER system of the Toyota CALYA. Key components include: BRACKET, WIPER MOTOR MOUNTING, NO,1, MOTOR ASSY, WINDSHIELD WIPER, NUT, FR WIPER, LINK ASSY, WINDSHIELD WIPER, NUT (FOR FRONT WIPER ARM SETTING).
