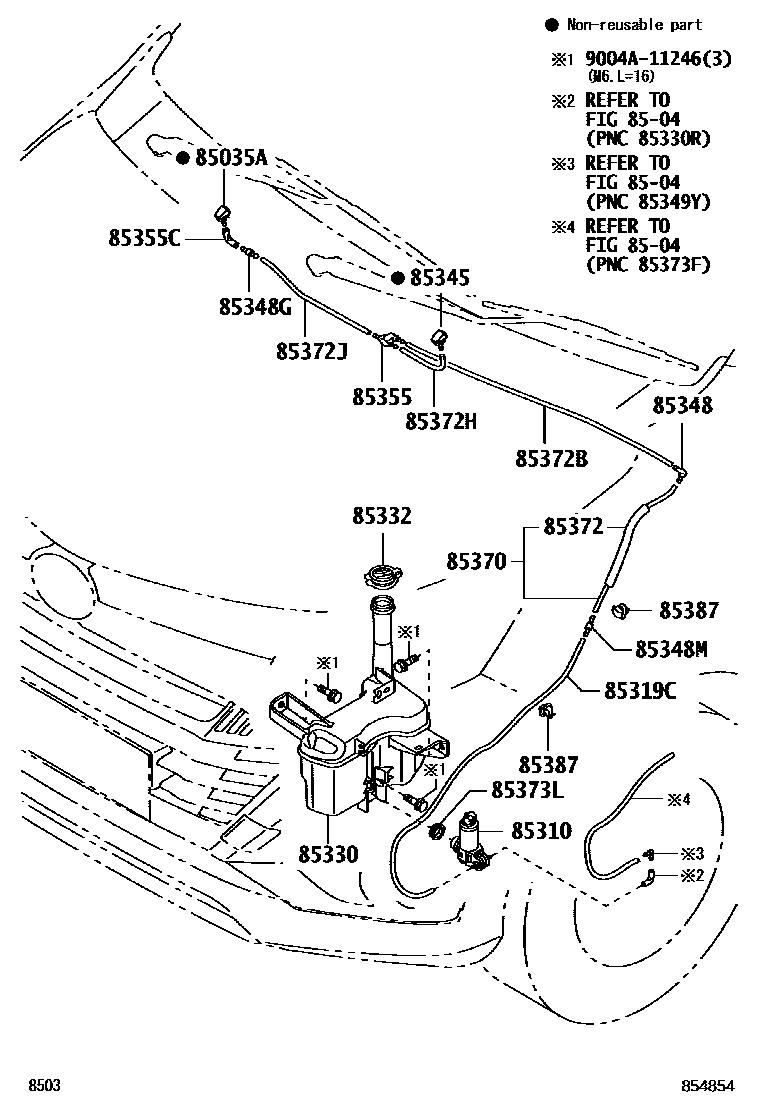

Toyota CALYA — WINDSHIELD WASHER

85035ANOZZLE, FR WASHER, RH

main85381-BZ220i201606-202207

8504REAR WASHER

→ Go to FIG 85-04

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-BZ120i201606-201611

main85330-BZ180i201611-202207

85319CHOSE, WASHER

main85374-BZB20i201606-202207

85330JAR ASSY, WINDSHIELD WASHER

main85315-BZ170i201611-202207

85332CAP, WINDSHIELD WASHER JAR

main85332-B2040i201606-202207

85345NOZZLE, WINDSHIELD WASHER

main85381-BZ220i201606-202207

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85376-BZ020i201606-202207

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85317-BZ080i201606-202207

85348MJOINT, WINDSHIELD WASHER HOSE, NO.3

main85317-BZ080i201606-202207

85355VALVE, WINDSHIELD WASHER HOSE

main85376-B1010i201606-202207

85355CJAR, WASHER, C

main85355-87701i201606-202207

85370HOSE ASSY, WINDSHIELD WASHER

main85370-BZ780i201606-202207

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main85374-BZB40i201606-202207

*H,L=300

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main85374-BZB50i201606-202207

*H,L=430

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main85374-BZB60i201606-202207

*H,L=135

85372JHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4

main85374-BZB70i201606-202207

*H,L=350

85373LGROMMET, WASHER

main90044-80454i201606-202207

85387CLAMP NO.1 (FOR WINDSEIELD WASHER)

main82711-1E340i201606-202207

9004A11246

main9004A-11246

20 parts on this diagram · 1 diagram in section

WINDSHIELD WASHER for Toyota CALYA

This section contains 20 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota CALYA. Key components include: NOZZLE, FR WASHER, RH, REAR WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, HOSE, WASHER, JAR ASSY, WINDSHIELD WASHER.
