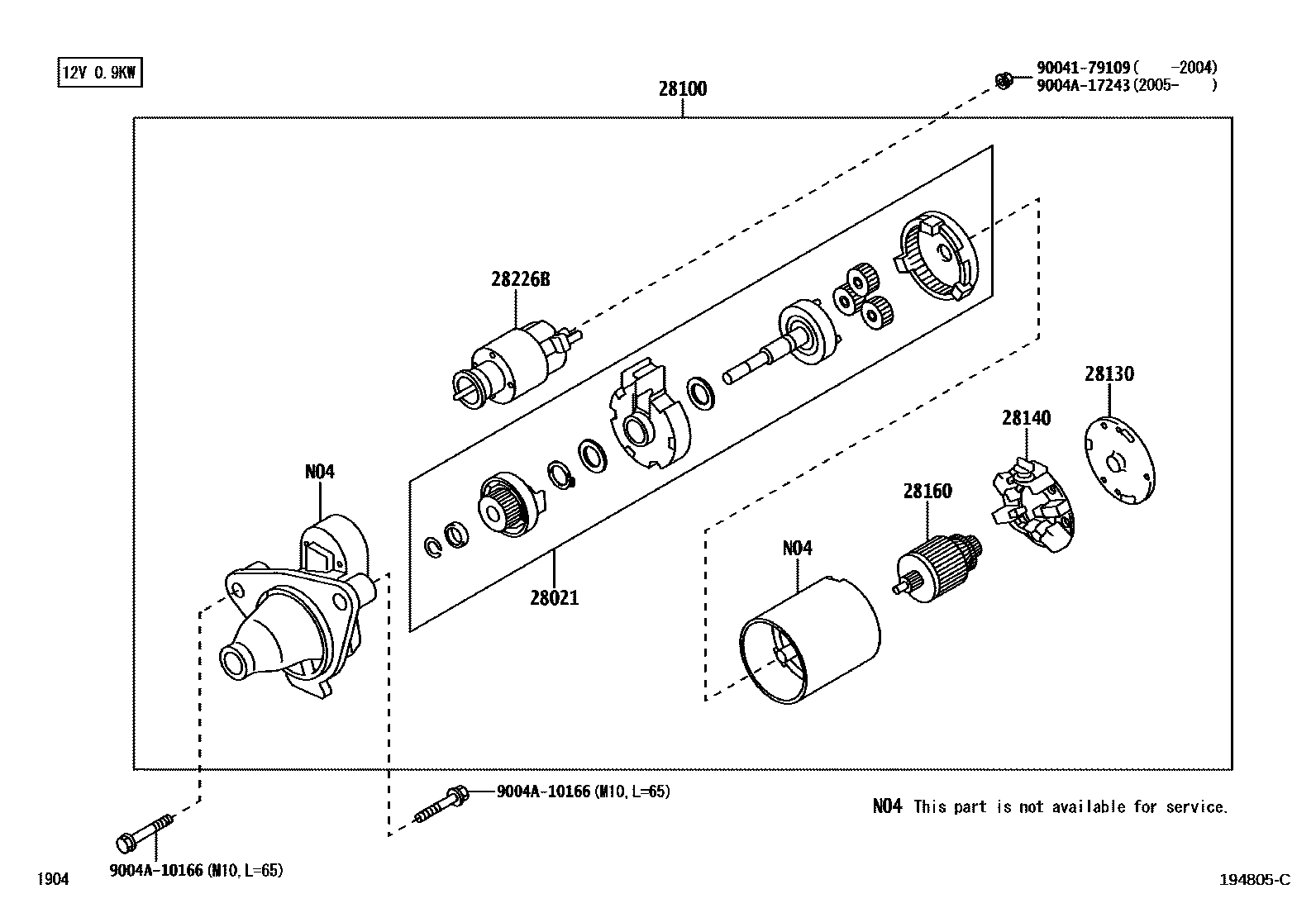

Toyota CALYA — STARTER

28021CLUTCH SUB-ASSY, STARTER CENTER BEARING

main28021-BZ050i201606-202207

28100STARTER ASSY

main28100-BZ310i201606-202207

12V 0.9KW

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-BZ140i201606-202207

28140HOLDER ASSY, STARTER BRUSH

main28140-BZ140i201606-202207

28160ARMATURE ASSY, STARTER

main28160-BZ040i201606-202207

28226BSTARTER KIT, REPAIR SERVICE

main28226-BZ010i201606-202207

9004179109

main90041-79109

9004A10166

main9004A-10166

9004A17243

main9004A-17243

9 parts on this diagram · 2 diagrams in section

STARTER for Toyota CALYA

This section contains 12 genuine Toyota parts for the STARTER system of the Toyota CALYA. Key components include: CLUTCH SUB-ASSY, STARTER CENTER BEARING, STARTER ASSY, HOUSING ASSY, STARTER DRIVE, YOKE ASSY, STARTER, FRAME ASSY, STARTER COMMUTATOR END.
