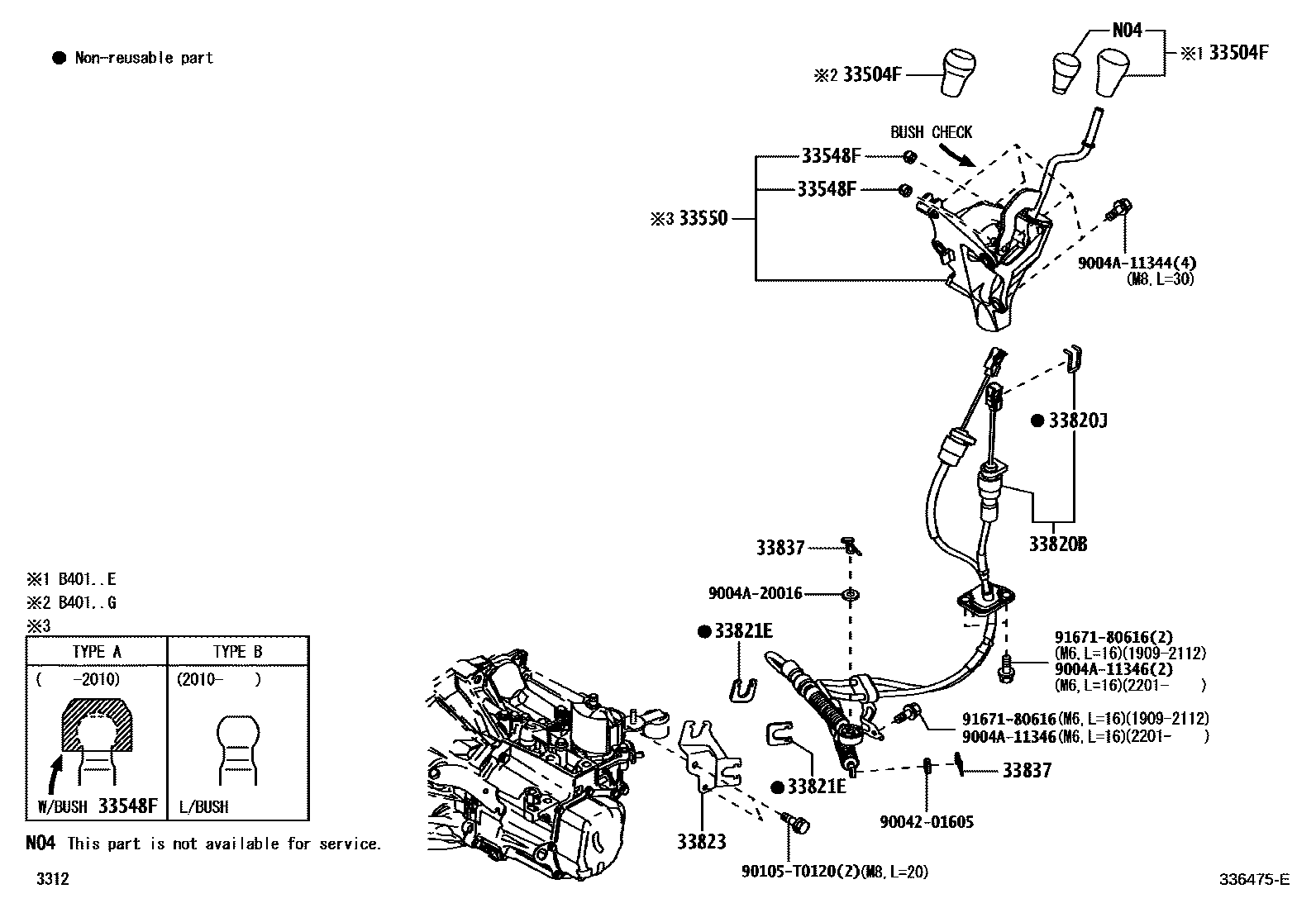

Toyota CALYA — SHIFT LEVER & RETAINER

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-B1010-B0i201606-201909

DK.GRAY,TRIM4#

main33504-B1010-C1i201912-202207

BLACK,TRIM4#

main33504-BZ010-B0i201606-201909

DK.GRAY,TRIM4#

main33504-BZ010-C1i202207

BLACK,TRIM4#

main33504-BZ240-B0i201909-202207

DK.GRAY,TRIM4#

main33504-BZ250-B0i202207

DK.GRAY,TRIM4#

33548FBUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)

main33548-BZ100×2i201606-201909

33550FLOOR SHIFT ASSY, TRANSMISSION

main33550-BZ240i201606-201909

TYPE A:REFER ILLUST.

main33550-BZ241i202010-202207

TYPE B:REFER ILLUST.

main33550-BZ310-C0i201606-201905

BLACK,TRIM4#

main33550-BZ311-C0i202207

BLACK,TRIM4#

33820BCABLE ASSY, TRANSMISSION CONTROL

main33820-BZ320i201606-201803

main33820-BZ321i201804-201905

main33820-BZ322i202207

main33820-BZ330i201909-202102

L/CLIP

main33820-BZ331i202102-202207

W/CLIP

33820JCLIP(FOR TRANSMISSION CONTROL CABLE)

main33837-B6010i201909-202102

main33837-B6020i202102-202207

33821ECLAMP, NO.1 (FOR TRANSMISSION CONTROL CABLE)

main33567-B1010i202207

33823BRACKET, TRANSMISSION CONTROL CABLE, NO.1

main33823-BZ020i202207

33837CLIP, TRANSMISSION CONTROL CABLE ADJUST

main33837-B2010i201909-202207

main90044-68076×2i201606-201909

9004201605

main90042-01605

9004A11344

main9004A-11344

9004A11346

main9004A-11346

9004A20016

main9004A-20016

90105T0120

main90105-T0120

9167180616

main91671-80616

14 parts on this diagram · 4 diagrams in section

SHIFT LEVER & RETAINER for Toyota CALYA

This section contains 26 genuine Toyota parts for the SHIFT LEVER & RETAINER system of the Toyota CALYA. Key components include: KNOB SUB-ASSY, SHIFT LEVER, BRACKET, CONTROL CABLE, RING, SHIFT LEVER, BUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT), FLOOR SHIFT ASSY, TRANSMISSION.
