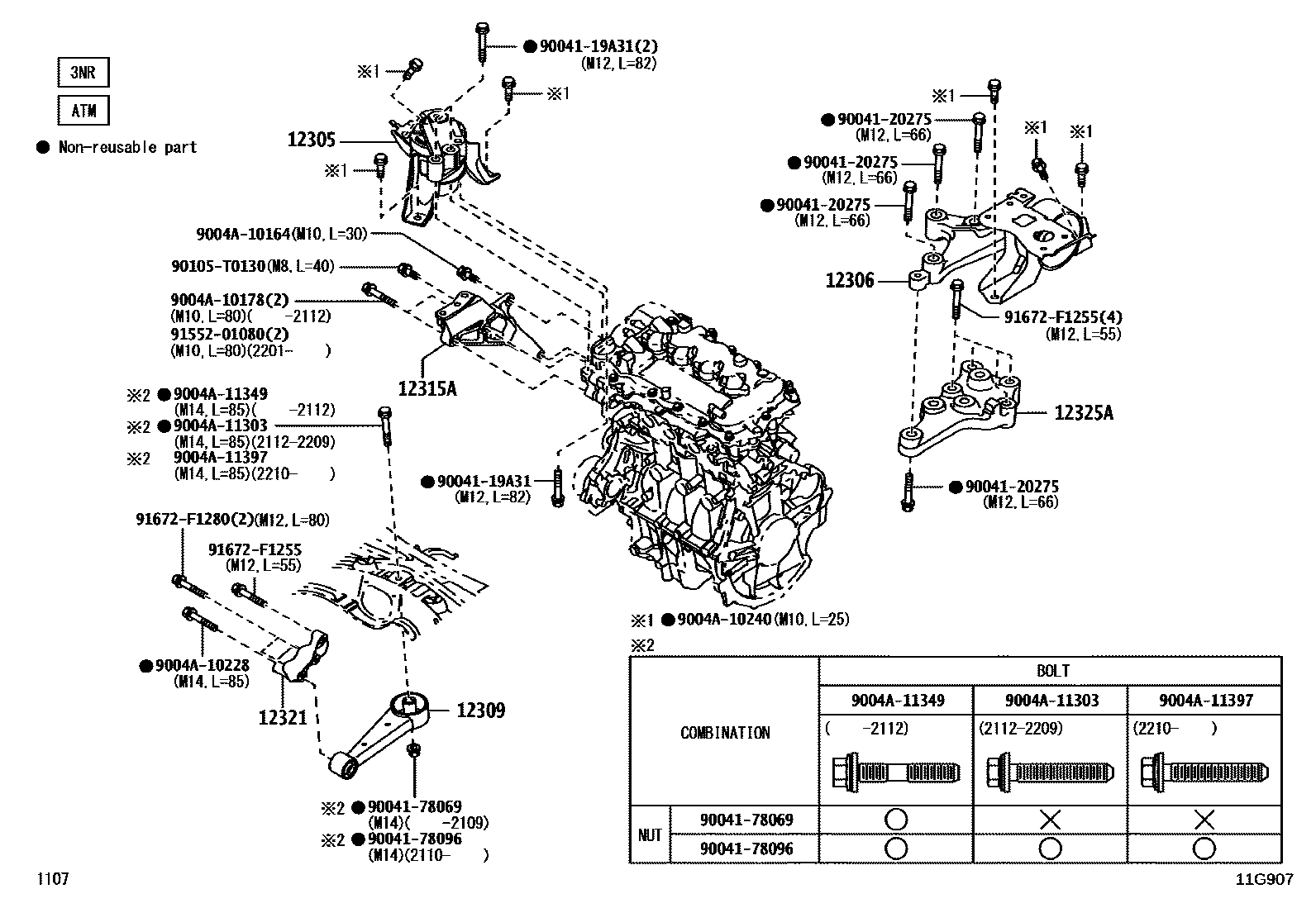

Toyota CALYA — MOUNTING
12305INSULATOR SUB-ASSY, ENGINE MOUNTING, RH
12306INSULATOR SUB-ASSY, ENGINE MOUNTING, LH
12309ROD SUB-ASSY, ENGINE MOVING CONTROL
12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
RH
12321BRACKET, ENGINE MOUNTING, REAR, NO.1
12325ABRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
9004119A31
main90041-19A31
9004120275
main90041-20275
9004178069
main90041-78069
9004178096
main90041-78096
9004A10164
main9004A-10164
9004A10178
main9004A-10178
9004A10228
main9004A-10228
9004A10240
main9004A-10240
9004A11303
main9004A-11303
9004A11349
main9004A-11349
9004A11397
main9004A-11397
90105T0130
main90105-T0130
9155201080
main91552-01080
91672F1255
main91672-F1255
91672F1280
main91672-F1280
21 parts on this diagram · 2 diagrams in section
MOUNTING for Toyota CALYA
This section contains 22 genuine Toyota parts for the MOUNTING system of the Toyota CALYA. Key components include: INSULATOR SUB-ASSY, ENGINE MOUNTING, RH, INSULATOR SUB-ASSY, ENGINE MOUNTING, LH, ROD SUB-ASSY, ENGINE MOVING CONTROL, BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE), BRACKET, ENGINE MOUNTING, REAR, NO.1.
