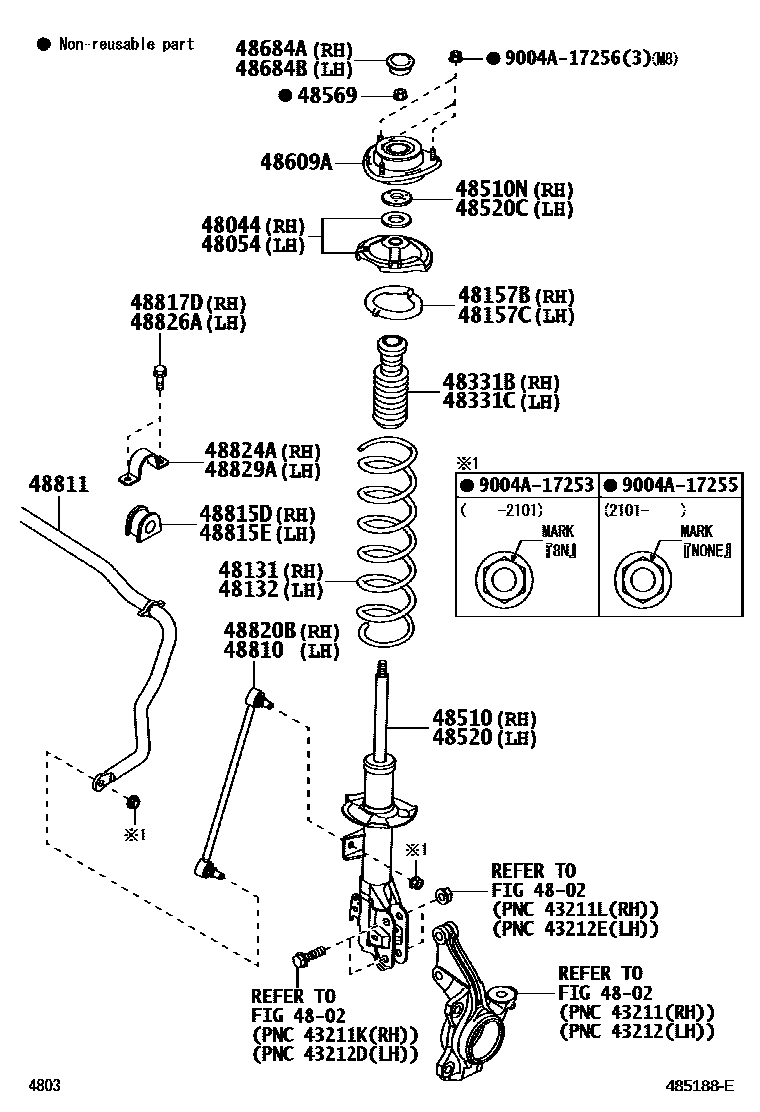

Toyota CALYA — FRONT SPRING & SHOCK ABSORBER
4802FRONT AXLE ARM & STEERING KNUCKLE
48044SEAT SUB-ASSY, FRONT SPRING, NO.1
RH
48054SEAT SUB-ASSY, FRONT SPRING, NO.2
LH
48157BINSULATOR, FRONT COIL SPRING, UPPER RH
48157CINSULATOR, FRONT COIL SPRING, UPPER LH
48331BBUMPER, FRONT SPRING, RH
48331CBUMPER, FRONT SPRING, LH
48510ABSORBER ASSY, SHOCK, FRONT RH
MARK 48510-BZB50
48510NBUSH(FOR FRONT SHOCK ABSORBER RH)
48520ABSORBER ASSY, SHOCK, FRONT LH
MARK 48520-BZ660
48520CBUSH(FOR FRONT SHOCK ABSORBER LH)
48569NUT, SHOCK ABSORBER PISTON
JAPAN SOURCED PARTS
48609ASUPPORT SUB-ASSY, FRONT SUSPENSION
48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH
48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH
48810LINK ASSY, FRONT STABILIZER, LH
48811BAR, STABILIZER, FRONT
48815DBUSH, FRONT STABILIZER BAR, RH
48815EBUSH, FRONT STABILIZER BAR, LH
48817DBOLT(FOR FRONT STABILIZER)
RH
48820BLINK ASSY, FRONT STABILIZER, RH
48824ABRACKET, FRONT STABILIZER, NO.1 RH
48826ABOLT(FOR FRONT STABILIZER BAR PROTECTOR)
LH
48829ABRACKET, FRONT STABILIZER, NO.1 LH
9004A17253
main9004A-17253
9004A17255
main9004A-17255
9004A17256
main9004A-17256
29 parts on this diagram · 1 diagram in section
FRONT SPRING & SHOCK ABSORBER for Toyota CALYA
This section contains 29 genuine Toyota parts for the FRONT SPRING & SHOCK ABSORBER system of the Toyota CALYA. Key components include: FRONT AXLE ARM & STEERING KNUCKLE, SEAT SUB-ASSY, FRONT SPRING, NO.1, SEAT SUB-ASSY, FRONT SPRING, NO.2, SPRING, FRONT COIL, RH, SPRING, FRONT COIL, LH.
