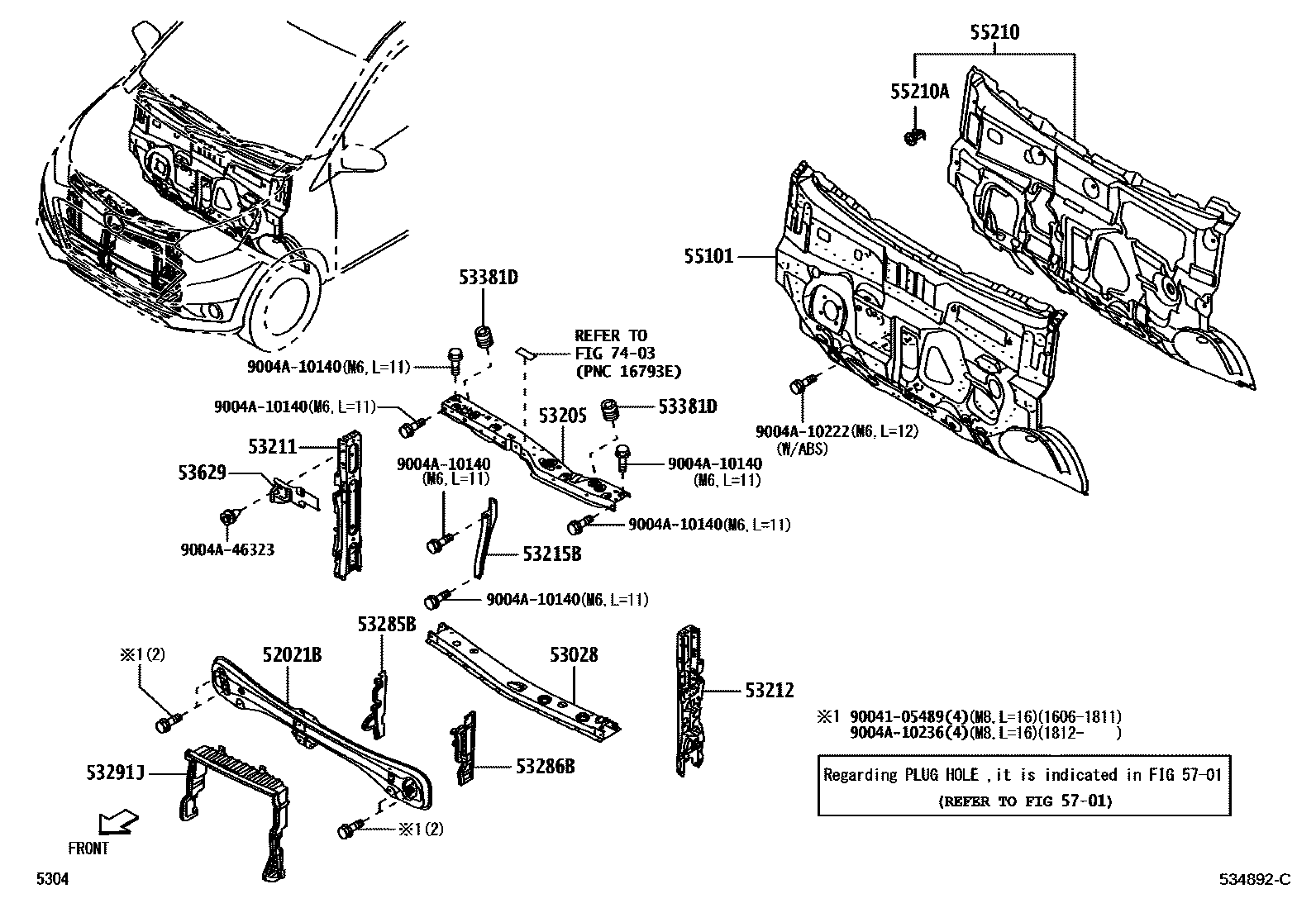

Toyota CALYA — FRONT FENDER APRON & DASH PANEL

0001 1 0002 1 0003 1 0005 1

52021BREINFORCEMENT SUB-ASSY, FRONT BUMPER

main52131-BZ120iB401..G;B401..5F..E202207

53028SUPPORT SUB-ASSY, RADIATOR, LOWER

main53028-BZ160iB401201909-202207

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-BZ170iB401201606-201908

main53205-BZ200iB401..G;B401..5F..E202207

53211SUPPORT, RADIATOR, RH

main53211-BZ210iB401..G;B401..5F..E202207

53212SUPPORT, RADIATOR, LH

main53211-BZ210iB401201909-202207

53215BSUPPORT, HOOD LOCK

main53215-BZ180iB401201606-201804

main53215-BZ200iB401201805-201909

53285BSEAL, RADIATOR SIDE AIR, NO.1

main53037-BZ020iB401201606-201909

RH

53286BSEAL, RADIATOR SIDE AIR, NO.2

main53038-BZ010iB401201606-201909

LH

53291JSEAL, RADIATOR SUPPORT

main53039-BZ020iB401201606-201909

UPR

53381DBUMPER, HOOD TO FRONT SHROUD

main53381-BZ010×2iB401201909-202207

53629COVER, HOOD LOCK CONTROL CABLE

main53629-BZ090iB401201909-202207

55101PANEL SUB-ASSY, DASH

main55101-BZK90iB401..5F201909-202207

main55101-BZL00iB401..4FC..G202207

55210INSULATOR ASSY, DASH PANEL

main55210-BZ490iB401201909-202207

55210ACLIP

main90467-11122×6iB401201909-202207

5701

7403

9004105489

main90041-05489

9004A10140

main9004A-10140

9004A10222

main9004A-10222

9004A10236

main9004A-10236

9004A46323

main9004A-46323

21 parts on this diagram · 4 diagrams in section
