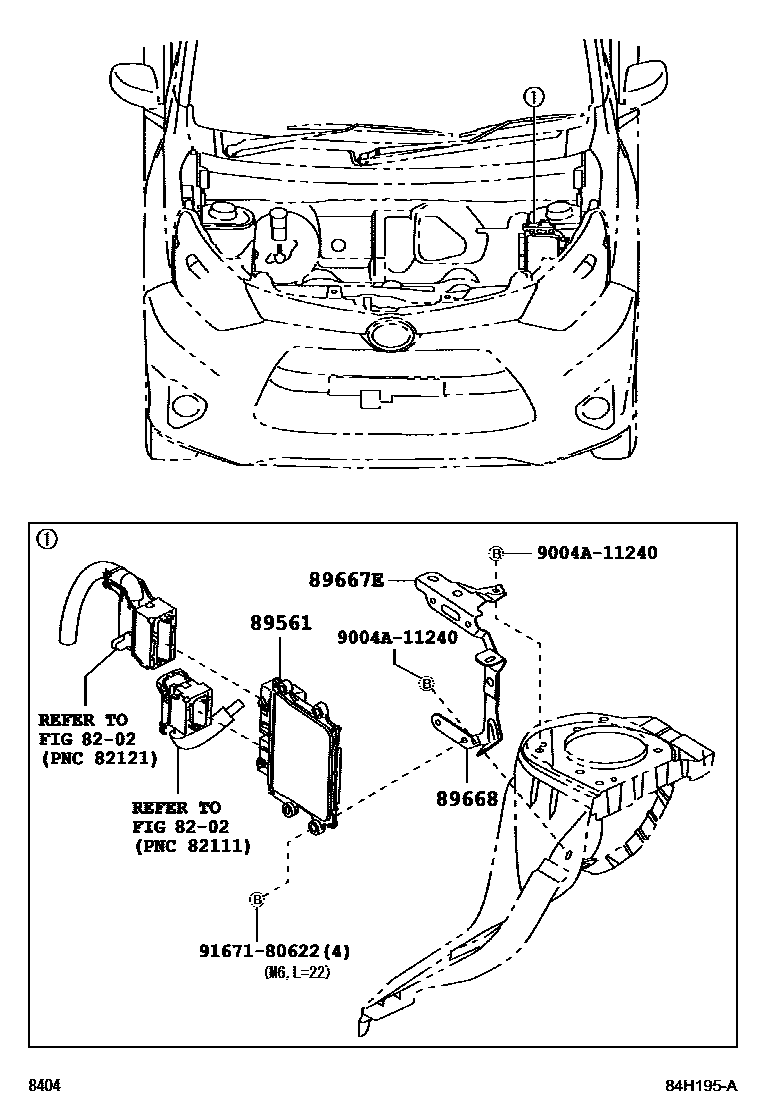

Toyota CALYA — ELECTRONIC FUEL INJECTION SYSTEM

8202WIRING & CLAMP

→ Go to FIG 82-02

89561COMPUTER, FUEL INJECTION

main89560-BZQ60i201606-201609

main89560-BZQ61i201610-201701

main89560-BZQ62i201702-201810

main89560-BZQ72i201909-202204

DENSO,W/PART NUMBER LABEL

main89560-BZQ73i202204-202207

W/PART NUMBER LABEL

main89560-BZR60i201606-201701

main89560-BZR61i201702-201810

main89560-BZR72i201810-201909

DENSO

main89560-BZR73i202204-202207

W/PART NUMBER LABEL

89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-BZ130i201909-202207

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-BZ130i201909-202207

9004A11240

main9004A-11240

9167180622

main91671-80622

6 parts on this diagram · 2 diagrams in section

ELECTRONIC FUEL INJECTION SYSTEM for Toyota CALYA

This section contains 7 genuine Toyota parts for the ELECTRONIC FUEL INJECTION SYSTEM system of the Toyota CALYA. Key components include: WIRING & CLAMP, BRACKET, COMPUTER, COMPUTER, FUEL INJECTION, BRACKET, ENGINE CONTROL COMPUTER, NO.1, BRACKET, ENGINE CONTROL COMPUTER, NO.2.
