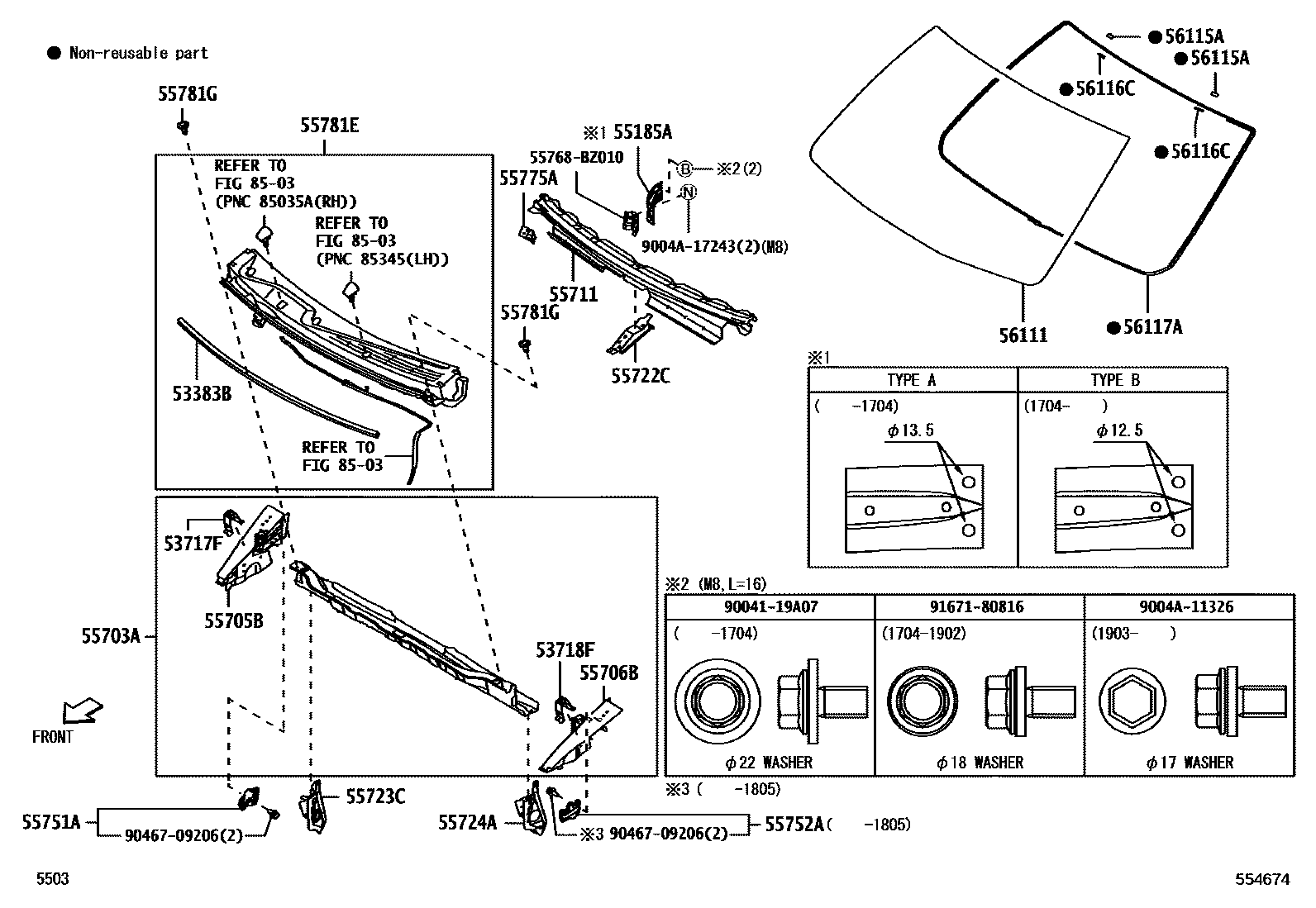

Toyota CALYA — COWL PANEL & WINDSHIELD GLASS

53383BSEAL, HOOD TO COWL TOP

main53383-BZ120i201606-201909

53717FGUSSET, FENDER APRON, RH

main53717-BZ140i201909-202207

53718FGUSSET, FENDER APRON, LH

main53718-BZ140i201909-202207

55185ABRACE, DASH PANEL TO COWL

main55137-BZ040i201606-201704

TYPE A

main55137-BZ041i201909-202207

55703APANEL SUB-ASSY, COWL TOP, INNER

main55703-BZ540i202207

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-BZ100i201909-202207

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-BZ120i201909-202207

55711PANEL, COWL TOP, OUTER

main55711-BZ250i201909-202207

55722CBRACE, COWL TOP TO COWL, INNER

main55721-BZ100i201909-202207

55723CREINFORCEMENT, COWL TOP SIDE, RH

main55723-BZ100i201606-201909

55724AREINFORCEMENT, COWL TOP SIDE, LH

main55724-BZ080i202207

55751ASHIELD, COWL VENTILATOR SPLASH, RH

main55751-BZ070i201909-202207

55752ASHIELD, COWL VENTILATOR SPLASH, LH

main55752-BZ050i201606-201805

55775ARETAINER, WINDSHIELD WIPER SHAFT

main55774-BZ210i201909-202207

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-BZ120i201909-202207

55781GCLIP, COWL TOP VENTILATOR LOUVER

main9004A-46323×2i201606-201909

56111GLASS, WINDSHIELD

main56111-BZ340i201606-201909

ASAHIMAS

main56111-BZ480i201606-201909

MULIA GLASS

main56111-BZ810i202207

ASAHIMAS

main56111-BZ820i201909-202207

MULIA GLASS

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-97402×2i201606-201909

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-97401×2i201909-202207

56117ADAM, WINDOW GLASS ADHESIVE

main56117-BZ170i201909-202207

L=3566

8503WINDSHIELD WASHER

→ Go to FIG 85-03

55768BZ010

main55768-BZ010

9004119A07

main90041-19A07

9004A11326

main9004A-11326

9004A17243

main9004A-17243

9046709206

main90467-09206

9167180816

main91671-80816

27 parts on this diagram · 1 diagram in section

COWL PANEL & WINDSHIELD GLASS for Toyota CALYA

This section contains 27 genuine Toyota parts for the COWL PANEL & WINDSHIELD GLASS system of the Toyota CALYA. Key components include: SEAL, HOOD TO COWL TOP, GUSSET, FENDER APRON, RH, GUSSET, FENDER APRON, LH, BRACE, DASH PANEL TO COWL, PANEL SUB-ASSY, COWL TOP, INNER.
