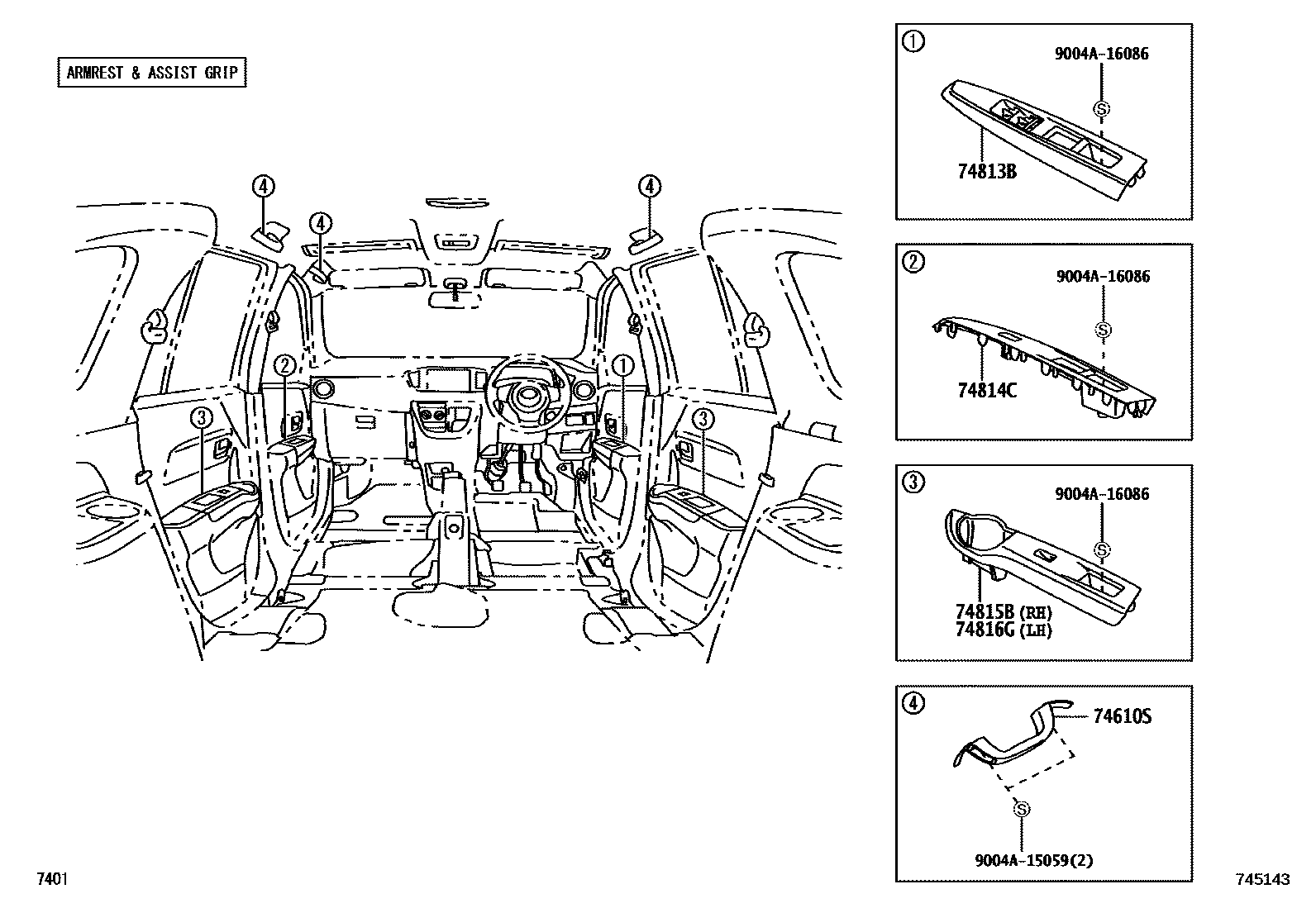

Toyota CALYA — ARMREST & VISOR

74610SGRIP ASSY, ASSIST

main74611-BZ060-B1i201606-202207

LT.GRAY,TRIM4#

main74611-BZ060-B2i202207

DK.GRAY,TRIM4#

74813BHANDLE, FRONT DOOR PULL, RH

main74813-BZ130-E3i201606-201909

OAK,TRIM4#

main74813-BZ130-E4i201909-202207

DARK BROWN,TRIM4#

main74813-BZ130-E5i202207

BROWN,TRIM4#

main74813-BZ140-B2i201606-202207

SILVER,TRIM4#

74814CHANDLE, FRONT DOOR PULL, LH

main74814-BZ120-E3i201606-201909

OAK,TRIM4#

main74814-BZ120-E4i201909-202207

DARK BROWN,TRIM4#

main74814-BZ120-E5i202207

BROWN,TRIM4#

main74814-BZ130-B2i201606-202207

SILVER,TRIM4#

74815BHANDLE, REAR DOOR PULL

main74815-BZ030-E3i201606-201909

OAK,TRIM4#

main74815-BZ030-E4i201909-202207

DARK BROWN,TRIM4#

main74815-BZ030-E5i202207

BROWN,TRIM4#

main74815-BZ040-B2i201606-202207

SILVER,TRIM4#

74816GHANDLE, REAR DOOR PULL, LH

main74816-BZ020-E3i201606-201909

OAK,TRIM4#

main74816-BZ020-E4i201909-202207

DARK BROWN,TRIM4#

main74816-BZ020-E5i202207

BROWN,TRIM4#

main74816-BZ030-B2i201606-202207

SILVER,TRIM4#

9004A15059

main9004A-15059

9004A16086

main9004A-16086

7 parts on this diagram · 3 diagrams in section

ARMREST & VISOR for Toyota CALYA

This section contains 15 genuine Toyota parts for the ARMREST & VISOR system of the Toyota CALYA. Key components include: FLOOR PAN & LOWER BACK PANEL, VISOR ASSY, RH, VISOR ASSY, LH, HOLDER, VISOR, GRIP ASSY, ASSIST.
