Toyota CALYA — ABS & VSC

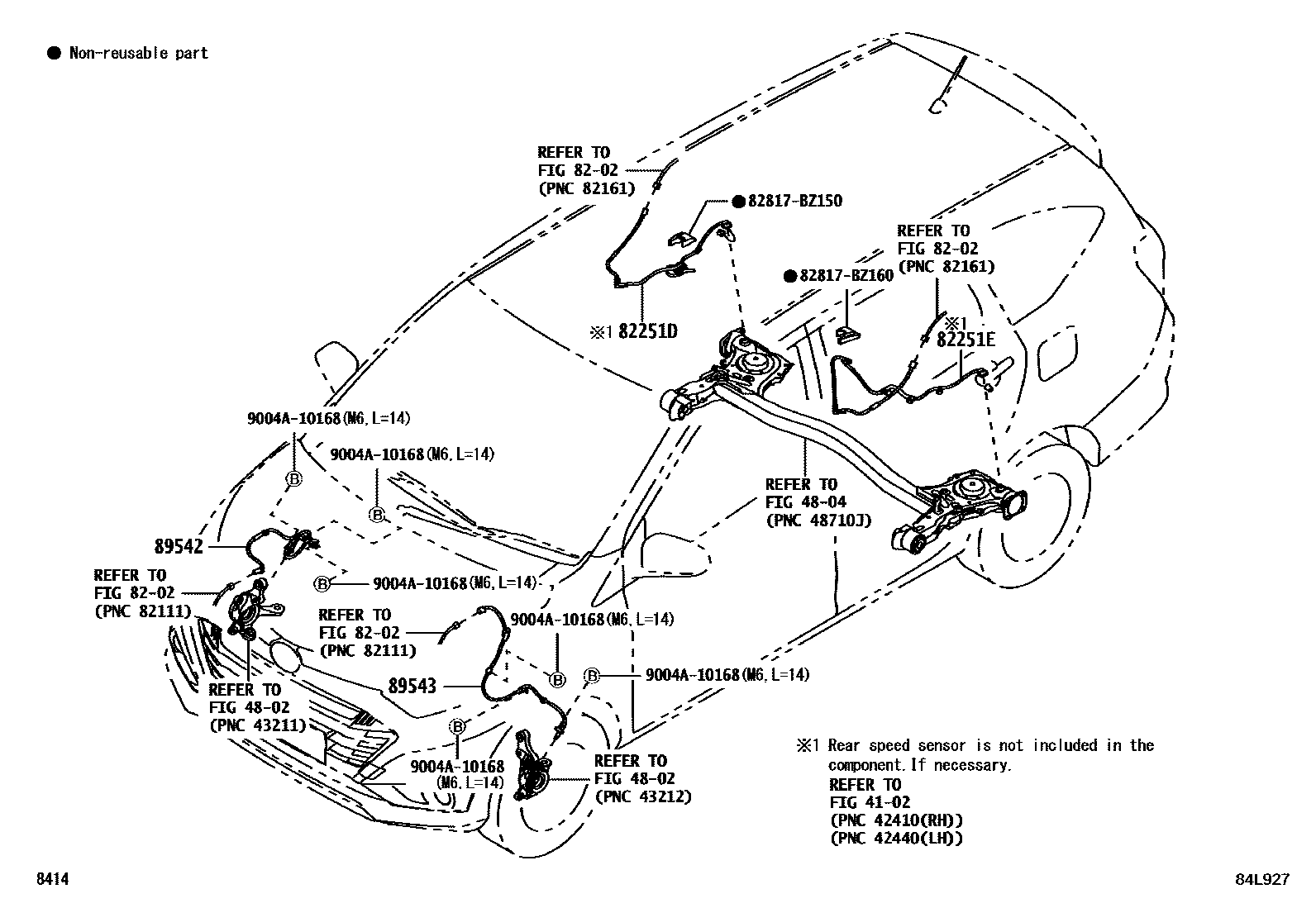

Parts diagram

4102REAR AXLE SHAFT & HUB

→ Go to FIG 41-02

4802FRONT AXLE ARM & STEERING KNUCKLE

→ Go to FIG 48-02

4804REAR SPRING & SHOCK ABSORBER

→ Go to FIG 48-04

8202WIRING & CLAMP

→ Go to FIG 82-02

82251DWIRE, SPEED SENSOR, RH

main82251-BZ090i201909-202207

ABS (ANTI-LOCK BRK SYSTM)-ABS

82251EWIRE, SPEED SENSOR, LH

main82251-BZ100i201909-202207

ABS (ANTI-LOCK BRK SYSTM)-ABS

89542SENSOR, SPEED, FRONT RH

main89542-BZ100i201909-202207

ABS (ANTI-LOCK BRK SYSTM)-ABS

89543SENSOR, SPEED, FRONT LH

main89543-BZ100i201909-202207

ABS (ANTI-LOCK BRK SYSTM)-ABS

82817BZ150PROTECTOR, WIRING HARNESS, NO.1

main82817-BZ150

82817BZ160PROTECTOR, WIRING HARNESS, NO.1

main82817-BZ160

9004A10168

main9004A-10168

11 parts on this diagram · 1 diagram in section

ABS & VSC for Toyota CALYA

This section contains 11 genuine Toyota parts for the ABS & VSC system of the Toyota CALYA. Key components include: REAR AXLE SHAFT & HUB, FRONT AXLE ARM & STEERING KNUCKLE, REAR SPRING & SHOCK ABSORBER, WIRING & CLAMP, WIRE, SPEED SENSOR, RH.
