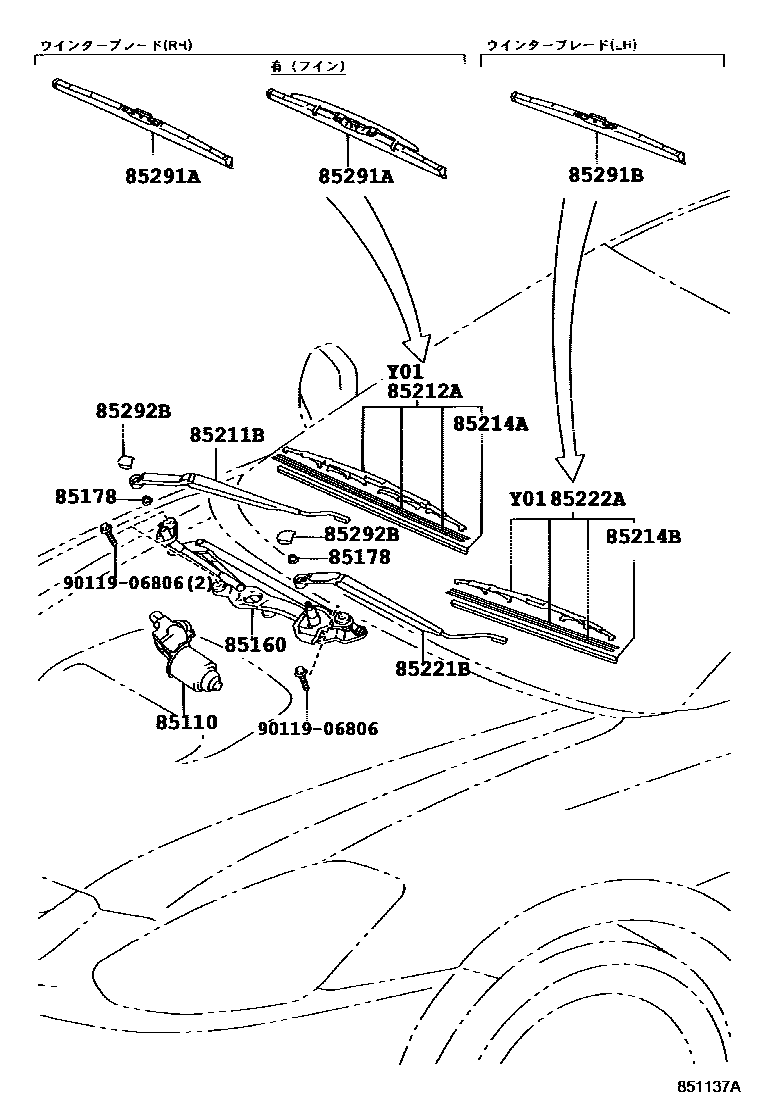

Toyota CALDINA — WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-21070supersedes 85110-21060i200501

85160LINK ASSY, WINDSHIELD WIPER

main85150-21050i200501

85178NUT (FOR FRONT WIPER ARM SETTING)

main90179-10223×2i200209-200501

85211BARM, FRONT WIPER, RH

main85211-21020i200501

85212ABLADE, FR WIPER, RH

main85212-21010i200501

85214ARUBBER, WIPER, RH

main85214-50100i200411-200501

main85214-50120i200209-200411

85214BRUBBER, WIPER, LH

main85214-50060i200411-200501

main85214-50061i200608

main85214-50130i200209-200411

85221BARM, FRONT WIPER, LH

main85221-21020i200209-200501

85222ABLADE, FR WIPER, LH

main85222-13040i200411-200501

main85222-13041i200608

main85222-21020i200209-200212

main85222-58020i200212-200411

85291ABLADE, FRONT WIPER, WINTER, RH

main85291-24090supersedes 85291-24100i200209-200501

main85291-24100i200501

85291BBLADE, FRONT WIPER, WINTER, LH

main85291-44080i200209-200501

85292BCAP, FRONT WIPER ARM HEAD

main85292-13010×2i200209-200501

9011906806

main90119-06806

13 parts on this diagram · 1 diagram in section

WINDSHIELD WIPER for Toyota CALDINA

This section contains 13 genuine Toyota parts for the WINDSHIELD WIPER system of the Toyota CALDINA. Key components include: MOTOR ASSY, WINDSHIELD WIPER, LINK ASSY, WINDSHIELD WIPER, NUT (FOR FRONT WIPER ARM SETTING), ARM, FRONT WIPER, RH, BLADE, FR WIPER, RH.
