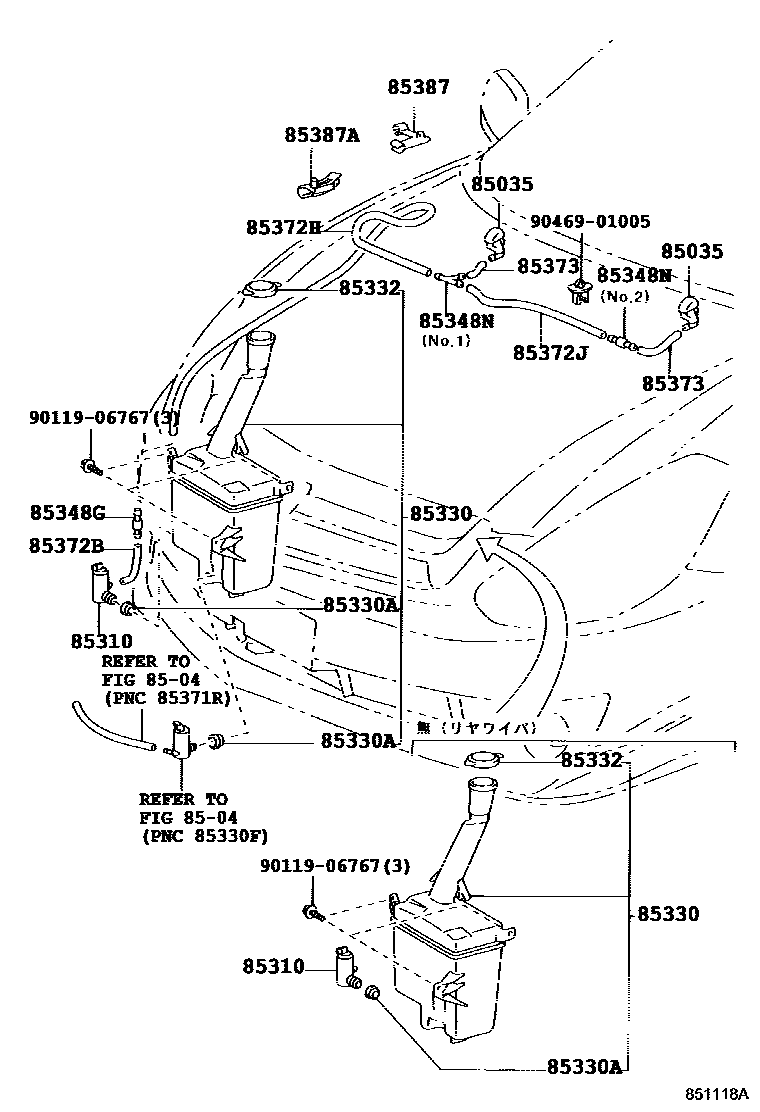

Toyota CALDINA — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-30020-C1×2i200501

BLACK

8504REAR WASHER

→ Go to FIG 85-04

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-10280i200209-200501

main85330-21010i200501

85330JAR ASSY, WINDSHIELD WASHER

main85315-20650i200209-200501

main85315-20640i200501

main85315-21010i200209-200501

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089×2i200209-200501

85332CAP, WINDSHIELD WASHER JAR

main85316-33120i200209-200501

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122i200209-200501

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85349-89122i200209-200501

85348NJOINT, WINDSHIELD WASHER HOSE, NO.4

main85348-12250i200209-200501

main85349-89122i200501

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33815supersedes 90099-33080i200209-200501

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90099-33080i200209-200501

main90099-33803i200501

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main90099-33080i200209-200501

main90446-07001i200209-200501

85372JHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4

main90446-07001i200209-200501

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33076×2i200209-200501

main90099-33080×2i200501

85387CLAMP NO.1 (FOR WINDSEIELD WASHER)

main85387-22410i200209-200501

85387ACLAMP, WASHER, NO.2

main85371-21010i200209-200501

9011906767

main90119-06767

9046901005

main90469-01005

18 parts on this diagram · 3 diagrams in section

WINDSHIELD WASHER for Toyota CALDINA

This section contains 24 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota CALDINA. Key components include: NOZZLE SUB-ASSY, WASHER, REAR WASHER, INLET SUB-ASSY, WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, JAR ASSY, WINDSHIELD WASHER.
