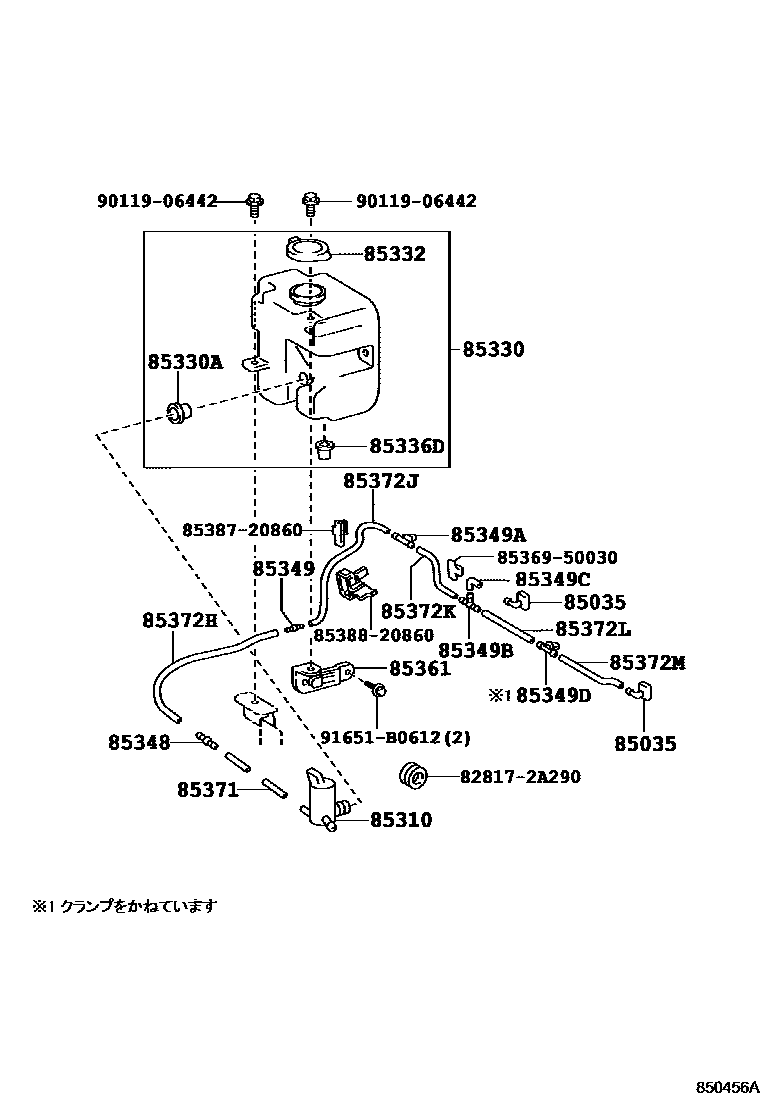

Toyota CALDINA — WINDSHIELD WASHER
85035NOZZLE SUB-ASSY, WASHER
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85330JAR ASSY, WINDSHIELD WASHER
85330ABUSH, WINDSHIELD WASHER JAR
85332CAP, WINDSHIELD WASHER JAR
85336DPACKING, WINDSHIELD WASHER JAR
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
85349JOINT, WINDSHIELD WASHER HOSE, NO.1
85349AJOINT, WINDSHIELD WASHER HOSE, NO.2
85349BJOINT, WINDSHIELD WASHER HOSE, NO.3
85349CJOINT, WINDSHIELD WASHER ELBOW, NO.4
85349DJOINT, WINDSHIELD WASHER HOSE, NO.4
85361HOLDER, WINDSHIELD WASHER
85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
85372JHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4
85372KHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.5
85372LHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.6
85372MHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.7
828172A290PROTECTOR, WIRING HARNESS, NO.1
main82817-2A290
8536950030CLAMP
main85369-50030
8538720860CLAMP NO.1 (FOR WINDSEIELD WASHER)
main85387-20860
8538820860CLAMP NO.2 (FOR WINDSEIELD WASHER)
main85388-20860
9011906442
main90119-06442
91651B0612
main91651-B0612
26 parts on this diagram · 5 diagrams in section
WINDSHIELD WASHER for Toyota CALDINA
This section contains 40 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota CALDINA. Key components include: VALVE SUB-ASSY, WASHER, NOZZLE SUB-ASSY, WASHER, REAR WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, MOTOR & PUMP ASSY, WINDSHIELD WASHER.
