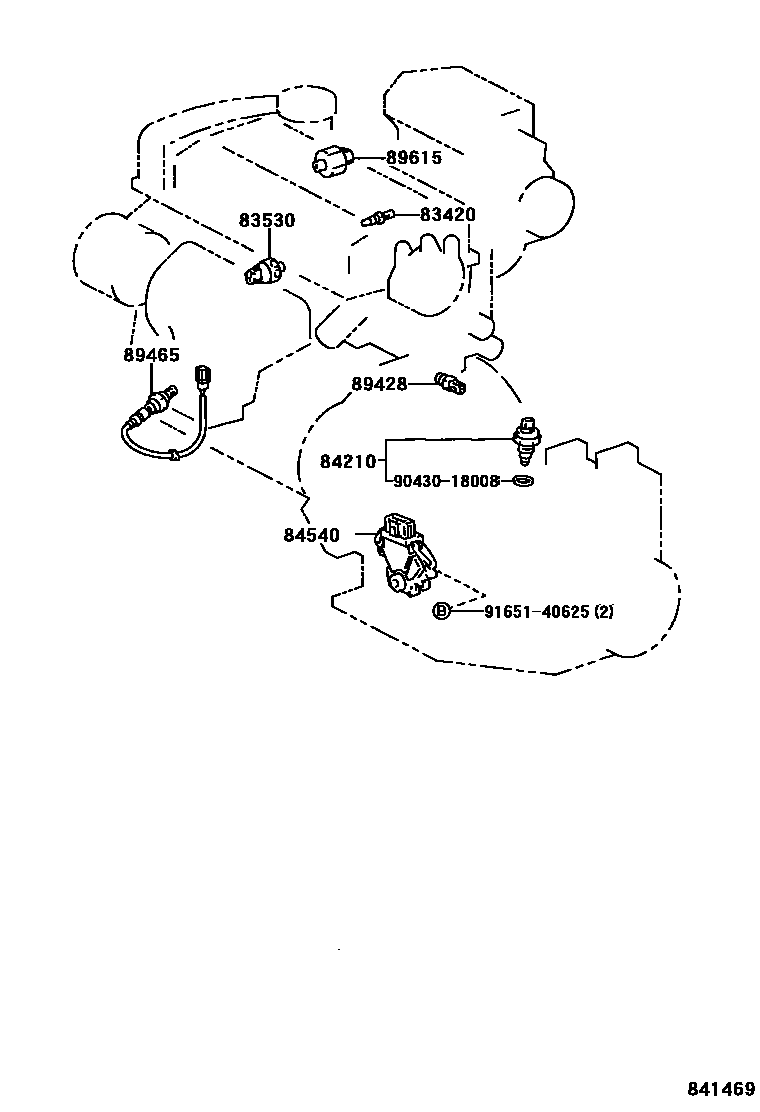

Toyota CALDINA — SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE & TRANSMISSION 0004 1ENGINE & TRANSMISSION 0005 1ENGINE & TRANSMISSION 0006 1ENGINE ROOM 0007 1COWL & CONSOLE 0008 1INSTRUMENT PANEL & DOOR 0009 1COMBINATION SWITCH 0010 1BODY

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16040iCT216199708

main83420-16050iAT211,ST21#..E,G199708-200004

main83420-20040iAT211,ST21#..E,G199708

main83420-AA010iAT211,ST21#..E,G199708

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iST21#199912

main83530-30090iAT211,ST21#199708-199803

main83530-30100iCT216199708-199803

main83530-60010iCT216199803

main83530-60020iST21#199912

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iAT211,ST215..5F199708

sub84210-52050

84540SWITCH ASSY, NEUTRAL START

main84540-12200iST215..4FC..GTT;AT211,ST210..4FC199708-199912

main84540-12210iAT211..4FC199912

main84540-12230iST210..E,G199912

main84540-16050iCT216,ST215..4FC..(E,G,GT)199708-199912

main84540-32110iST215..4FC..GTT199912

main84540-52010iST21#..GT199912

89428SWITCH, TEMPERATURE DETECT, NO.2

main89428-10120iAT211199708

main89428-20110iST215..GTT199708

main89428-21010iST215..GTT199708

89465SENSOR, OXYGEN

main89465-12400iAT211199708

main89465-20270iST215..E,G199708

main89465-20280iST210..E,G199708

main89465-21020iST21#..GT199708

main89465-21030iST215..GTT199708

89615SENSOR, KNOCK CONTROL

main89615-12030iAT211199708-199809

main89615-12080iST215..GTT199708

main89615-20030iST21#..E,G199708-199910

main89615-20060iST21#..GT199708

main89615-22030iAT211199912-200001

main89615-22040iAT211199708-199912

main89615-22050iAT211199809

main89615-32030iST21#..E,G200001

main89615-32040iST21#..E,G199910-199912

main89615-33020iST21#..E,G199708-199910

main89615-52010iAT211199909-199912

9043018008

main90430-18008

9165140625

main91651-40625

9 parts on this diagram · 10 diagrams in section
