Toyota CALDINA — STEERING WHEEL

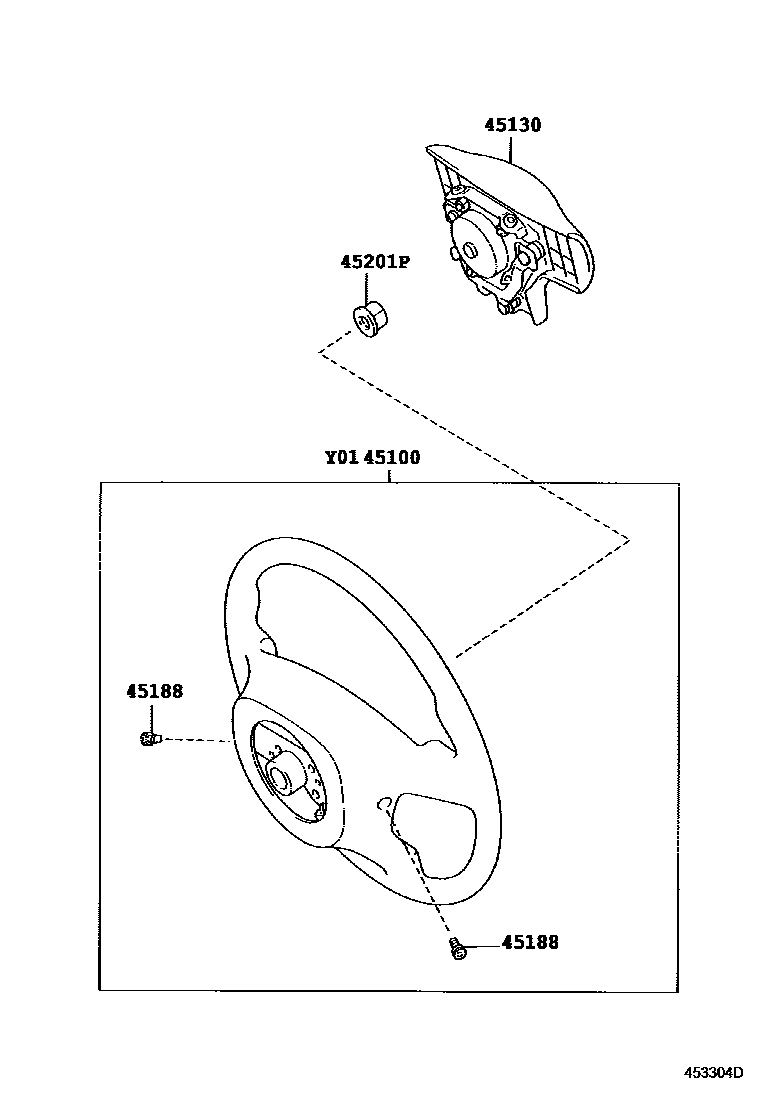

Parts diagram

45100WHEEL ASSY, STEERING

main45100-21050-C0i200209-200501

main45100-21060-B0i200501-200706

main45100-21060-C0i200306-200501

main45100-21070-C1supersedes 45100-21060-C0i200209-200311

main45100-21080-C1i200209-200311

main45100-21100-C1i200311-200501

main45100-21110-C0i200311-200312

main45100-21110-C1i200312-200501

main45100-21120-B0i200501-200706

main45100-21130-B0supersedes 45100-21050-B0i200501-200706

45130BUTTON ASSY, HORN

main45130-21040-C0i200209-200501

BLACK,TRIM2#

main45130-21050-B0supersedes 45130-21040-B0i200501-200706

main45130-21050-C0i200209-200501

45188SCREW, STEERING WHEEL PAD ATTACHING

main45188-60010×2i200209-200501

45201PNUT, STEERING WHEEL SET

main90179-12071i200209-200501

4 parts on this diagram · 3 diagrams in section

STEERING WHEEL for Toyota CALDINA

This section contains 5 genuine Toyota parts for the STEERING WHEEL system of the Toyota CALDINA. Key components include: WHEEL ASSY, STEERING, BUTTON ASSY, HORN, SCREW, STEERING WHEEL PAD ATTACHING, NUT, STEERING WHEEL SET, SWITCH & RELAY & COMPUTER.
