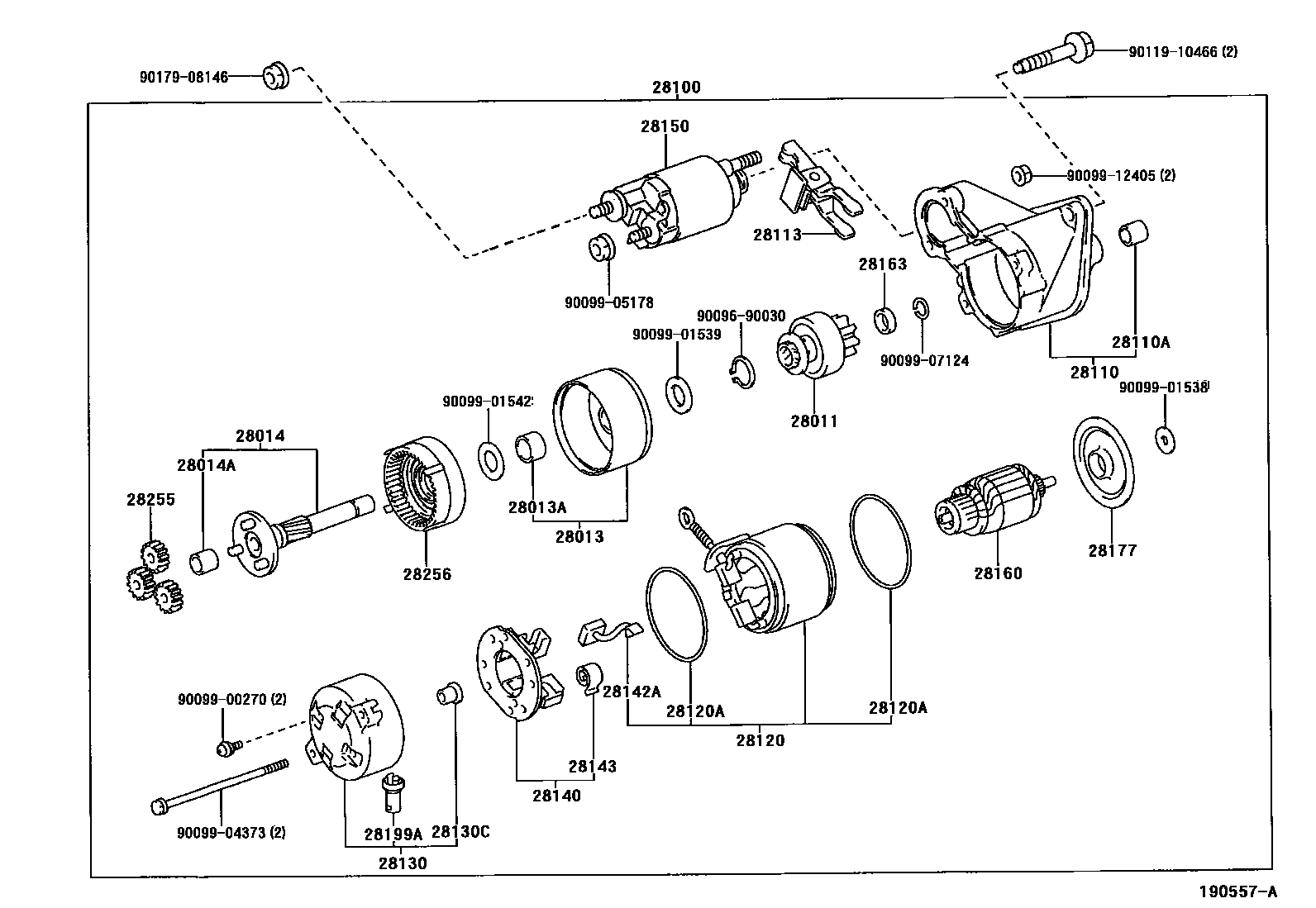

Toyota CALDINA — STARTER
28011CLUTCH SUB-ASSY, STARTER
12V 2.2KW
12V 1.4KW
12V 1.0KW
12V 1.2KW
28013BEARING, STARTER CENTER & SHOCK ABSORBER, NO.1
28013ABEARING, STARTER CENTER & SHOCK ABSORBER, NO.2
28014SHAFT SUB-ASSY, PLANET CARRIER
28014ABUSH OR BEARING, PLANET CARRIER SHAFT
28100STARTER ASSY
28110HOUSING ASSY, STARTER DRIVE
12V 1.4KW
12V 1.2KW
12V 1.0KW
12V 2.2KW
28110ABEARING(FOR STARTER HOUSING)
28113LEVER, STARTER PINION DRIVE
28120YOKE ASSY, STARTER
12V 1.2KW
12V 1.0KW
12V 1.4KW
12V 2.2KW
12V 0.8KW
12V 1.0KW
28120ARING, O(FOR STARTER YOKE)
28130FRAME ASSY, STARTER COMMUTATOR END
12V 1.0KW
12V 1.2KW
28130CBEARING, STARTER FLANGE
28140HOLDER ASSY, STARTER BRUSH
12V 2.2KW
12V 1.4KW
12V 1.0KW
12V 1.2KW
28142ASTARTER KIT
28143SPRING, STARTER BRUSH
12V 1.2KW
12V 1.0KW,1.4KW
12V 2.2KW
28150SWITCH ASSY, MAGNET STARTER
12V 2.2KW
12V 1.4KW
12V 2.2KW
12V 1.2KW
12V 1.0KW
28160ARMATURE ASSY, STARTER
12V 1.0KW
12V 2.2KW
12V 0.8KW
12V 1.0KW
12V 1.4KW
12V 1.2KW
28163NUT OR COLLAR, PINION STOP, STARTER
28177PLATE(FOR STARTER ARMATURE)
28199APROTECTOR, DUST STARTER
12V 1.0KW,2.2KW
12V 1.2KW
28255GEAR, PLANET
28256GEAR, STARTER INTERNAL
9009690030
main90096-90030
9009900270
main90099-00270
9009901538
main90099-01538
9009901539
main90099-01539
9009901542
main90099-01542
9009904373
main90099-04373
9009905178
main90099-05178
9009907124
main90099-07124
9009912405
main90099-12405
9011910466
main90119-10466
9017908146
main90179-08146
34 parts on this diagram · 7 diagrams in section
STARTER for Toyota CALDINA
This section contains 63 genuine Toyota parts for the STARTER system of the Toyota CALDINA. Key components include: CLUTCH SUB-ASSY, STARTER, BEARING, STARTER CENTER & SHOCK ABSORBER, NO.1, BEARING, STARTER CENTER & SHOCK ABSORBER, NO.2, SHAFT SUB-ASSY, PLANET CARRIER, BUSH OR BEARING, PLANET CARRIER SHAFT.
