Toyota CALDINA — SPEAKER

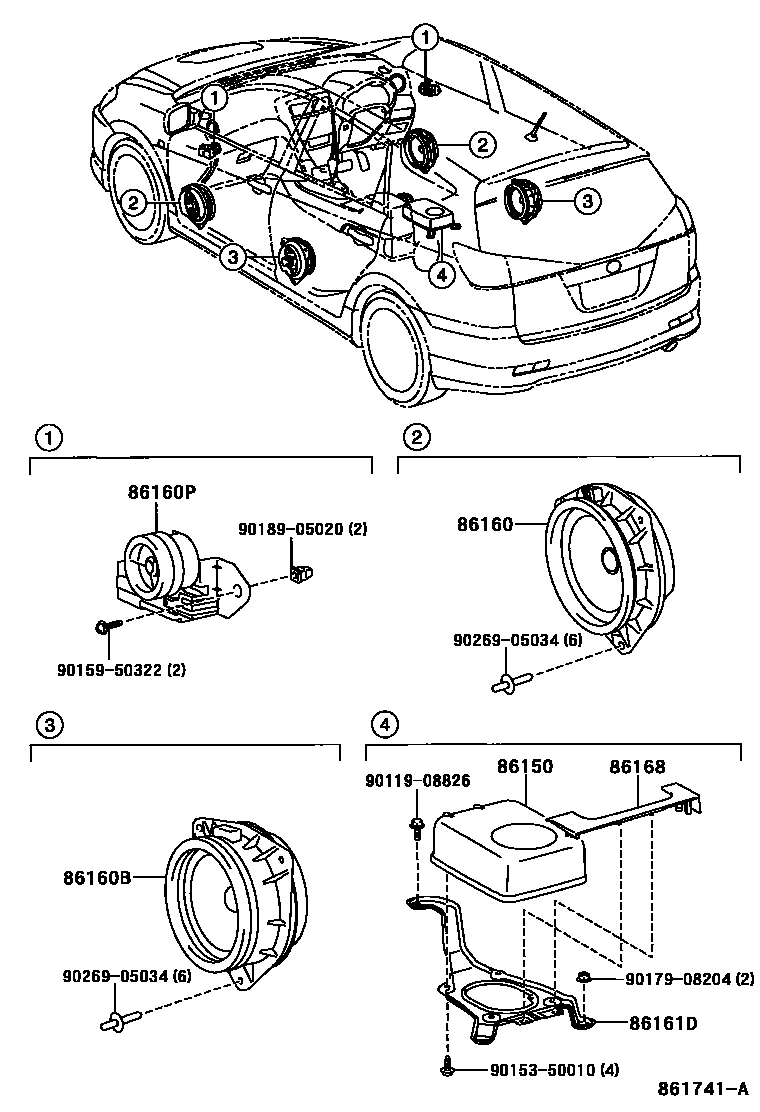

Parts diagram

86150SPEAKER ASSY, W/BOX, NO.1

main86150-21010i200209-200501

86160SPEAKER ASSY, FRONT NO.1

main86160-2B560×2i200209-200501

main86160-2B580×2i200501

86160BSPEAKER ASSY, REAR

main86160-2B570×2i200209-200501

main86160-52220×2i200501

86160PSPEAKER ASSY, FRONT NO.2

main86160-21100i200209-200501

main86160-21110i200209-200501

main86160-21140i200501

main86160-21150i200501

86161DBRACKET, SPEAKER MOUNTING, NO.1

main86161-21010i200209-200311

main86161-21011i200311-200501

86168COVER, SPEAKER MOUNTING

main86168-21010i200209-200501

9011908826

main90119-08826

9015350010

main90153-50010

9015950322

main90159-50322

9017908204

main90179-08204

9018905020

main90189-05020

9026905034

main90269-05034

12 parts on this diagram · 1 diagram in section

SPEAKER for Toyota CALDINA

This section contains 12 genuine Toyota parts for the SPEAKER system of the Toyota CALDINA. Key components include: SPEAKER ASSY, W/BOX, NO.1, SPEAKER ASSY, FRONT NO.1, SPEAKER ASSY, REAR, SPEAKER ASSY, FRONT NO.2, BRACKET, SPEAKER MOUNTING, NO.1.
