Toyota CALDINA — RADIATOR GRILLE

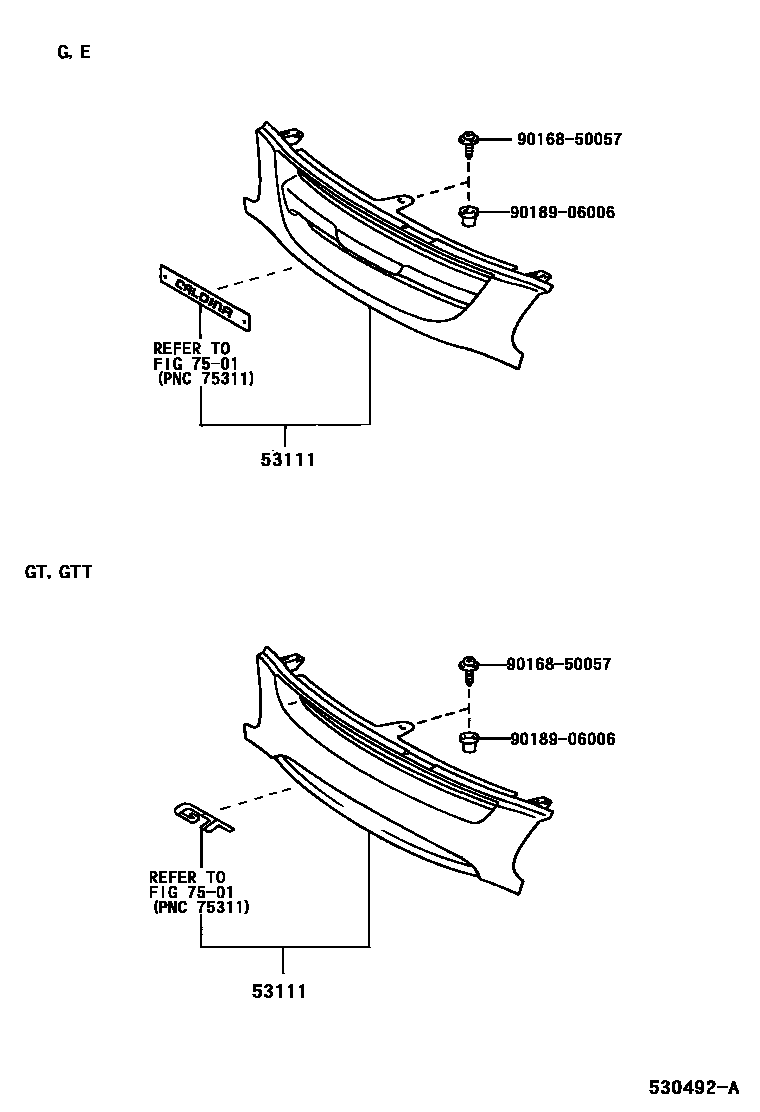

Parts diagram
53111GRILLE, RADIATOR
main53111-21040-A0i199708-199912
SUPER WHITE 2,040
main53111-21040-B0i199708-199912
SILVER ME,199
main53111-21040-C0i199708-199912
BLACK ME,2DB
main53111-21040-D0i199708-199912
RED MC.,2DP
main53111-21040-G0i199708-199912
DK.MOSS GREEN MM,2DQ
main53111-21040-J0i199708-199912
DK.BLUE M.M.,8L3
main53111-21050-A0i199708-199912
SUPER WHITE 2,040
main53111-21050-B0i199708-199912
SILVER ME,199
main53111-21050-C0i199708-199912
BLACK ME,2DB
main53111-21050-D0i199708-199912
RED MC.,2DP
main53111-21050-G0i199708-199912
DK.MOSS GREEN MM,2DQ
main53111-21050-J0i199708-199912
DK.BLUE M.M.,8L3
main53111-21060-A0i199912
SUPER WHITE 2,040
main53111-21060-A1i199912
SU. WHITE PM.,051
main53111-21060-B0i199912-200108
SILVER ME.,199
main53111-21060-B1i200108
SILVER ME.,1C0
main53111-21060-C0i199912
BLACK MC.,209
main53111-21060-D0i199912
RED MC.,3M8
main53111-21060-J0i199912
DK.BLUE MC.,8P4
main53111-21070-A0i199912
SUPER WHITE 2,040
main53111-21070-A1i199912
SU. WHITE PM.,051
main53111-21070-B0i199912-200108
SILVER ME.,199
main53111-21070-B1i200108
SILVER ME.,1C0
main53111-21070-C0i199912
BLACK MC.,209
main53111-21070-D0i199912
RED MC.,3M8
main53111-21070-J0i199912
DK.BLUE MC.,8P4
main53111-21080-A0i200108
TWISTER *(G),SUPER WHITE 2,040
main53111-21080-B1i200108
TWISTER *(G),SILVER ME.,1C0
main53111-21080-C0i200108
TWISTER *(G),BLACK MC.,209
7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)
→ Go to FIG 75-01
9016850057
main90168-50057
9018906006
main90189-06006

4 parts on this diagram · 3 diagrams in section

RADIATOR GRILLE for Toyota CALDINA

This section contains 8 genuine Toyota parts for the RADIATOR GRILLE system of the Toyota CALDINA. Key components include: GRILLE, RADIATOR, MOULDING, RADIATOR GRILLE, UPPER, MOULDING, RADIATOR GRILLE SIDE, RH, MOULDING, RADIATOR GRILLE SIDE, LH, EMBLEM & NAME PLATE (EXTERIOR & INTERIOR).
