Toyota CALDINA — PARTIAL ENGINE ASSEMBLY

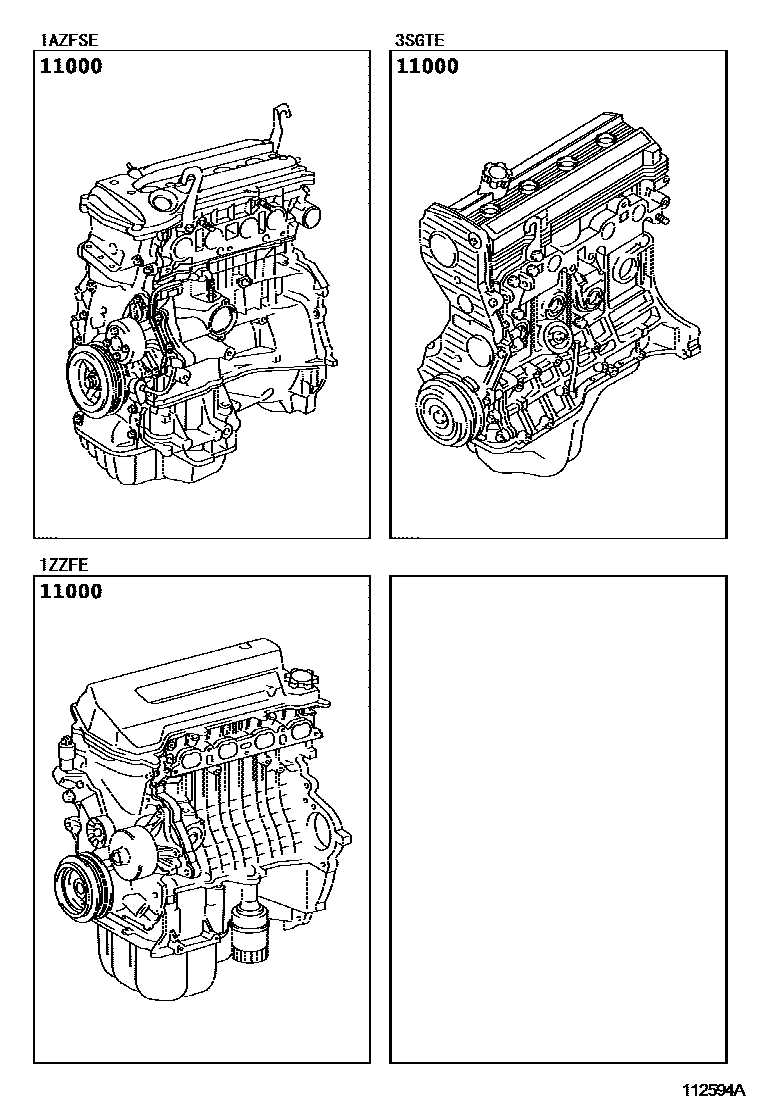

Parts diagram
11000ENGINE ASSY, PARTIAL
main19000-22300i200209-200301
sub19000-22302
sub16258-28030
sub16268-22101
sub16268-22161
main19000-22301i200301-200311
main19000-22790i200501
sub19000-22302
sub16258-28030
sub16268-22101
main19000-28150i200209-200501
sub19000-28151
main19000-28330i200501
main19000-88515i200209-200311
main19000-88750i200311-200501

1 parts on this diagram · 1 diagram in section
