Toyota CALDINA — PARTIAL ENGINE ASSEMBLY

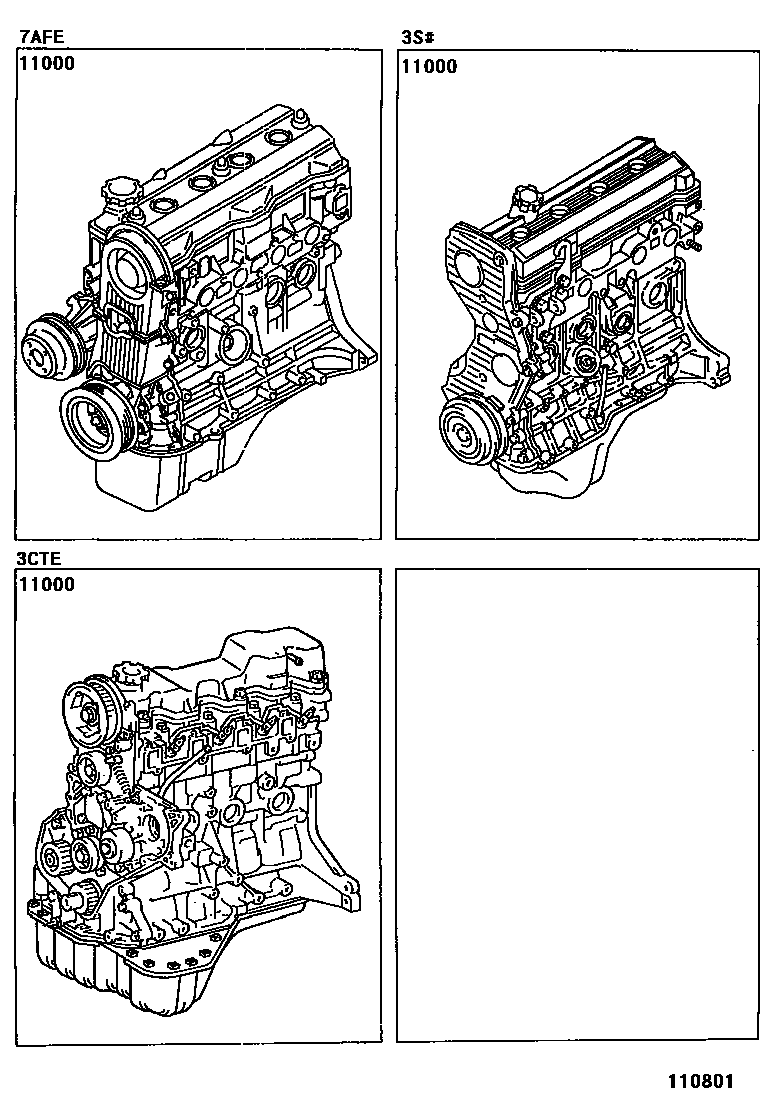

Parts diagram

11000ENGINE ASSY, PARTIAL

main19000-1A500i199708

main19000-6A180i199708-199808

main19000-6A181i199808-200208

main19000-7A240i199708

main19000-7A250i199708

main19000-88510i199708

main19000-88605i199708

main19000-88609i199912

1 parts on this diagram · 1 diagram in section
