Toyota CALDINA — MIRROR

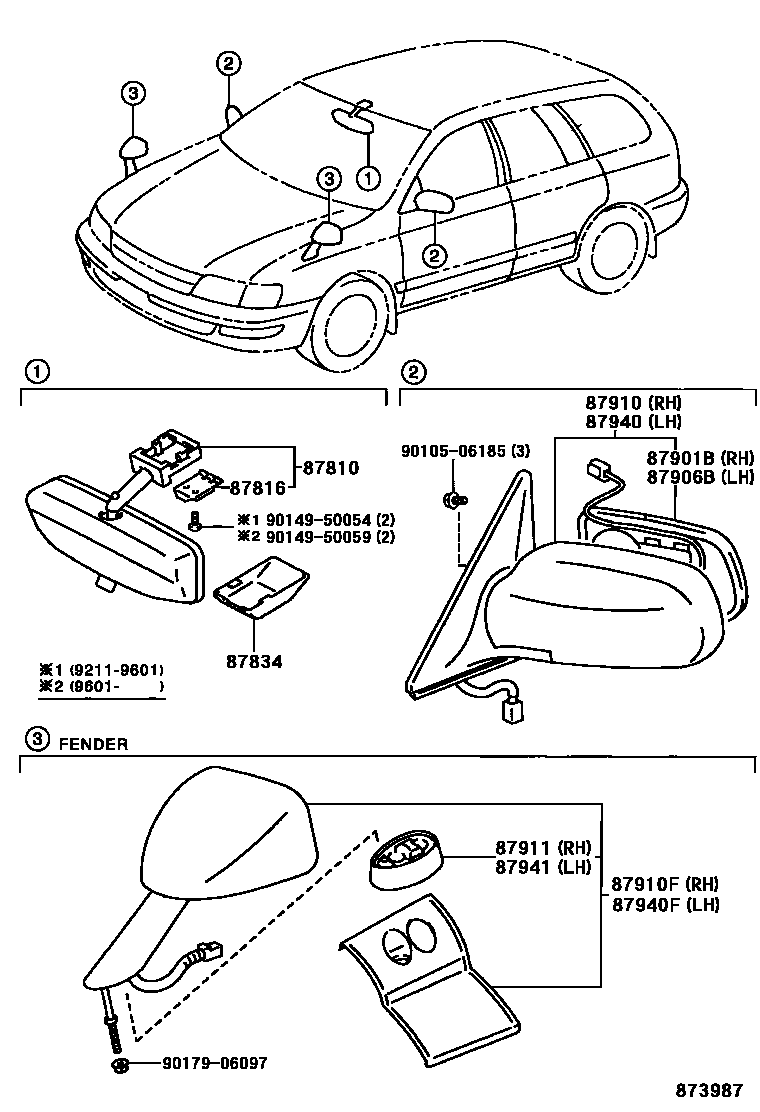

Parts diagram

87810MIRROR ASSY, INNER REAR VIEW

main87810-14170-C0i199211-199402

BLACK,TRIM2#

87816SPRING, INNER REAR VIEW MIRROR

main74372-30030i199211

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87834-20080-B0i199211-199402

GRAY,TRIM2#

main87834-20080-B7i199805

BLUE GRAY,TRIM1#

87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH

main87931-21102i199601-199708

main87931-2B500i199211

main87931-2B510i199601

main87931-2B530i199211-199601

87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH

main87961-21102i199601-199708

main87961-2B500i199211

main87961-2B510i199211-199601

main87961-2B530i199211-199601

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-21020i199601

main87910-21030-B0i199610-199708

main87910-21040i199211

main87910-21060i199211-199601

main87910-21061i199601

main87910-21070i199211-199402

main87910-21071i199402-199601

main87910-21080-B0i199610-199708

main87910-21090i199211-199402

main87910-21091i199402-199601

main87910-21092i199601-199708

main87910-21100i199211-199402

main87910-21101i199402-199601

main87910-21102i199601-199708

main87910-2B500i199211-199601

87910FMIRROR ASSY, FENDER, RH

main87910-21050i199211-199402

main87910-2B640i199211-199402

87911GASKET, OUTER REAR VIEW MIRROR, RH

main87911-20240i199211-199502

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-21020i199601

main87940-21030-B0i199610-199708

main87940-21040i199211

main87940-21060i199211-199601

main87940-21061i199601

main87940-21070i199211-199402

main87940-21071i199402-199601

main87940-21080-B0i199610-199708

main87940-21090i199211-199402

main87940-21091i199402-199601

main87940-21092i199601-199708

main87940-21100i199211-199402

main87940-21101i199402-199601

main87940-21102i199601-199708

main87940-2B500i199211-199601

87940FMIRROR ASSY, FENDER, LH

main87940-21050i199211-199402

main87940-2B640i199211-199402

87941GASKET, OUTER REAR VIEW MIRROR, LH

main87941-20260i199502-199601

9010506185

main90105-06185

9014950054

main90149-50054

9014950059

main90149-50059

9017906097

main90179-06097

15 parts on this diagram · 1 diagram in section

MIRROR for Toyota CALDINA

This section contains 15 genuine Toyota parts for the MIRROR system of the Toyota CALDINA. Key components include: MIRROR ASSY, INNER REAR VIEW, SPRING, INNER REAR VIEW MIRROR, COVER, INNER REAR VIEW MIRROR STAY HOLDER, MIRROR SUB-ASSY, OUTER REAR VIEW, RH, MIRROR SUB-ASSY, OUTER REAR VIEW, LH.
