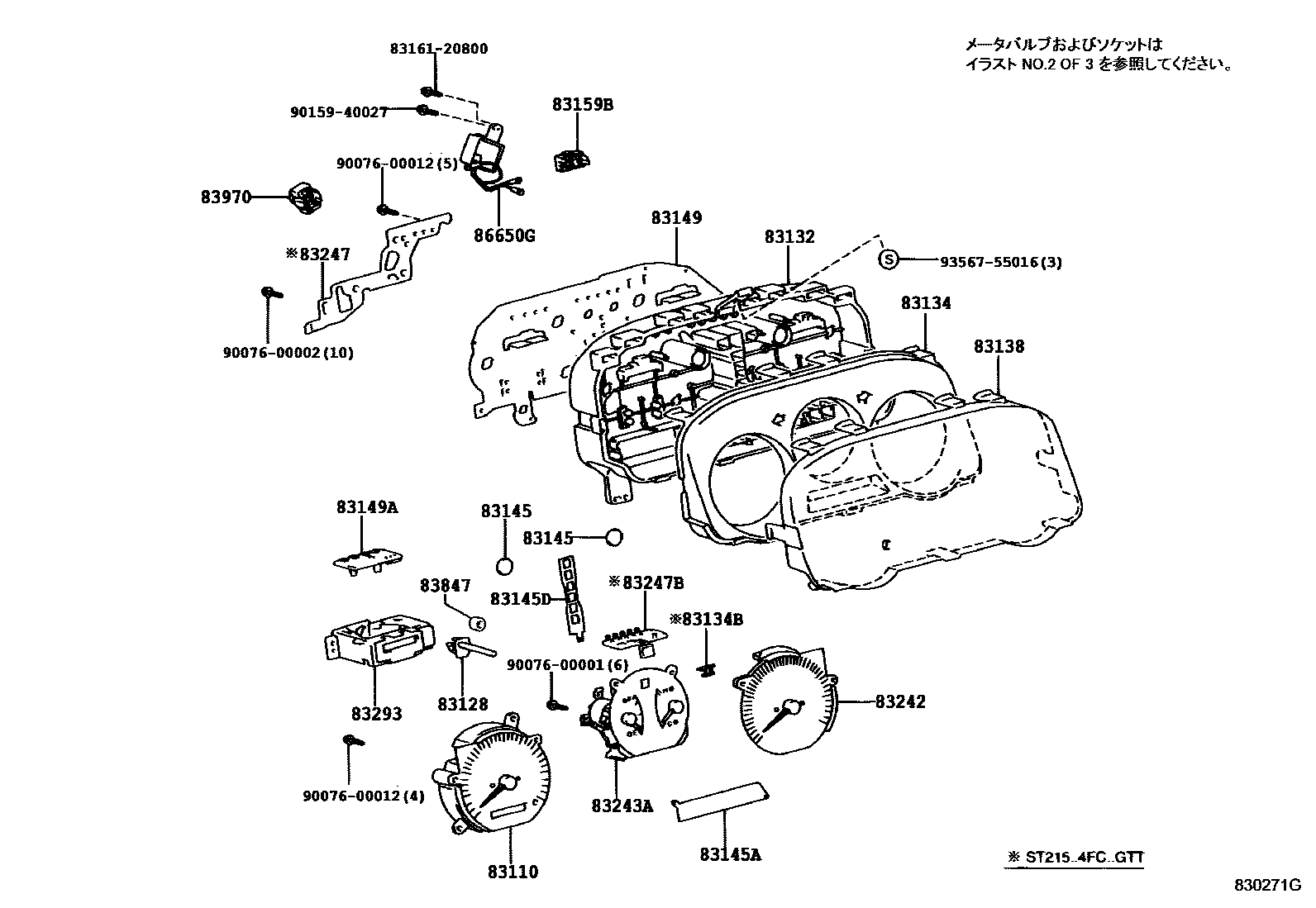

Toyota CALDINA — METER
83110SPEEDOMETER ASSY
83128KNOB, TRIP COUNTER
83132CASE, COMBINATION METER
83134COVER, COMBINATION METER, NO.1
83134BCOVER, COMBINATION METER, NO.2
83138GLASS, SPEEDOMETER
83145LENS, METER, NO.1
83145ALENS, METER, NO.2
83145DLENS, METER, NO.5
83149PLATE, METER CIRCUIT
83149APLATE, METER CIRCUIT, NO.2
83159BRELAY ASSY, METER
83242TACHOMETER ASSY, ENGINE
83243AGAUGE SUB-ASSY, FUEL RECEIVER
83247PLATE, METER CIRCUIT
83247BPLATE, METER CIRCUIT, NO.2
83293COMPUTER, TOTAL COUNTER MODULE
83847CUSHION, COMBINATION SPEEDOMETER, NO.1
83970BUZZER ASSY, REVERSE WARNING
86650GBUZZER ASSY
8316120800CASE, COMBINATION METER MIRROR, NO.1
main83161-20800
9007600001
main90076-00001
9007600002
main90076-00002
9007600012
main90076-00012
9015940027
main90159-40027
9356755016
main93567-55016
26 parts on this diagram · 5 diagrams in section
METER for Toyota CALDINA
This section contains 30 genuine Toyota parts for the METER system of the Toyota CALDINA. Key components include: BULB, COMBINATION METER, NO.1, SPEEDOMETER ASSY, KNOB, TRIP COUNTER, CASE, COMBINATION METER, PLATE, COMBINATION METER, NO.1.
