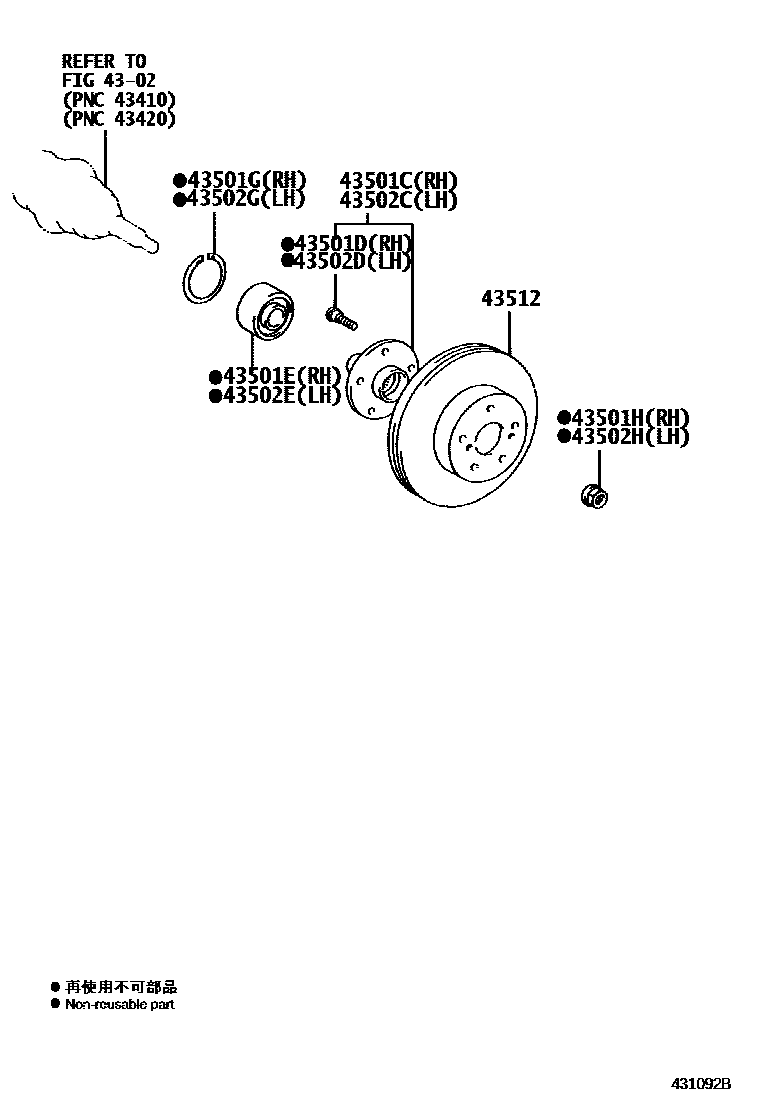

Toyota CALDINA — FRONT AXLE HUB

4302FRONT DRIVE SHAFT

→ Go to FIG 43-02

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-21010i200501-200706

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049×5i200209-200501

43501EBEARING (FOR FRONT AXLE HUB RH)

main90363-40066i200209-200501

43501GRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90521-79002i200209-200501

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001i200209-200501

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-21010i200209-200501

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049×5i200501

43502EBEARING (FOR FRONT AXLE HUB LH)

main90363-40066i200501

43502GRING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90521-79002i200209-200501

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001i200209-200501

43512DISC, FRONT

main43512-20711×2i200501-200706

main43512-21030×2i200209-200402

main43512-21031×2i200501-200706

main43512-63010×2i200209-200401

12 parts on this diagram · 1 diagram in section

FRONT AXLE HUB for Toyota CALDINA

This section contains 12 genuine Toyota parts for the FRONT AXLE HUB system of the Toyota CALDINA. Key components include: FRONT DRIVE SHAFT, HUB SUB-ASSY, FRONT AXLE, RH, BOLT, HUB (FOR FRONT AXLE RH), BEARING (FOR FRONT AXLE HUB RH), RING, HOLE SNAP (FOR FRONT AXLE HUB RH).
