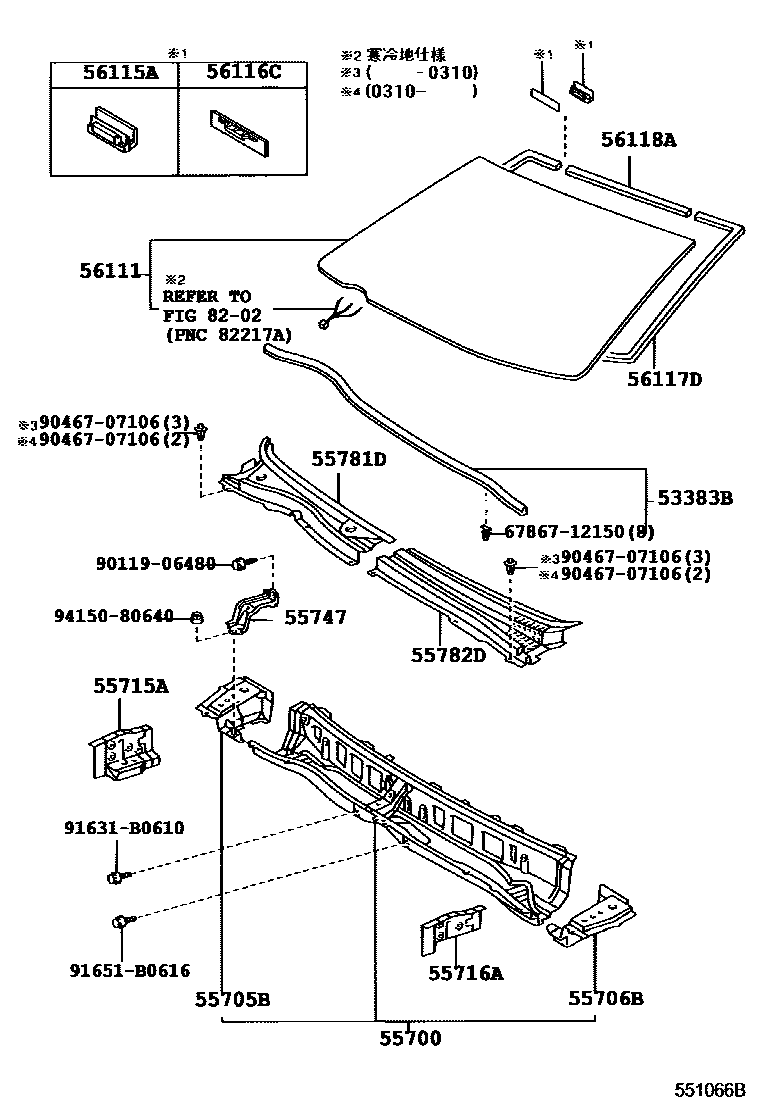

Toyota CALDINA — COWL PANEL & WINDSHIELD GLASS

53383BSEAL, HOOD TO COWL TOP

main53383-20220i200501

55700PANEL ASSY, FRONT

main55700-21070i200209-200501

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-21010i200501

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-21010i200209-200501

55715ABRACE, COWL TOP TO APRON, RH

main55715-21020i200209-200501

55716ABRACE, COWL TOP TO APRON, LH

main55716-21020i200209-200501

55747STAY, COWL TOP, INNER

main55747-21020i200209-200501

55781DLOUVER, COWL TOP VENTILATOR, RH

main55781-21020i200501

55782DLOUVER, COWL TOP VENTILATOR, LH

main55782-21030supersedes 55782-21020i200501

56111GLASS, WINDSHIELD

main56111-21130supersedes 56111-21170i200402-200501

main56111-21140supersedes 56111-21170i200209-200501

main56111-21180supersedes 56111-21170i200501

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30100×2i200209-200501

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050×2i200209-200501

56117DDAM, WINDSHIELD GLASS ADHESIVE

main56117-47010i200209-200501

56118ADAM, WINDOW GLASS ADHESIVE, NO.2

main64813-52010i200209-200501

8202WIRING & CLAMP

→ Go to FIG 82-02

6786712150CLIP, DOOR WEATHERSTRIP

main67867-12150

9011906480

main90119-06480

9046707106

main90467-07106

91631B0610

main91631-B0610

91651B0616

main91651-B0616

9415080640

main94150-80640

21 parts on this diagram · 1 diagram in section

COWL PANEL & WINDSHIELD GLASS for Toyota CALDINA

This section contains 21 genuine Toyota parts for the COWL PANEL & WINDSHIELD GLASS system of the Toyota CALDINA. Key components include: SEAL, HOOD TO COWL TOP, PANEL ASSY, FRONT, PANEL SUB-ASSY, COWL TOP SIDE, RH, PANEL SUB-ASSY, COWL TOP SIDE, LH, BRACE, COWL TOP TO APRON, RH.
