Toyota CALDINA — COWL PANEL & WINDSHIELD GLASS

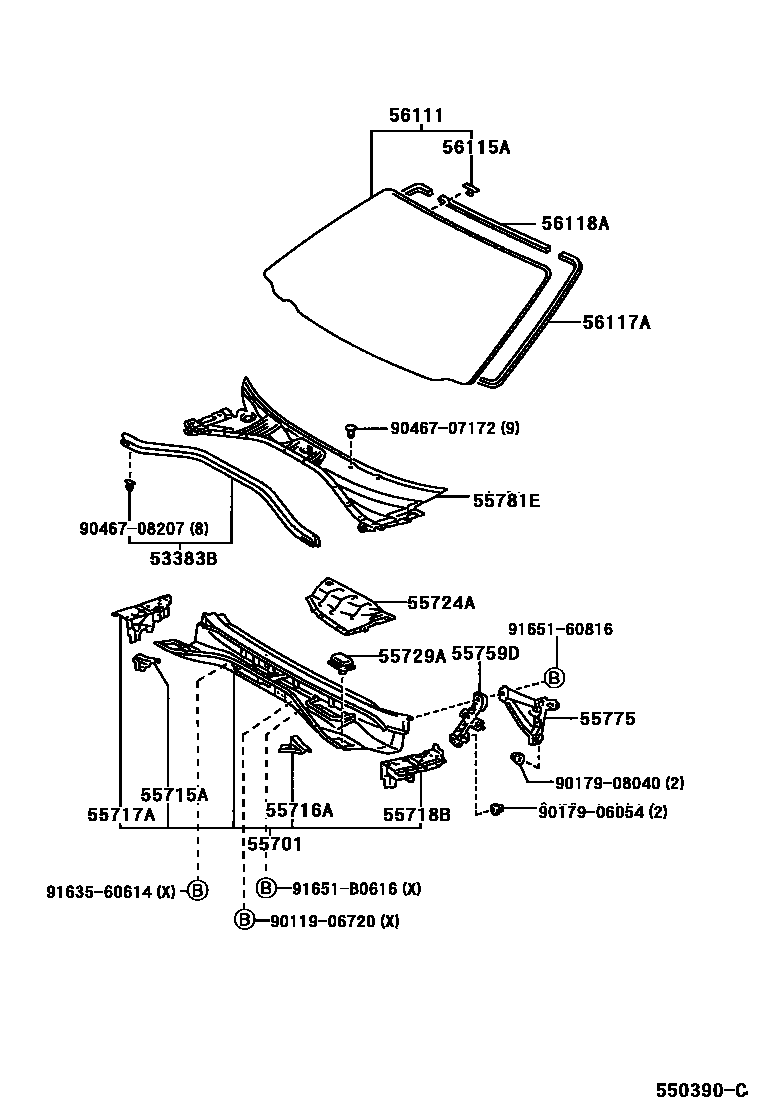

Parts diagram

53383BSEAL, HOOD TO COWL TOP

main53383-21010i199708-199805

main53383-21011i199805

55701PANEL SUB-ASSY, COWL

main55700-21060i199708

55715ABRACE, COWL TOP TO APRON, RH

main55715-21010i199708

55716ABRACE, COWL TOP TO APRON, LH

main55716-21010i199708

55717APANEL, COWL TOP SIDE, INNER RH

main55717-21010i199708

55718BPANEL, COWL TOP SIDE, INNER LH

main55718-21010i199708

55724AREINFORCEMENT, COWL TOP SIDE, LH

main55724-21010i199708

55729ACOVER, COWL PANEL HOLE

main55729-21010i199708

55759DBRACKET, COWL TOP INNER STAY MOUNTING

main55759-20070i199708-199711

main55759-21010i199711

55775BRACKET, COWL TOP INNER TO PILLAR BRACE, LH

main55775-20080i199708

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-21010i199708

56111GLASS, WINDSHIELD

main56101-21010i199708

main56101-21020i199708

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-33020×2i199708

56117ADAM, WINDOW GLASS ADHESIVE

main56117-47010i199708-200209

56118ADAM, WINDOW GLASS ADHESIVE, NO.2

main56118-21010i199708

9011906720

main90119-06720

9017906054

main90179-06054

9017908040

main90179-08040

9046707172

main90467-07172

9046708207

main90467-08207

9163560614

main91635-60614

9165160816

main91651-60816

91651B0616

main91651-B0616

23 parts on this diagram · 1 diagram in section

COWL PANEL & WINDSHIELD GLASS for Toyota CALDINA

This section contains 23 genuine Toyota parts for the COWL PANEL & WINDSHIELD GLASS system of the Toyota CALDINA. Key components include: SEAL, HOOD TO COWL TOP, PANEL SUB-ASSY, COWL, BRACE, COWL TOP TO APRON, RH, BRACE, COWL TOP TO APRON, LH, PANEL, COWL TOP SIDE, INNER RH.
