Toyota CALDINA — CONSOLE BOX & BRACKET

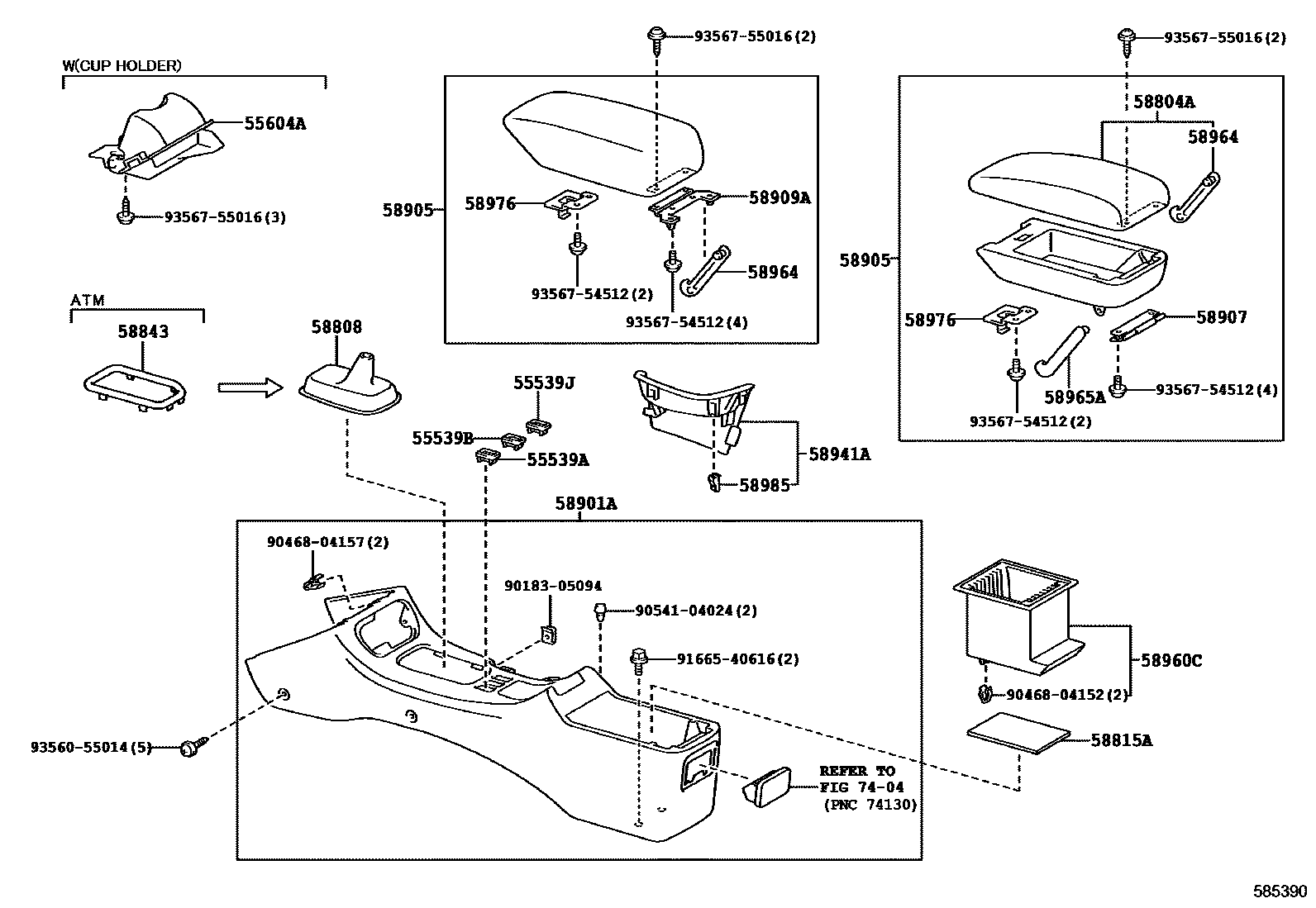

Parts diagram
55539ACOVER, SPARE SWITCH HOLE
main55539-20020-C0i199211-199402
BLACK,TRIM2#
main55539-20020-P0i199402-199502
SHADOW GRAY,TRIM1#
55539BCOVER, SPARE SWITCH HOLE, NO.2
main55539-20020-C0i199211-199402
BLACK,TRIM2#
main55539-20020-P0i199502-199601
SHADOW GRAY,TRIM1#
55539JCOVER, SPARE SWITCH HOLE
main55539-20020-C0i199211-199402
BLACK,TRIM2#
main55539-20020-P0i199402-199502
SHADOW GRAY,TRIM1#
55604AHOLDER SUB-ASSY, INSTRUMENT PANEL CUP
main55604-20050-B1i199402-199502
SHADOW GRAY,TRIM1#
main55604-20050-C0i199211-199402
BLACK,TRIM2#
58804APANEL SUB-ASSY, CONSOLE, UPPER
main58804-20110-B2i199402-199502
SHADOW GRAY,TRIM1#
main58804-20110-C0i199211-199402
BLACK,TRIM2#
main58804-20190-B0i199601-199708
SHADOW GRAY,TRIM1#
58808COVER SUB-ASSY, SHIFTING HOLE
main58808-20100-C0i199211-199402
BLACK,TRIM2#
main58808-20130-C0i199601-199908
BLACK,TRIM1#
main58808-21010-C0i199908
BLACK,TRIM1#
58815ACARPET, CONSOLE BOX
main58815-20030-C0i199211-199402
BLACK,TRIM2#
main58815-20060i199601-199707
main58815-21010i199707
58843BEZEL, SHIFTING HOLE
main58843-20060i199211-199502
58901ABOX SUB-ASSY, CONSOLE, REAR
main58901-20120-B2i199402-199601
SHADOW GRAY,TRIM1#
main58901-20120-C1i199211-199402
BLACK,TRIM2#
main58901-20140-B0i199601
SHADOW GRAY,TRIM1#
main58901-21010-B1i199402-199601
SHADOW GRAY,TRIM1#
main58901-21010-C1i199211-199402
BLACK,TRIM2#
main58901-21020-B0i199601
SHADOW GRAY,TRIM1#
58905DOOR SUB-ASSY, CONSOLE COMPARTMENT
main58905-20170-B1i199402-199601
SHADOW GRAY,TRIM1#
main58905-20170-C0i199211-199402
BLACK,TRIM2#
main58905-20180-B1i199402-199601
SHADOW GRAY,TRIM1#
main58905-20180-C1i199211-199402
BLACK,TRIM2#
main58905-20250-B0i199601
SHADOW GRAY,TRIM1#
main58905-20260-B0i199601-199708
SHADOW GRAY,TRIM1#
sub58905-22900
sub93567-54512
main58905-21020-B1i199610-199708
sub58905-22900
sub58804-21020
sub93567-54512
58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR
main58907-20020i199211-199502
main58907-20030-C0i199601-199708
BLACK,TRIM1#
sub58907-12050
58909ASTOPPER SUB-ASSY, CONSOLE COMPARTMENT DOOR
main58909-20030i199211-199601
58941ACOVER, PARKING BRAKE HOLE
main58904-20030-B1i199402-199601
SHADOW GRAY,TRIM1#
main58904-20030-C0i199211-199402
BLACK,TRIM2#
main58904-20050-B0i199601
SHADOW GRAY,TRIM1#
main58904-21010-B0i199402-199601
SHADOW GRAY,TRIM1#
main58904-21010-C0i199211-199402
BLACK,TRIM2#
58960CHOLDER ASSY, CASSETTE CASE
main58960-20050i199402-199502
58964STOPPER, CONSOLE COMPARTMENT DOOR, NO.1
main58964-12040i199211-199601
main58964-20030-C0i199601
BLACK,TRIM1#
main58964-20040i199601-199708
main58965-12040i199211-199601
58965ASTOPPER, CONSOLE COMPARTMENT DOOR, NO.2
main58964-12040i199211-199601
main58965-12040i199211-199601
main58965-20040-C0i199601
BLACK,TRIM1#
main58965-20050i199601-199708
58976STRIKER, CONSOLE COMPARTMENT DOOR LOCK
main58976-20020i199211-199601
58985RETAINER, CONSOLE BOX
main58985-20050i199211-199502
7404
9018305094
main90183-05094
9046804152
main90468-04152
9046804157
main90468-04157
9054104024
main90541-04024
9166540616
main91665-40616
9356055014
main93560-55014
9356754512
main93567-54512
9356755016
main93567-55016

27 parts on this diagram · 3 diagrams in section
