Toyota CALDINA — CLUTCH & RELEASE FORK

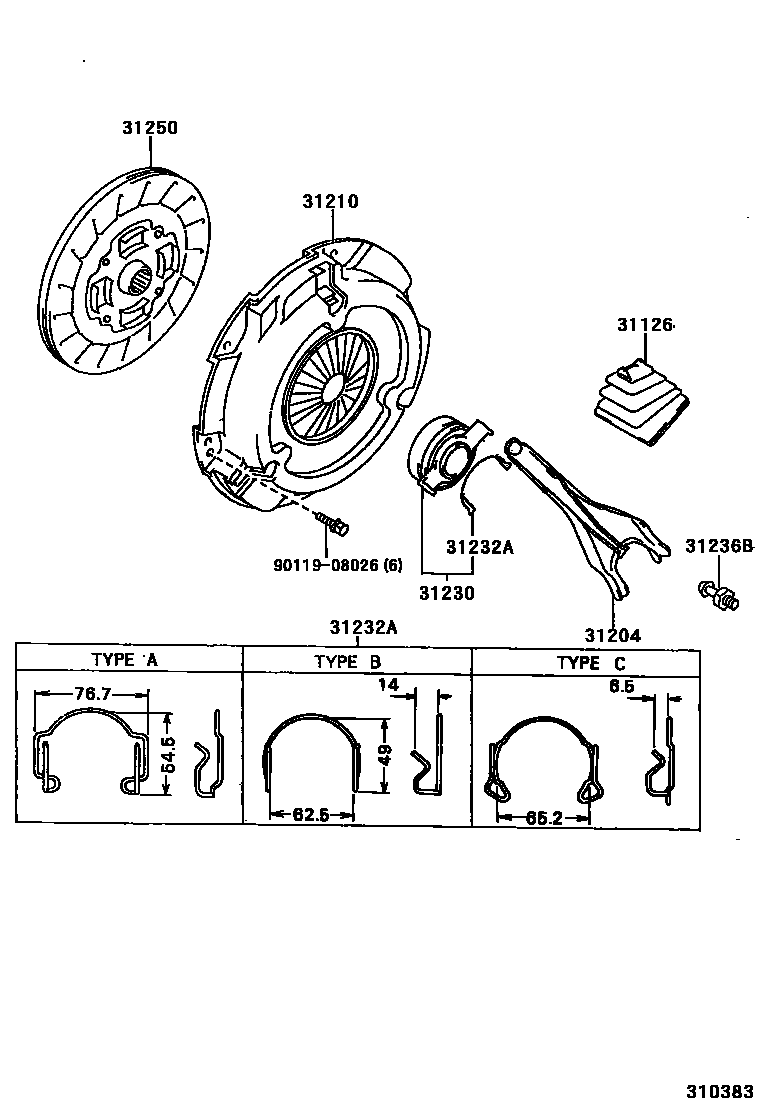

Parts diagram

31126BOOT, CLUTCH RELEASE FORK

main31126-12051i199708-200209

main31126-20080i199708-200209

main31126-32010i199708-200209

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-17010i199708-200209

main31204-20100i199708-200209

main31204-20111i199708-200209

31210COVER ASSY, CLUTCH

main31210-12201i199708

main31210-20331i199708

main31210-20350i199708

31230BEARING ASSY, CLUTCH RELEASE

main31230-12170i199708-200101

main31230-12171i200101-200201

main31230-12191i200201-200209

main31230-20190i199708-199811

main31230-20191i199811-200209

main31230-32060i199708-200209

31232ACLIP, RELEASE BEARING HUB

main31232-12050i199708-199912

main31232-12060i199708-199912

main31232-12070i199708-200209

main31232-20020i199708-200209

main31232-20031i199708-200209

main31232-32050i199708-200209

31236BSUPPORT, RELEASE FORK

main31236-12020i199708-200209

main31236-20070i199708-200209

main31236-32010i199708-200209

31250DISC ASSY, CLUTCH

main31250-17052i199708

main31250-20271i199708

main31250-20280i199708

9011908026

main90119-08026

8 parts on this diagram · 3 diagrams in section

CLUTCH & RELEASE FORK for Toyota CALDINA

This section contains 8 genuine Toyota parts for the CLUTCH & RELEASE FORK system of the Toyota CALDINA. Key components include: BOOT, CLUTCH RELEASE FORK, FORK SUB-ASSY, CLUTCH RELEASE, COVER ASSY, CLUTCH, BEARING ASSY, CLUTCH RELEASE, CLIP, RELEASE BEARING HUB.
