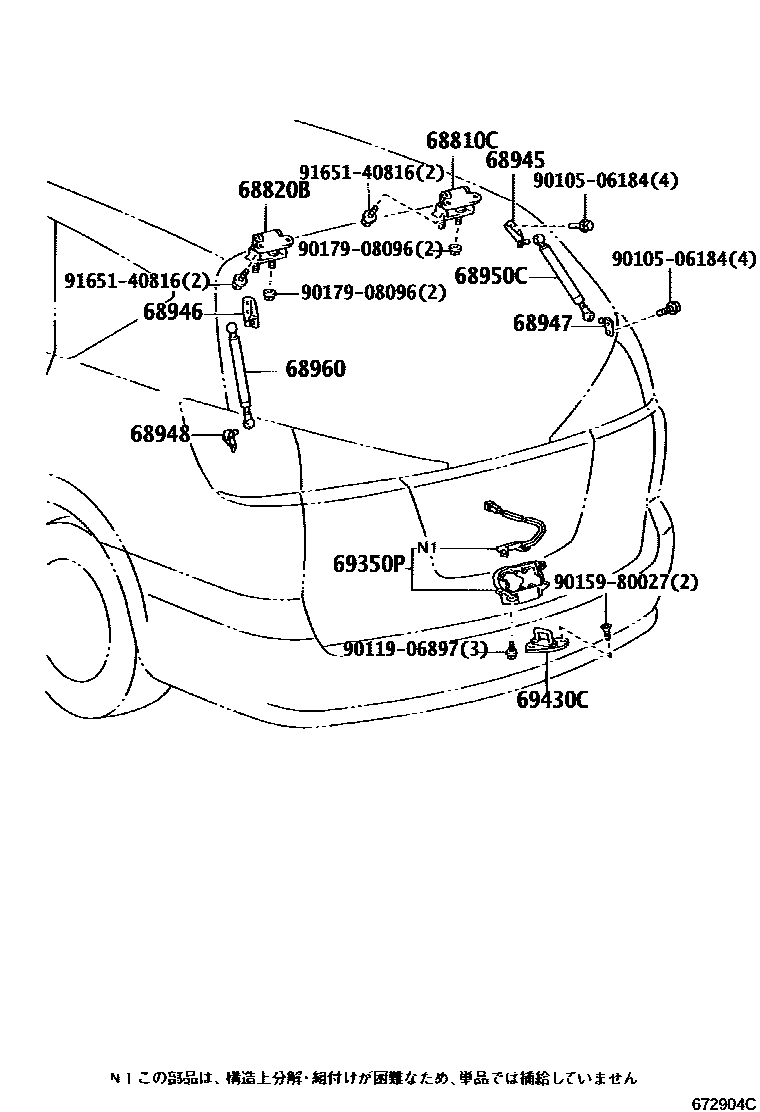

Toyota CALDINA — BACK DOOR LOCK & HANDLE
68810CHINGE ASSY, BACK DOOR, RH
68820BHINGE ASSY, BACK DOOR, LH
68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH
68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH
68947BRACKET, BACK DOOR DAMPER STAY, LOWER RH
68948BRACKET, BACK DOOR DAMPER STAY, LOWER LH
68950CSTAY ASSY, BACK DOOR, RH
68960STAY ASSY, BACK DOOR, LH
69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH
69430CSTRIKER ASSY, BACK DOOR LOCK
9010506184
main90105-06184
9011906897
main90119-06897
9015980027
main90159-80027
9017908096
main90179-08096
9165140816
main91651-40816
15 parts on this diagram · 1 diagram in section
BACK DOOR LOCK & HANDLE for Toyota CALDINA
This section contains 15 genuine Toyota parts for the BACK DOOR LOCK & HANDLE system of the Toyota CALDINA. Key components include: HINGE ASSY, BACK DOOR, RH, HINGE ASSY, BACK DOOR, LH, BRACKET, BACK DOOR DAMPER STAY, UPPER RH, BRACKET, BACK DOOR DAMPER STAY, UPPER LH, BRACKET, BACK DOOR DAMPER STAY, LOWER RH.
