Toyota CALDINA — BACK DOOR LOCK & HANDLE

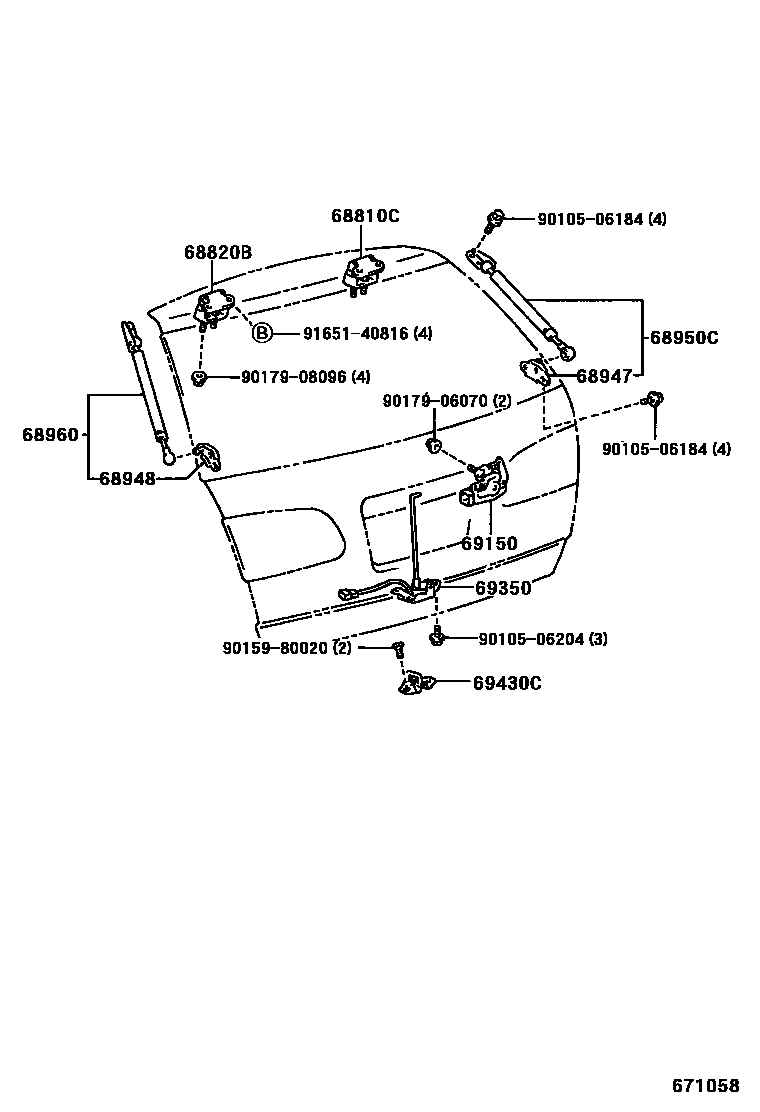

Parts diagram

68810CHINGE ASSY, BACK DOOR, RH

main68810-21050i199905

main68810-44010i199708-199905

68820BHINGE ASSY, BACK DOOR, LH

main68810-21050i199905

main68810-44010i199708-199905

68947BRACKET, BACK DOOR DAMPER STAY, LOWER RH

main68947-21020i199708

68948BRACKET, BACK DOOR DAMPER STAY, LOWER LH

main68948-21010i199708

68950CSTAY ASSY, BACK DOOR, RH

main68950-80058i199708

main68950-80059i199708

68960STAY ASSY, BACK DOOR, LH

main68960-80010i199708

main68960-80011i199708

69150ACTUATOR ASSY, BACK DOOR LOCK

main69150-21050i199708-199912

main69150-21060i199912

69350LOCK ASSY, BACK DOOR

main69350-21090i199708

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-21010i199708

9010506184

main90105-06184

9010506204

main90105-06204

9015980020

main90159-80020

9017906070

main90179-06070

9017908096

main90179-08096

9165140816

main91651-40816

15 parts on this diagram · 1 diagram in section

BACK DOOR LOCK & HANDLE for Toyota CALDINA

This section contains 15 genuine Toyota parts for the BACK DOOR LOCK & HANDLE system of the Toyota CALDINA. Key components include: HINGE ASSY, BACK DOOR, RH, HINGE ASSY, BACK DOOR, LH, BRACKET, BACK DOOR DAMPER STAY, LOWER RH, BRACKET, BACK DOOR DAMPER STAY, LOWER LH, STAY ASSY, BACK DOOR, RH.
