Toyota CALDINA — ARMREST & VISOR

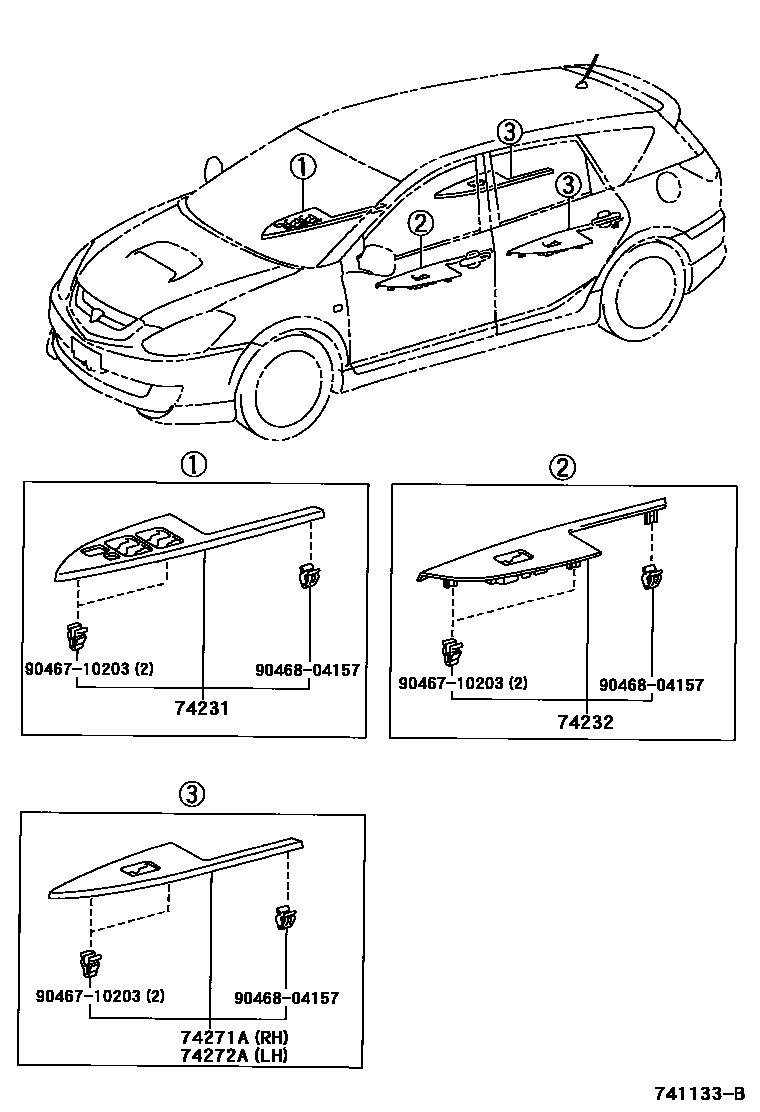

Parts diagram

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-21050i200209-200501

main74231-21060i200209-200311

main74231-21061i200501-200706

main74231-21070i200306-200501

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-21050i200209-200501

main74232-21060i200209-200311

main74232-21061i200311-200501

main74232-21070i200501-200706

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main74271-21010i200209-200501

main74271-21020i200209-200311

main74271-21021i200311-200501

main74271-21030i200306-200501

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main74272-21010i200209-200501

main74272-21020i200209-200311

main74272-21021i200501-200706

main74272-21030i200306-200501

9046710203

main90467-10203

9046804157

main90468-04157

6 parts on this diagram · 2 diagrams in section

ARMREST & VISOR for Toyota CALDINA

This section contains 15 genuine Toyota parts for the ARMREST & VISOR system of the Toyota CALDINA. Key components include: PANEL, FRONT ARMREST BASE, UPPER RH, PANEL, FRONT ARMREST BASE, UPPER LH, PANEL, REAR DOOR ARMREST BASE, UPPER RH, PANEL, REAR DOOR ARMREST BASE, UPPER LH, VISOR ASSY, RH.
