Toyota CALDINA — ARMREST & VISOR

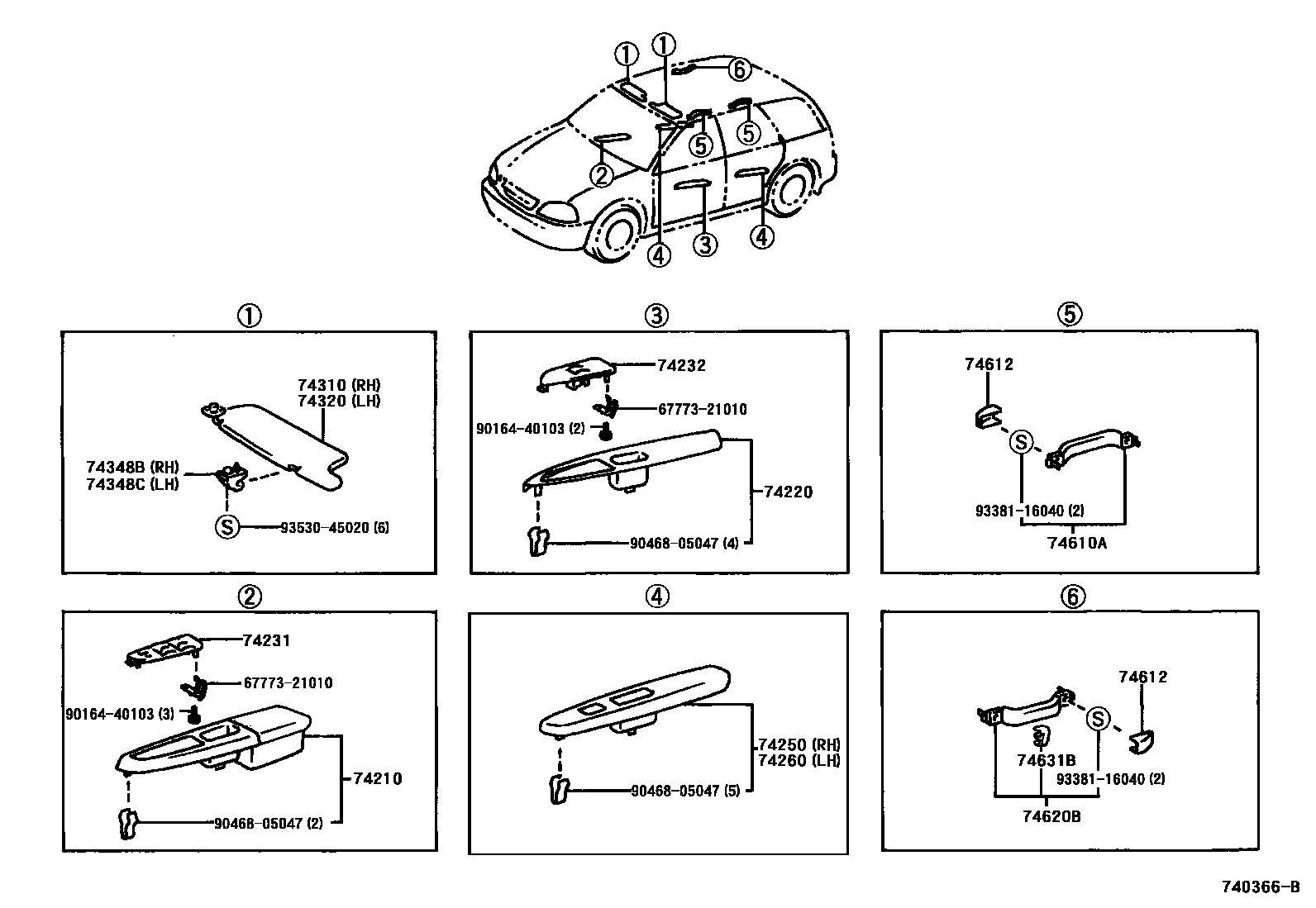

Parts diagram
74210ARMREST ASSY, FRONT, RH
main74210-21020-B0i199708-199912
SHADOW GRAY,TRIM1#
main74210-21020-C0i199912
BLACK,TRIM2#
74220ARMREST ASSY, FRONT, LH
main74220-21020-B0i199708-199912
SHADOW GRAY,TRIM1#
main74220-21020-C0i199912
BLACK,TRIM2#
74231PANEL, FRONT ARMREST BASE, UPPER RH
main74231-21010-B0i199708-199912
SHADOW GRAY,TRIM1#
main74231-21010-C0i199912
BLACK,TRIM2#
main74231-21020-B0i199711-199912
SHADOW GRAY,TRIM1#
main74231-21030i199912
main74231-21040i199912
74232PANEL, FRONT ARMREST BASE, UPPER LH
main74232-21010-B0i199708-199912
SHADOW GRAY,TRIM1#
main74232-21010-C0i199912
BLACK,TRIM2#
main74232-21020-B0i199708-199912
main74232-21030i199912
main74232-21040i199912
74250ARMREST ASSY, REAR RH
main74250-21020-B0i199708-199912
SHADOW GRAY,TRIM1#
main74250-21020-C0i199912
BLACK,TRIM2#
74260ARMREST ASSY, REAR LH
main74260-21020-B0i199708-199912
SHADOW GRAY,TRIM1#
main74260-21020-C0i199912
BLACK,TRIM2#
74310VISOR ASSY, RH
main74310-21050-B1i199708-199912
MEDIUM CHARCOAL,TRIM1#
main74310-21060-B1i199708-199912
MEDIUM CHARCOAL,TRIM1#
main74310-21100-B0i199912
main74310-21110-B0i199912
MEDIUM CHARCOAL,TRIM2#
74320VISOR ASSY, LH
main74320-21050-B1i199708-199912
MEDIUM CHARCOAL,TRIM1#
main74320-21060-B1i199708-199912
MEDIUM CHARCOAL,TRIM1#
main74320-21110-B0i199912
main74320-21120-B0i199912
MEDIUM CHARCOAL,TRIM2#
74348BHOLDER, VISOR, RH
main74348-22020-B9i199708-199912
MD.CHARCOAL,TRIM1#
74348CHOLDER, VISOR, LH
main74348-22020-B9i199708-199912
MD.CHARCOAL,TRIM1#
74610AGRIP SUB-ASSY, ASSIST
main74610-21010-B0×2i199708-199912
MD.CHARCOAL,TRIM1#
74612COVER, ASSIST GRIP
main74612-22050-B7×6i199708-199912
MD.CHARCOAL,TRIM1#
74620BGRIP ASSY, ASSIST, REAR
main74610-21020-B0i199708-199912
MD.CHARCOAL,TRIM1#
74631BHOOK, COAT
main74631-33020-B2i199708-199912
MD. CHACOAL,TRIM1#
6777321010
main67773-21010
9016440103
main90164-40103
9046805047
main90468-05047
9338116040
main93381-16040
9353045020
main93530-45020

19 parts on this diagram · 1 diagram in section

ARMREST & VISOR for Toyota CALDINA

This section contains 19 genuine Toyota parts for the ARMREST & VISOR system of the Toyota CALDINA. Key components include: ARMREST ASSY, FRONT, RH, ARMREST ASSY, FRONT, LH, PANEL, FRONT ARMREST BASE, UPPER RH, PANEL, FRONT ARMREST BASE, UPPER LH, ARMREST ASSY, REAR RH.
