Toyota CALDINA — AIR BAG

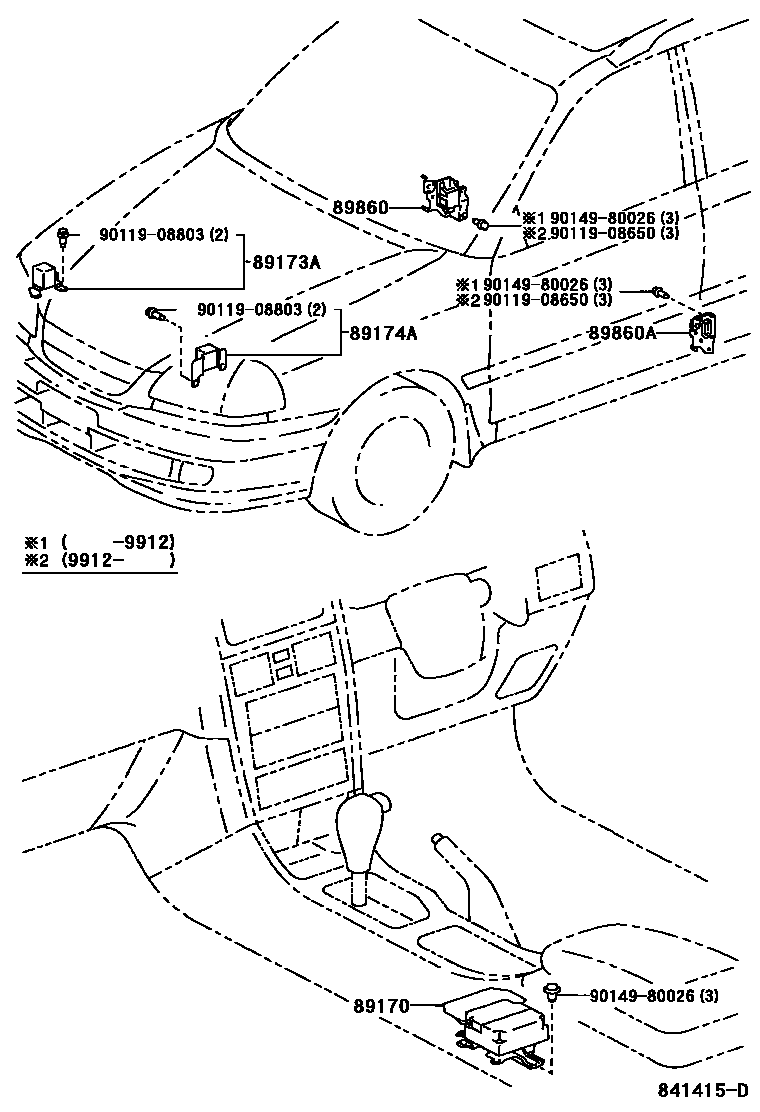

Parts diagram

89170SENSOR ASSY, AIRBAG

main89170-21010i199708-199806

main89170-21011i199806-199912

main89170-21020i199708-199806

main89170-21021i199806-199912

main89170-21040i199912

main89170-21050i199912

89173ASENSOR, AIRBAG, FRONT RH

main89173-29095i199708-199806

main89173-49195i199806

89174ASENSOR, AIRBAG, FRONT LH

main89173-29105i199708-199806

main89173-49205i199806

89860SENSOR ASSY, SIDE AIRBAG, RH

main89860-21010i199708-199912

main89860-21020i199912

89860ASENSOR ASSY, SIDE AIRBAG, LH

main89830-21010i199708-199912

main89830-21020i199912

9011908650

main90119-08650

9011908803

main90119-08803

9014980026

main90149-80026

8 parts on this diagram · 1 diagram in section

AIR BAG for Toyota CALDINA

This section contains 8 genuine Toyota parts for the AIR BAG system of the Toyota CALDINA. Key components include: SENSOR ASSY, AIRBAG, SENSOR, AIRBAG, FRONT RH, SENSOR, AIRBAG, FRONT LH, SENSOR ASSY, SIDE AIRBAG, RH, SENSOR ASSY, SIDE AIRBAG, LH.
