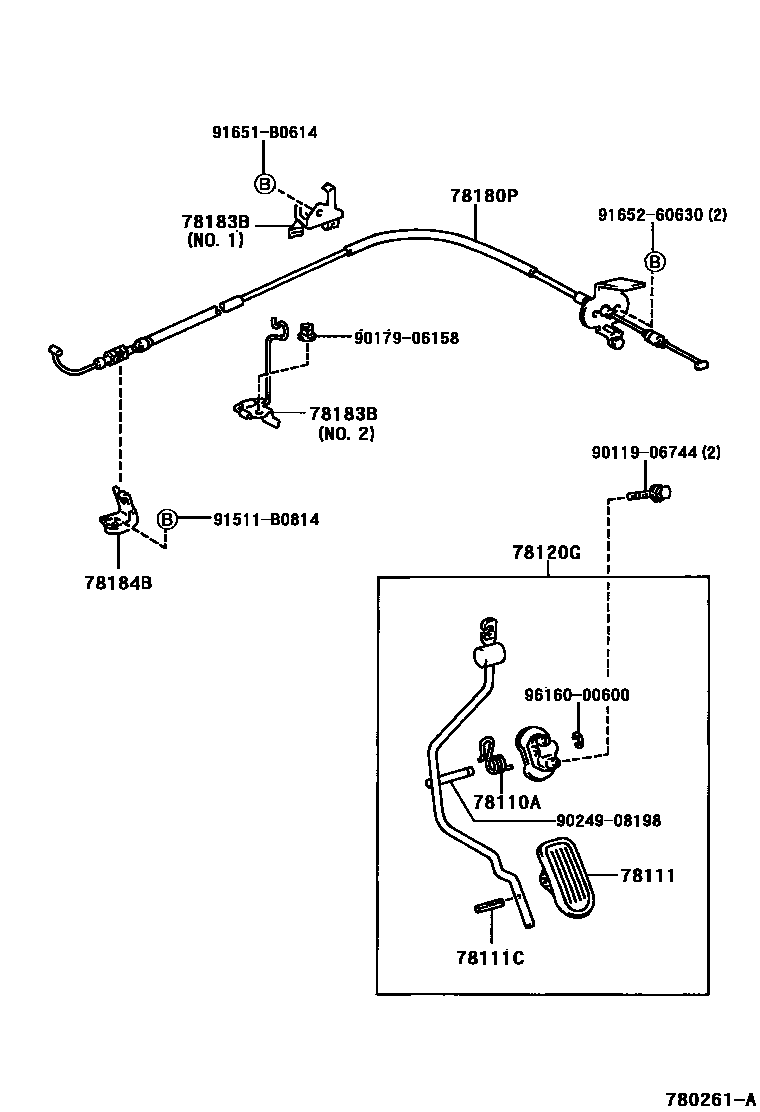

Toyota CALDINA — ACCELERATOR LINK

0001 1 0002 1 0003 1 0004 1 0005 1

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90508-18048iST21#..GT199708

main90508-26054iST215..5F..(E,G)199708

main90959-03102iST215..5F..GTT;AT211,ST210..E,G;ST215..4FC..(E,G,GTT)199708

78111PEDAL, ACCELERATOR

main78111-20060iAT211,CT216,ST21#199708-200209

main78111-33020iST21#..GT200206-200209

78111CPIN (FOR ACCELERATOR PEDAL)

main90254-04019iAT211,ST21#199708

78120GROD ASSY, ACCELERATOR PEDAL

main78120-20670iST21#..GT199708

main78120-20680iST215..5F..(E,G)199708

main78120-20690iST215..5F..GTT;AT211,ST210..E,G;ST215..4FC..(E,G,GTT)199708

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-21080iST215..GTT199708

main78180-21090iCT216199708

main78180-21100iST21#..GT199708

main78180-2D540iAT211199708

main78180-2D680iST21#..E,G199708

78183BCLAMP, ACCELERATOR CONTROL CABLE

main78183-20170iAT211199708

main78183-20220iAT211199708

main78183-21010iST215..GTT199708

78184BBRACKET, ACCELERATOR CONTROL CABLE

main78184-20290iAT211199708

9011906744

main90119-06744

9017906158

main90179-06158

9024908198

main90249-08198

91511B0814

main91511-B0814

91651B0614

main91651-B0614

9165260630

main91652-60630

9616000600

main96160-00600

14 parts on this diagram · 5 diagrams in section
