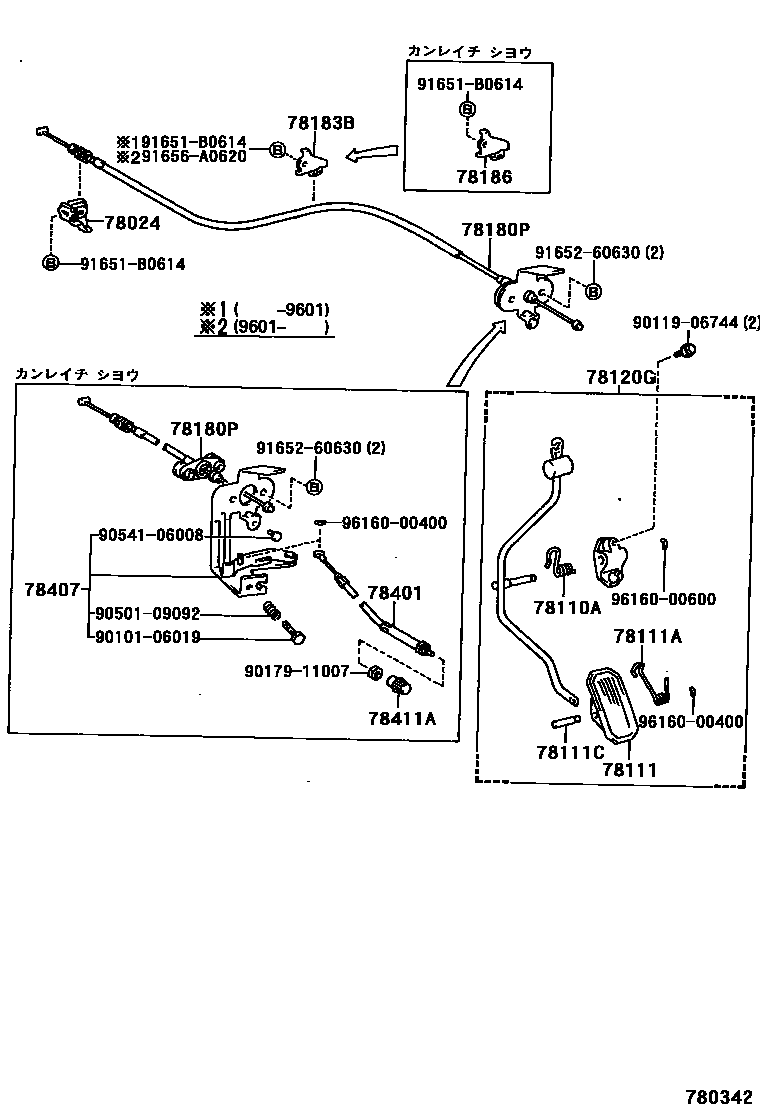

Toyota CALDINA — ACCELERATOR LINK
78024BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78110ASPRING (FOR ACCELERATOR PEDAL ROD)
78111PEDAL, ACCELERATOR
78111ASPRING (FOR ACCELERATOR PEDAL)
78111CPIN (FOR ACCELERATOR PEDAL)
78120GROD ASSY, ACCELERATOR PEDAL
78180PCABLE ASSY, ACCELERATOR CONTROL
78183BCLAMP, ACCELERATOR CONTROL CABLE
78186SUPPORT, ACCELERATOR CONTROL CABLE, NO.1
78401CABLE SUB-ASSY, THROTTLE CONTROL
78407ARM SUB-ASSY, THROTTLE CONTROL
78411AKNOB, THROTTLE CONTROL CABLE
9010106019
main90101-06019
9011906744
main90119-06744
9017911007
main90179-11007
9050109092
main90501-09092
9054106008
main90541-06008
91651B0614
main91651-B0614
9165260630
main91652-60630
91656A0620
main91656-A0620
9616000400
main96160-00400
9616000600
main96160-00600
22 parts on this diagram · 7 diagrams in section
ACCELERATOR LINK for Toyota CALDINA
This section contains 37 genuine Toyota parts for the ACCELERATOR LINK system of the Toyota CALDINA. Key components include: PEDAL ASSY, ACCELERATOR, BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE, SPRING (FOR ACCELERATOR PEDAL ROD), PEDAL, ACCELERATOR, SPRING (FOR ACCELERATOR PEDAL).
