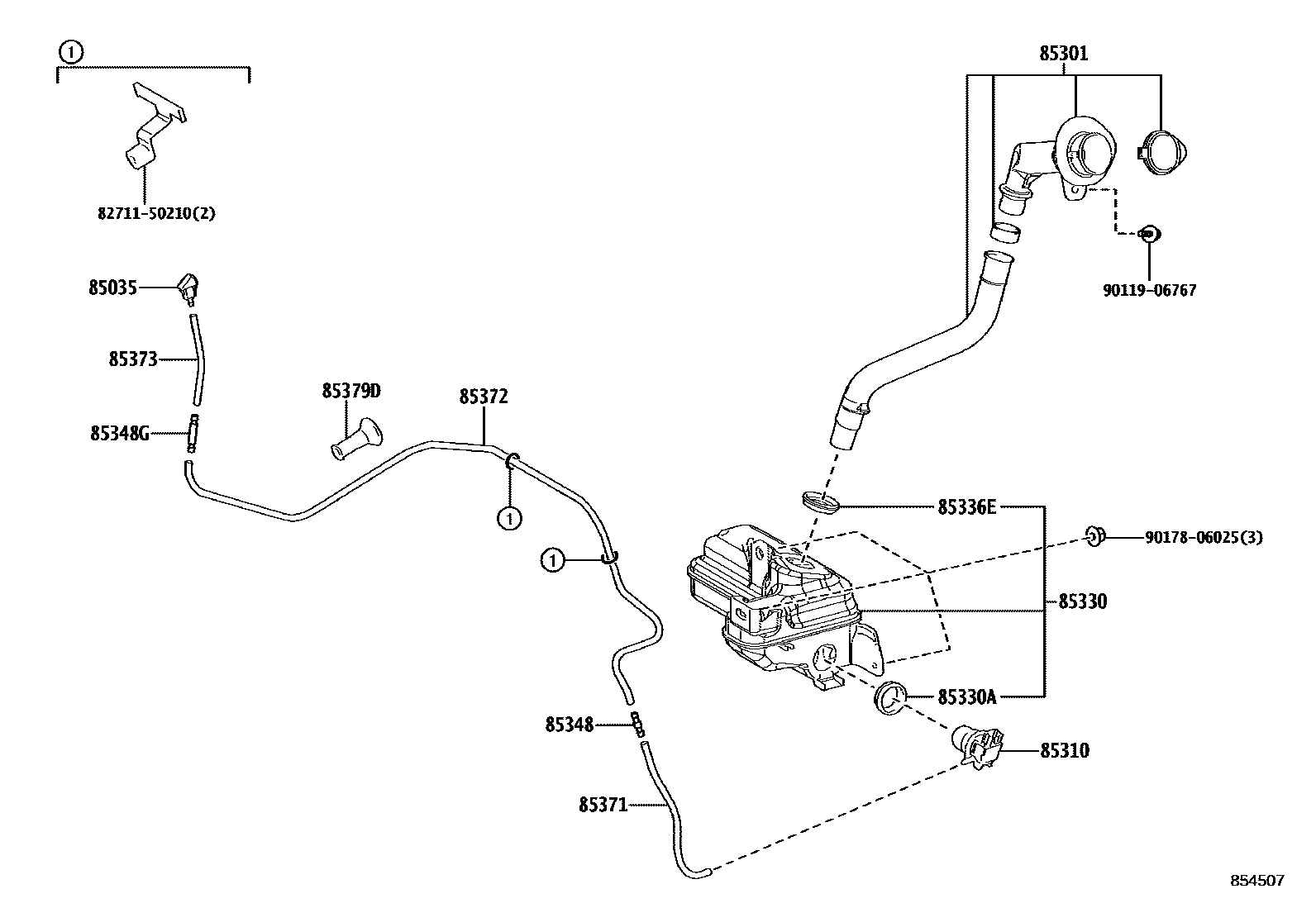

Toyota C+POD — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-55010iRMV1#202012

85301INLET SUB-ASSY, WASHER

main85301-55010iRMV1#202012

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-21010iRMV1#202012

85330JAR ASSY, WINDSHIELD WASHER

main85315-55080iRMV1#202012

85330ABUSH, WINDSHIELD WASHER JAR

main85336-60300iRMV1#202012

85336EPACKING, WINDSHIELD WASHER INLET HOSE

main85336-30160iRMV1#202012

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122iRMV1#202012

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85349-32150iRMV1#202012

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90446-07001iRMV1#202012

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90446-07001iRMV1#202012

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080iRMV1#202012

85379DGROMMET, WASHER, A

main85379-12850iRMV1#202012

8271150210WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-50210

9011906767

main90119-06767

9017806025

main90178-06025

15 parts on this diagram · 1 diagram in section
