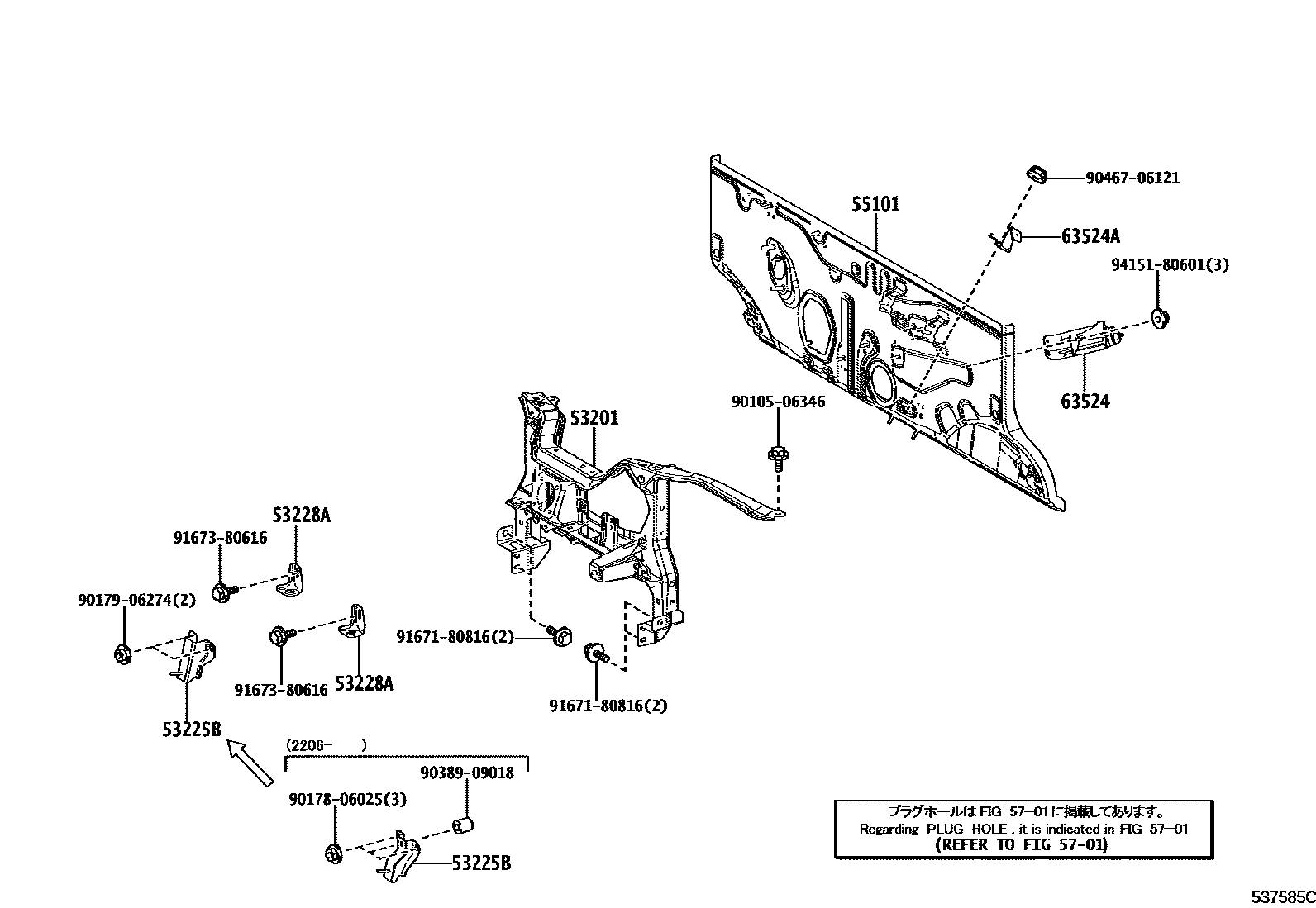

Toyota C+POD — FRONT FENDER APRON & DASH PANEL

53201SUPPORT SUB-ASSY, RADIATOR

main53201-55010iRMV1#202012

53225BBRACKET, RADIATOR GRILLE MOUNTING, NO.3

main53225-55010iRMV1#..G202012-202206

sub90178-06025

main53225-55011iRMV1#..G202206

53228ABRACKET, RADIATOR MOUNTING, LOWER NO.1

main53228-55010×2iRMV1#..G202012

55101PANEL SUB-ASSY, DASH

main55101-55040iRMV1#202012

5701

63524BRACKET, AIR CONDITIONER MOUNTING, NO.1

main63524-55020iRMV1#202012

63524ABRACKET, AIR CONDITIONER MOUNTING, NO.2

main63524-55030iRMV1#202012

9010506346

main90105-06346

9017806025

main90178-06025

9017906274

main90179-06274

9038909018

main90389-09018

9046706121

main90467-06121

9167180816

main91671-80816

9167380616

main91673-80616

9415180601

main94151-80601

15 parts on this diagram · 1 diagram in section
