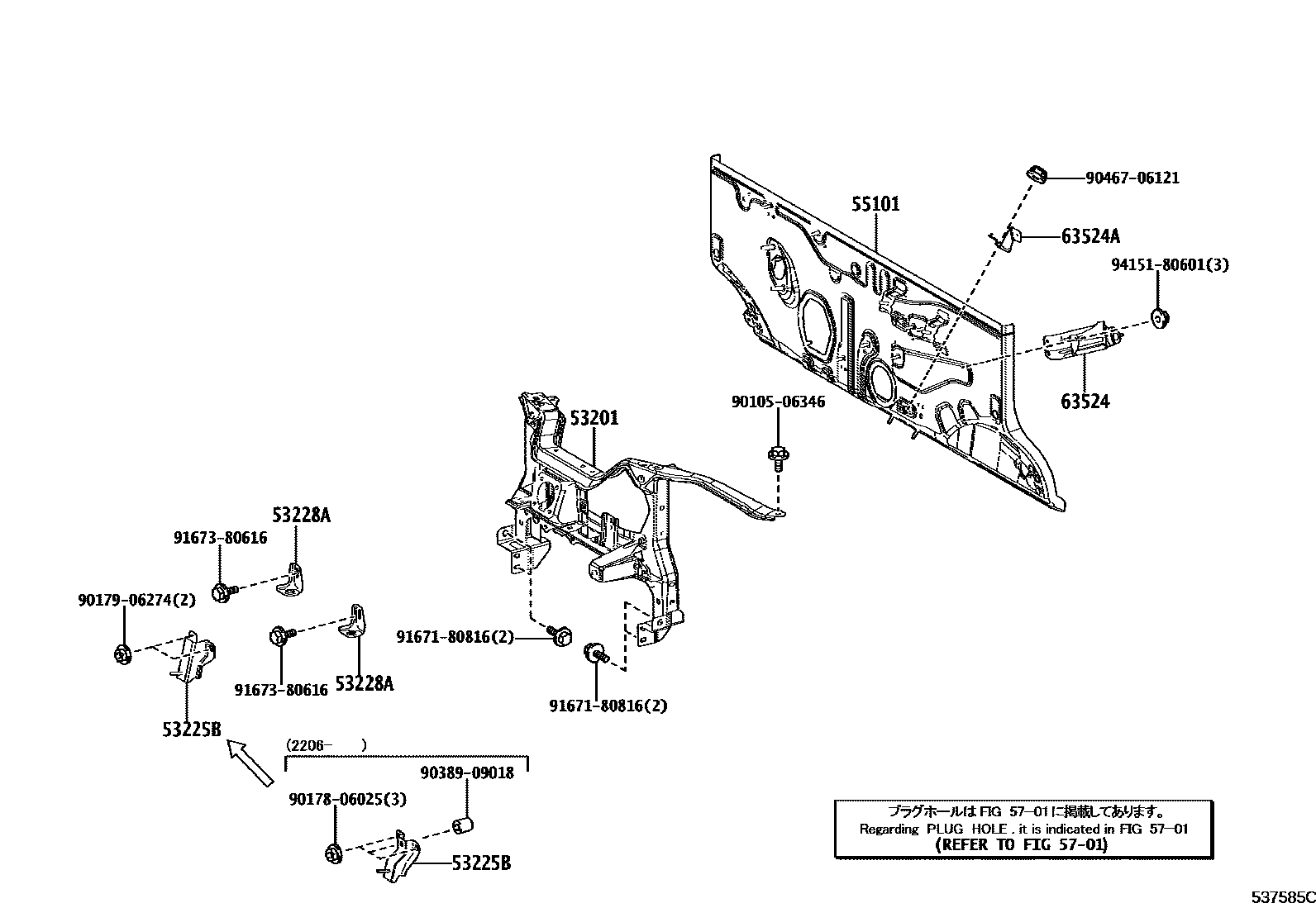

Toyota C+POD — FRONT FENDER APRON & DASH PANEL
53201SUPPORT SUB-ASSY, RADIATOR
53225BBRACKET, RADIATOR GRILLE MOUNTING, NO.3
53228ABRACKET, RADIATOR MOUNTING, LOWER NO.1
55101PANEL SUB-ASSY, DASH
5701HOLE PLUG
63524BRACKET, AIR CONDITIONER MOUNTING, NO.1
63524ABRACKET, AIR CONDITIONER MOUNTING, NO.2
9010506346
main90105-06346
9017806025
main90178-06025
9017906274
main90179-06274
9038909018
main90389-09018
9046706121
main90467-06121
9167180816
main91671-80816
9167380616
main91673-80616
9415180601
main94151-80601
15 parts on this diagram · 1 diagram in section
FRONT FENDER APRON & DASH PANEL for Toyota C+POD
This section contains 15 genuine Toyota parts for the FRONT FENDER APRON & DASH PANEL system of the Toyota C+POD. Key components include: SUPPORT SUB-ASSY, RADIATOR, BRACKET, RADIATOR GRILLE MOUNTING, NO.3, BRACKET, RADIATOR MOUNTING, LOWER NO.1, PANEL SUB-ASSY, DASH, HOLE PLUG.
