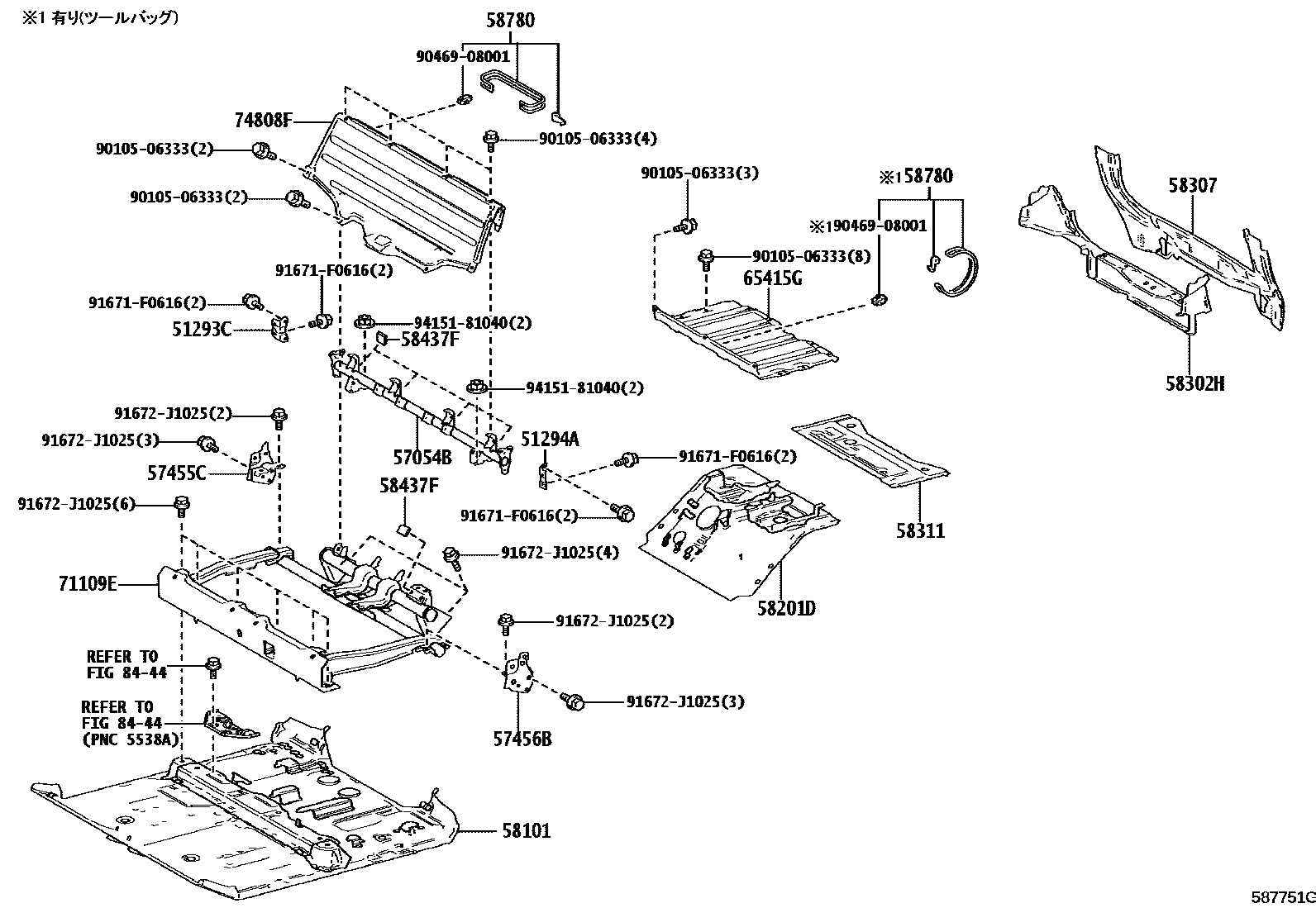

Toyota C+POD — FLOOR PAN & LOWER BACK PANEL

51293CEXTENSION, FRAME REAR CROSSMEMBER, RH

main61515-55010iRMV1#202012

51294AEXTENSION, FRAME REAR CROSSMEMBER, LH

main61515-55010iRMV1#202012

57054BREINFORCET SUB-ASSY, CROSSMEMBER FLOOR, NO.4

main61073-55010iRMV1#202012

57455CBRACKET, FRONT SEAT MOUNTING, OUTSIDE RH

main57455-55010iRMV1#202012

57456BBRACKET, FRONT SEAT MOUNTING, OUTSIDE LH

main57456-55010iRMV1#202012

58101PAN SUB-ASSY, FRONT FLOOR

main58101-55010iRMV1#202012

58201DPANEL SUB-ASSY, CENTER FLOOR

main58201-55010iRMV1#202012

58302HPANEL SUB-ASSY, LOWER BACK

main58302-55010iRMV1#202012

58307PANEL SUB-ASSY, BODY LOWER BACK

main58308-55010iRMV1#202012

58311PAN, REAR FLOOR

main58311-55010iRMV1#202012

58437FCUSHION

main55349-12130×5iRMV1#202012

58780BAND ASSY, TOOL BOX

main58780-26030supersedes 58780-28070iRMV1#202012

65415GPANEL, REAR BODY GUARD

main65415-55010iRMV1#202012

71109ELEG SUB-ASSY, FRONT SEAT

main71109-55010iRMV1#202012

74808FSEPARATOR SUB-ASSY, REAR

main74808-55010iRMV1#202012

8444

9010506333

main90105-06333

9046908001

main90469-08001

91671F0616

main91671-F0616

91672J1025

main91672-J1025

9415181040

main94151-81040

21 parts on this diagram · 1 diagram in section
