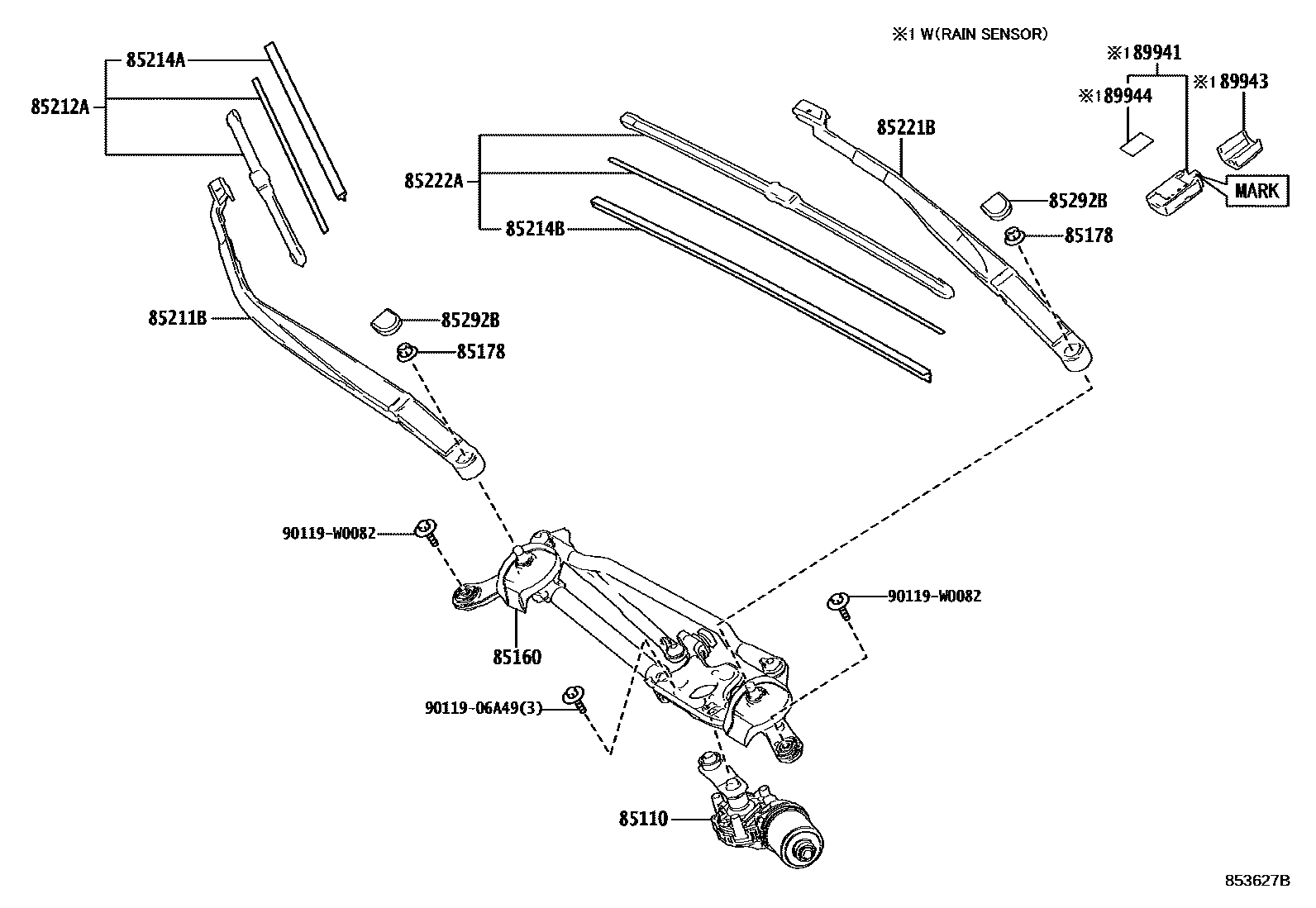

Toyota C-HR — WINDSHIELD WIPER
85110MOTOR ASSY, WINDSHIELD WIPER
85160LINK ASSY, WINDSHIELD WIPER
85178NUT (FOR FRONT WIPER ARM SETTING)
85211BARM, FRONT WIPER, RH
85212ABLADE, FR WIPER, RH
85214ARUBBER, WIPER, RH
85214BRUBBER, WIPER, LH
85221BARM, FRONT WIPER, LH
85222ABLADE, FR WIPER, LH
85292BCAP, FRONT WIPER ARM HEAD
89941SENSOR, RAIN
MARK=89941-F4010
89943COVER, RAIN SENSOR
89944TAPE, RAIN SENSOR
9011906A49
main90119-06A49
90119W0082
main90119-W0082
15 parts on this diagram · 2 diagrams in section
WINDSHIELD WIPER for Toyota C-HR
This section contains 15 genuine Toyota parts for the WINDSHIELD WIPER system of the Toyota C-HR. Key components include: MOTOR ASSY, WINDSHIELD WIPER, LINK ASSY, WINDSHIELD WIPER, NUT (FOR FRONT WIPER ARM SETTING), ARM, FRONT WIPER, RH, BLADE, FR WIPER, RH.
