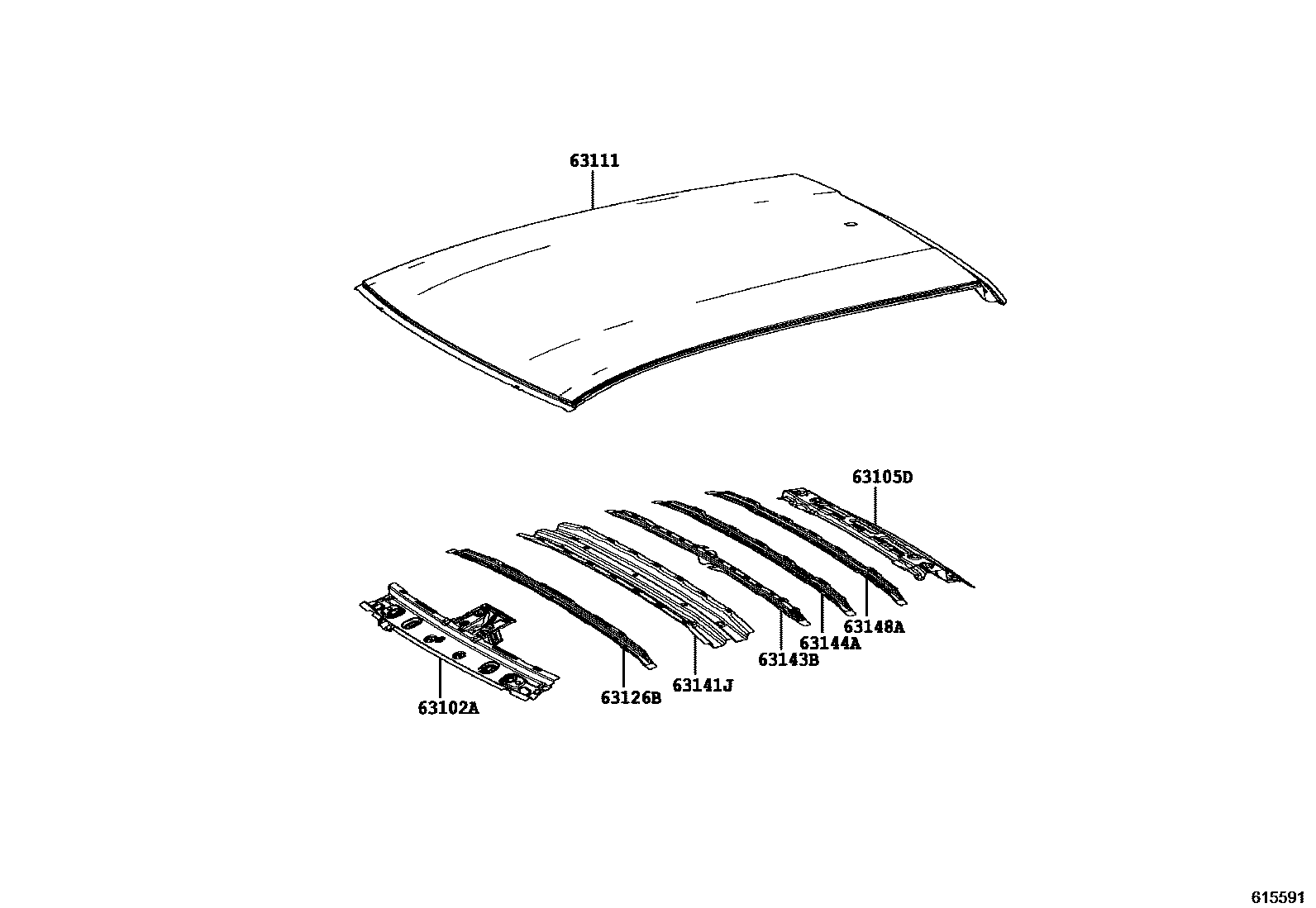

Toyota C-HR — ROOF PANEL & BACK WINDOW GLASS
63102APANEL SUB-ASSY, WINDSHIELD HEADER
63105DFRAME SUB-ASSY, BACK WINDOW, UPPER
63111PANEL, ROOF
63126BREINFORCEMENT, ROOF PANEL, REAR NO.2
63141JREINFORCEMENT, ROOF PANEL
63143BREINFORCEMENT, ROOF PANEL, NO.3
63144AREINFORCEMENT, ROOF PANEL, NO.4
63148AREINFORCEMENT, ROOF PANEL, NO.7
8 parts on this diagram · 1 diagram in section
ROOF PANEL & BACK WINDOW GLASS for Toyota C-HR
This section contains 8 genuine Toyota parts for the ROOF PANEL & BACK WINDOW GLASS system of the Toyota C-HR. Key components include: PANEL SUB-ASSY, WINDSHIELD HEADER, FRAME SUB-ASSY, BACK WINDOW, UPPER, PANEL, ROOF, REINFORCEMENT, ROOF PANEL, REAR NO.2, REINFORCEMENT, ROOF PANEL.
